Retractable Hard Top System

SYSTEM


RETRACTABLE HARD TOP SYSTEM : Fail-safe


FAIL-SAFE CONTROL BY DTC
Retractable hard top control unit performs fail-safe control when any DTC are detected.

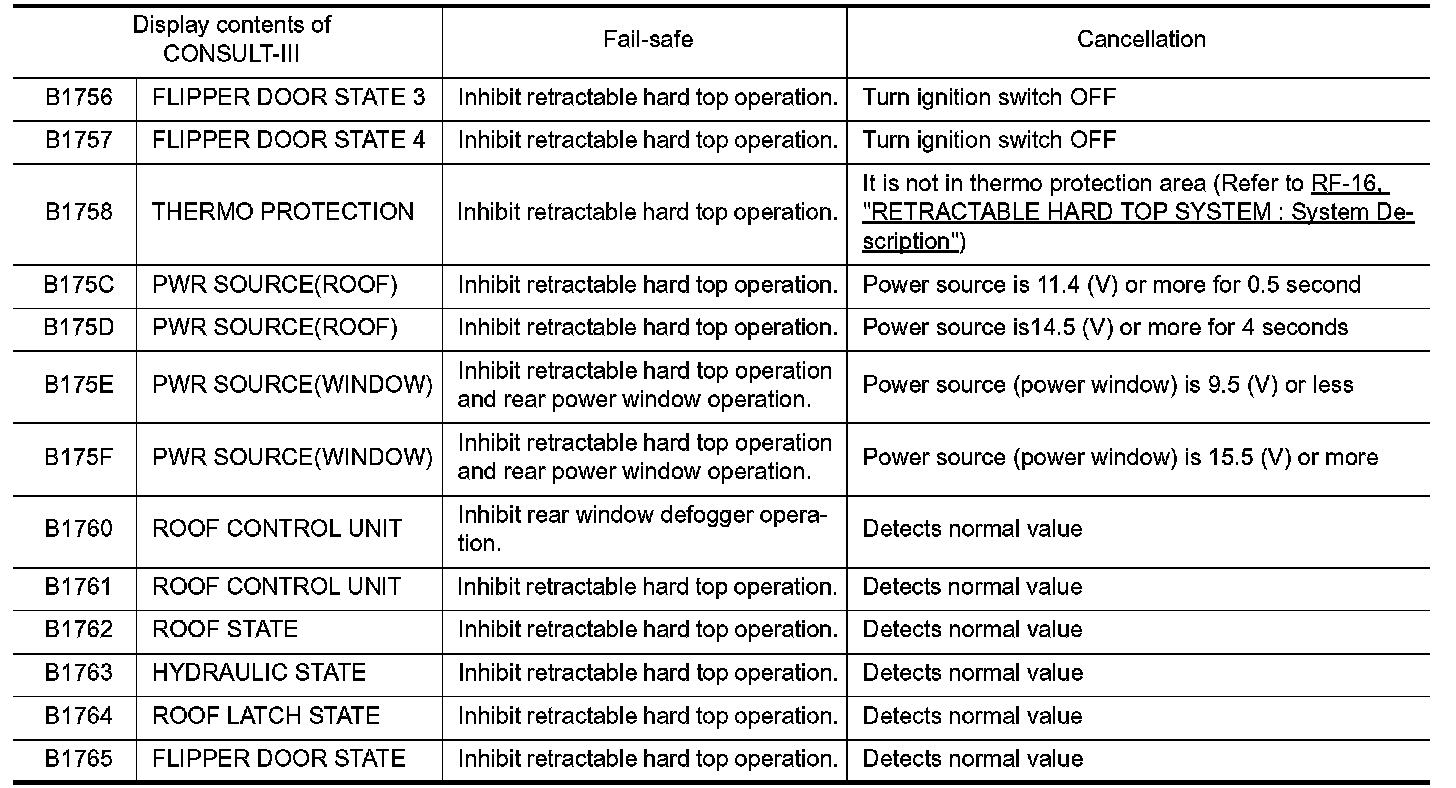

Fail-Safe Control By DTC (Part 1):

Fail-Safe Control By DTC (Part 2):

Fail-Safe Control By DTC (Part 3):
