Trunk Closure Sub-Control Unit
Trunk Closure Sub-Control Unit
TRUNK CLOSURE SUB-CONTROL UNIT
Reference Value
TERMINAL LAYOUT

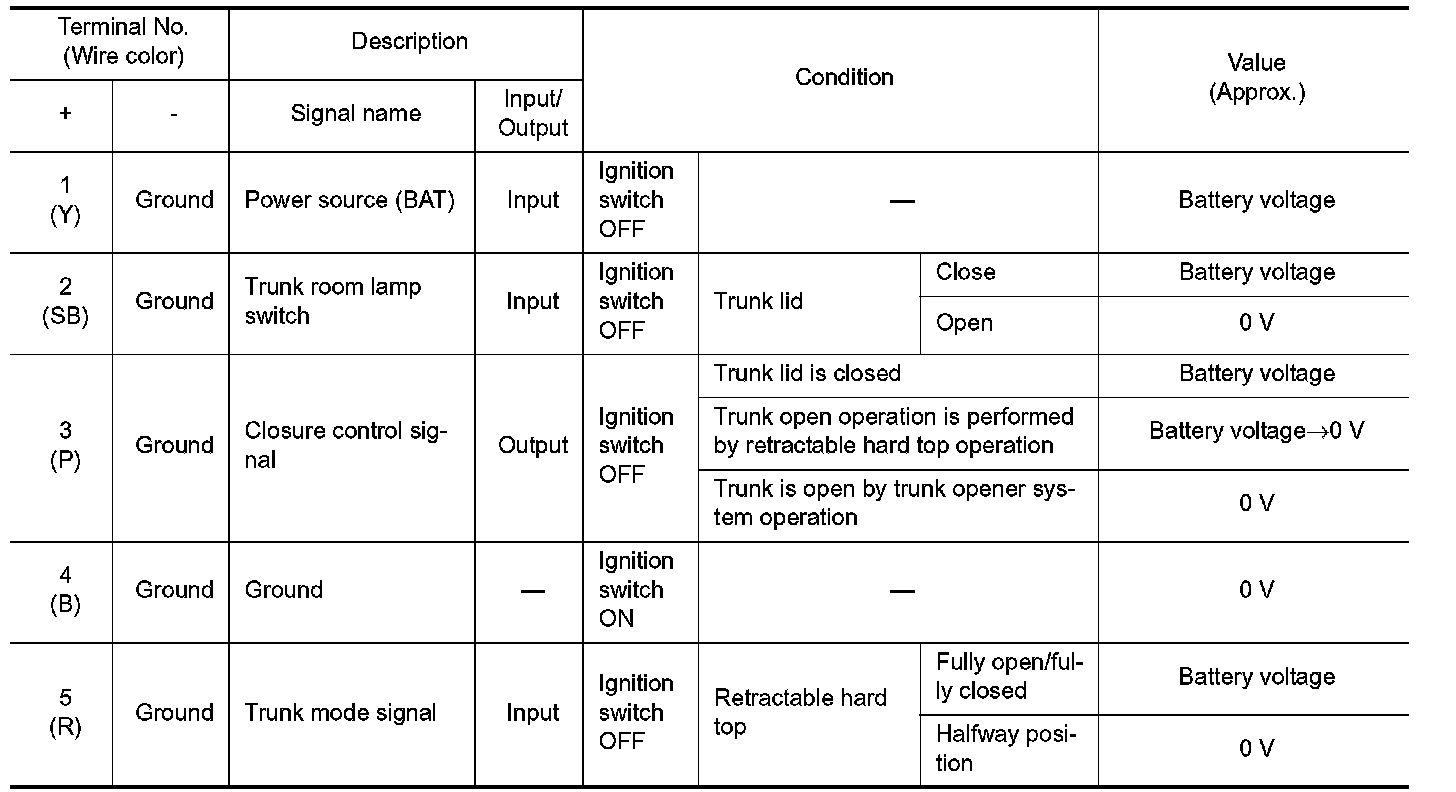

PHYSICAL VALUES
