Passenger Seat Control Unit
Passenger Seat Control Unit
PASSENGER SEAT CONTROL UNIT

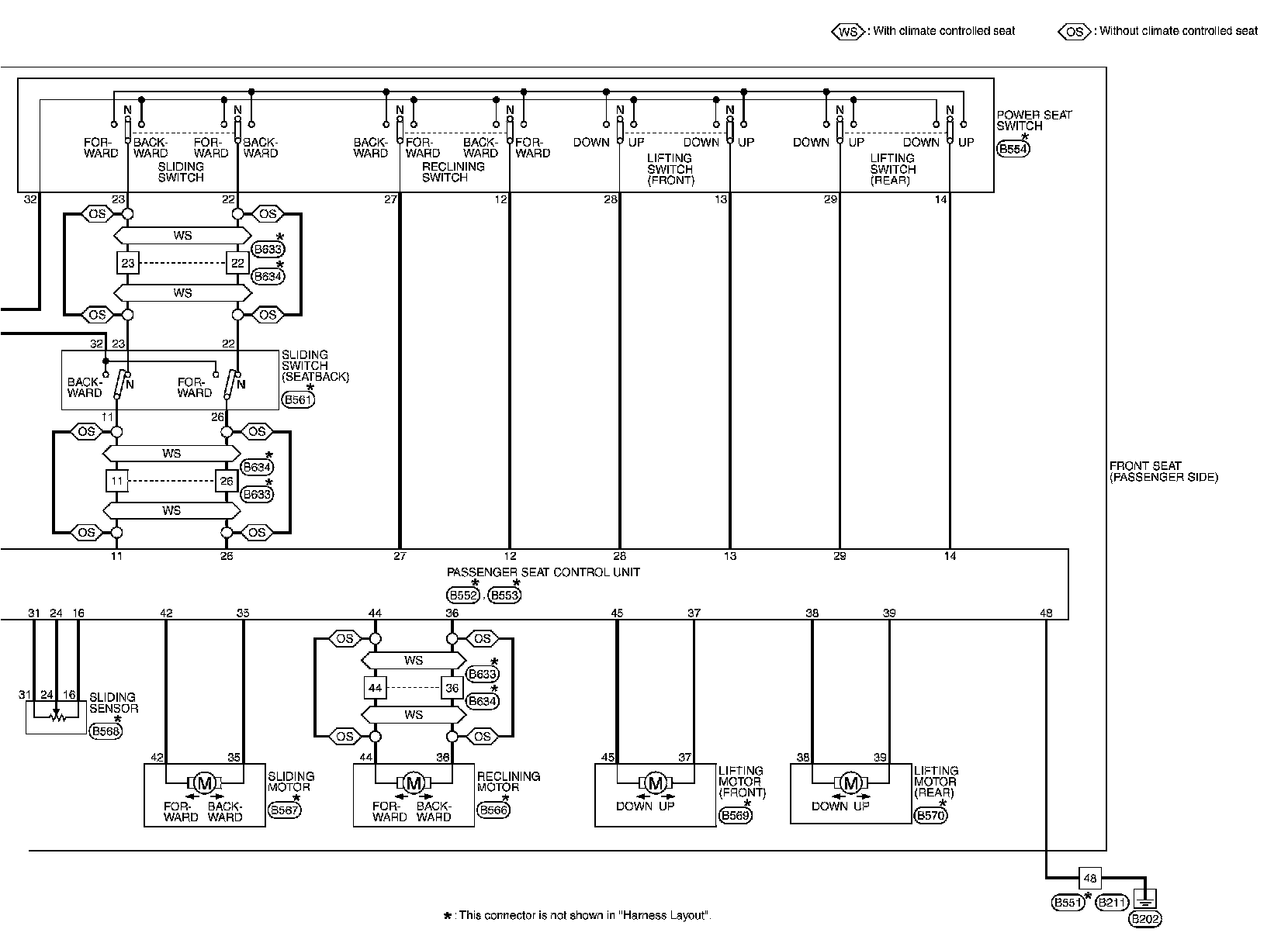

Wiring Diagram - POWER SEAT SYSTEM FOR PASSENGER SIDE -
