Home >> Infiniti >> 2010 >> G37 Coupe V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Heated Seat Control Unit

Heated Seat Control Unit





HEATED SEAT CONTROL UNIT

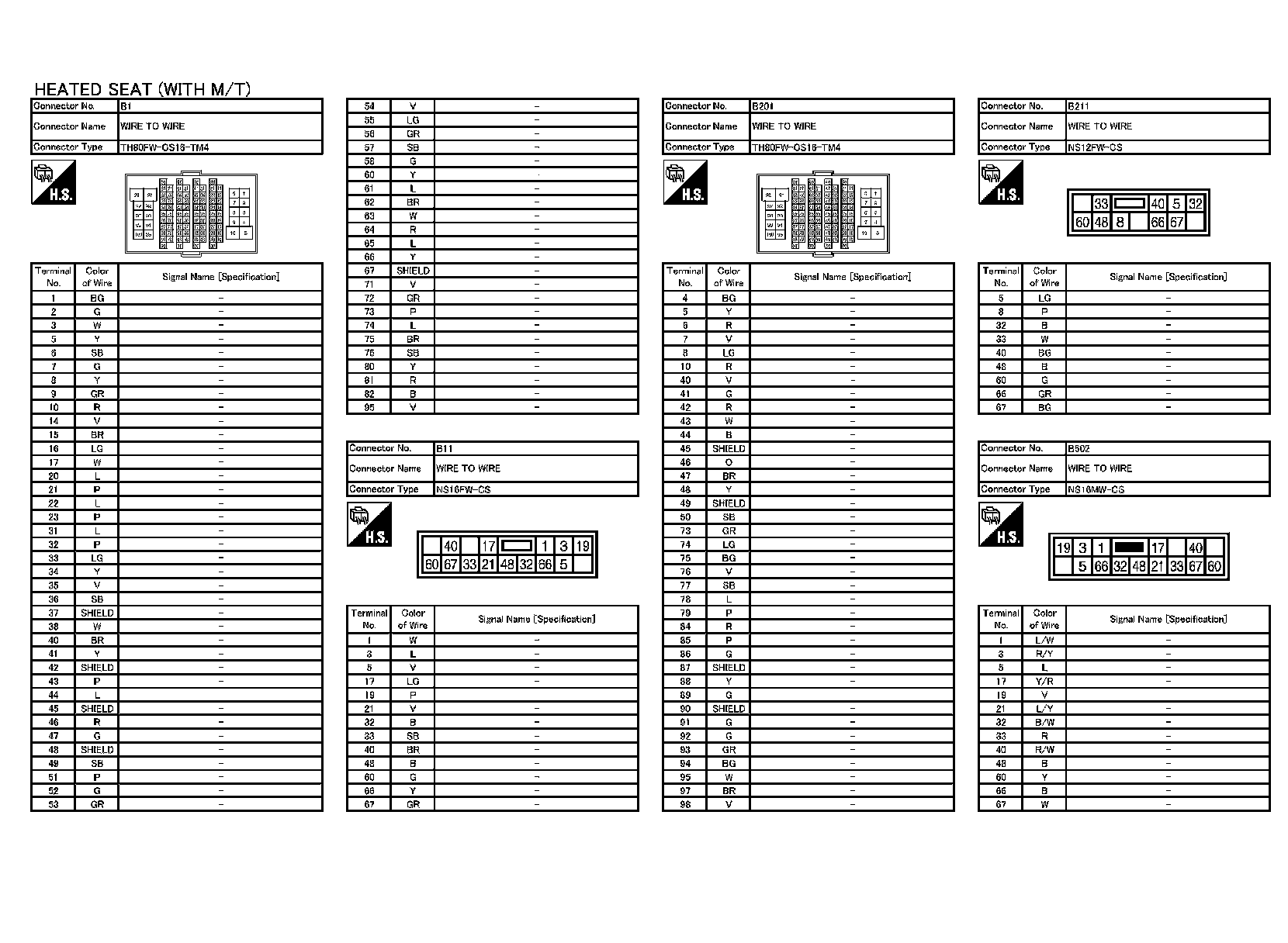

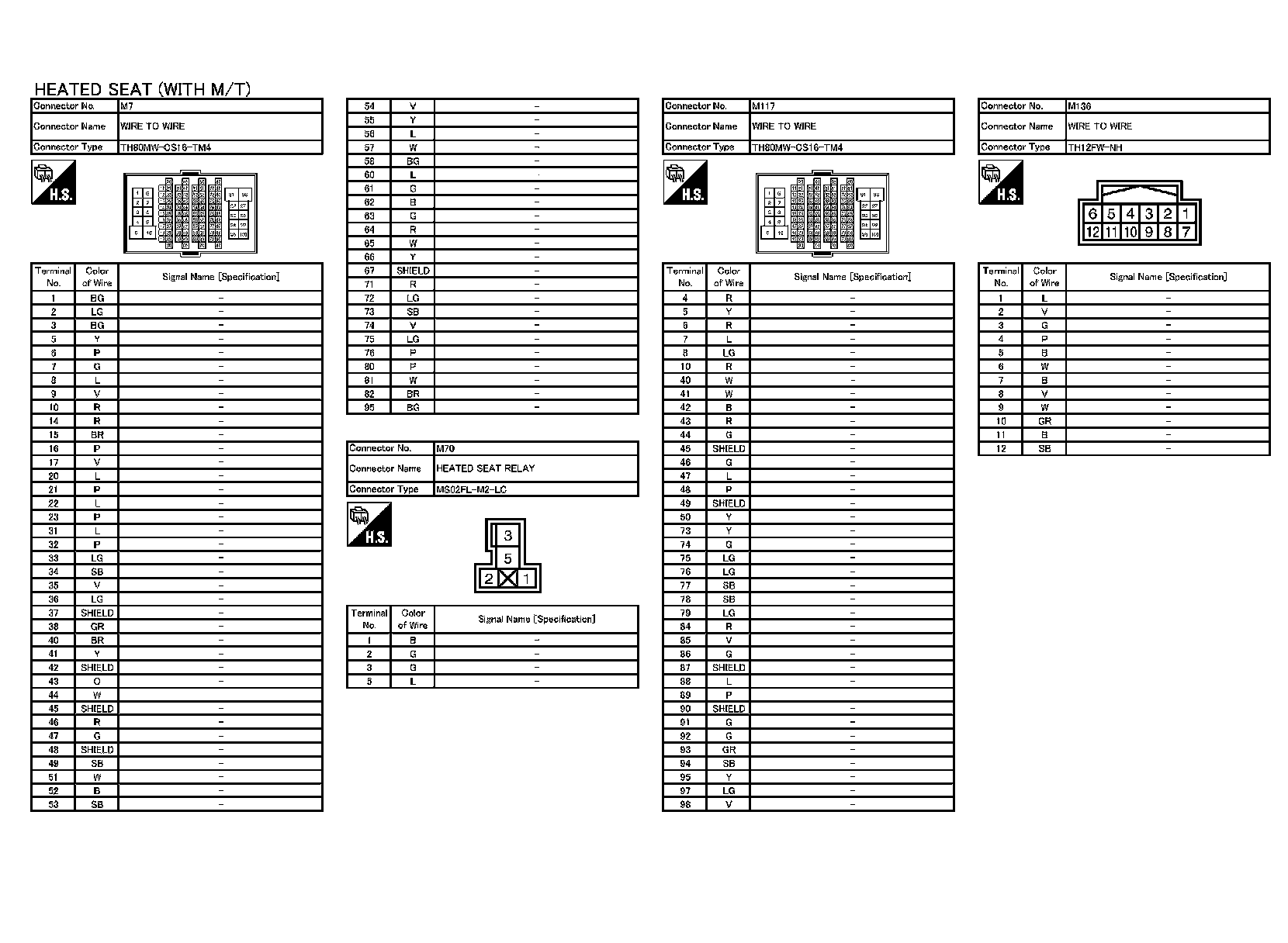

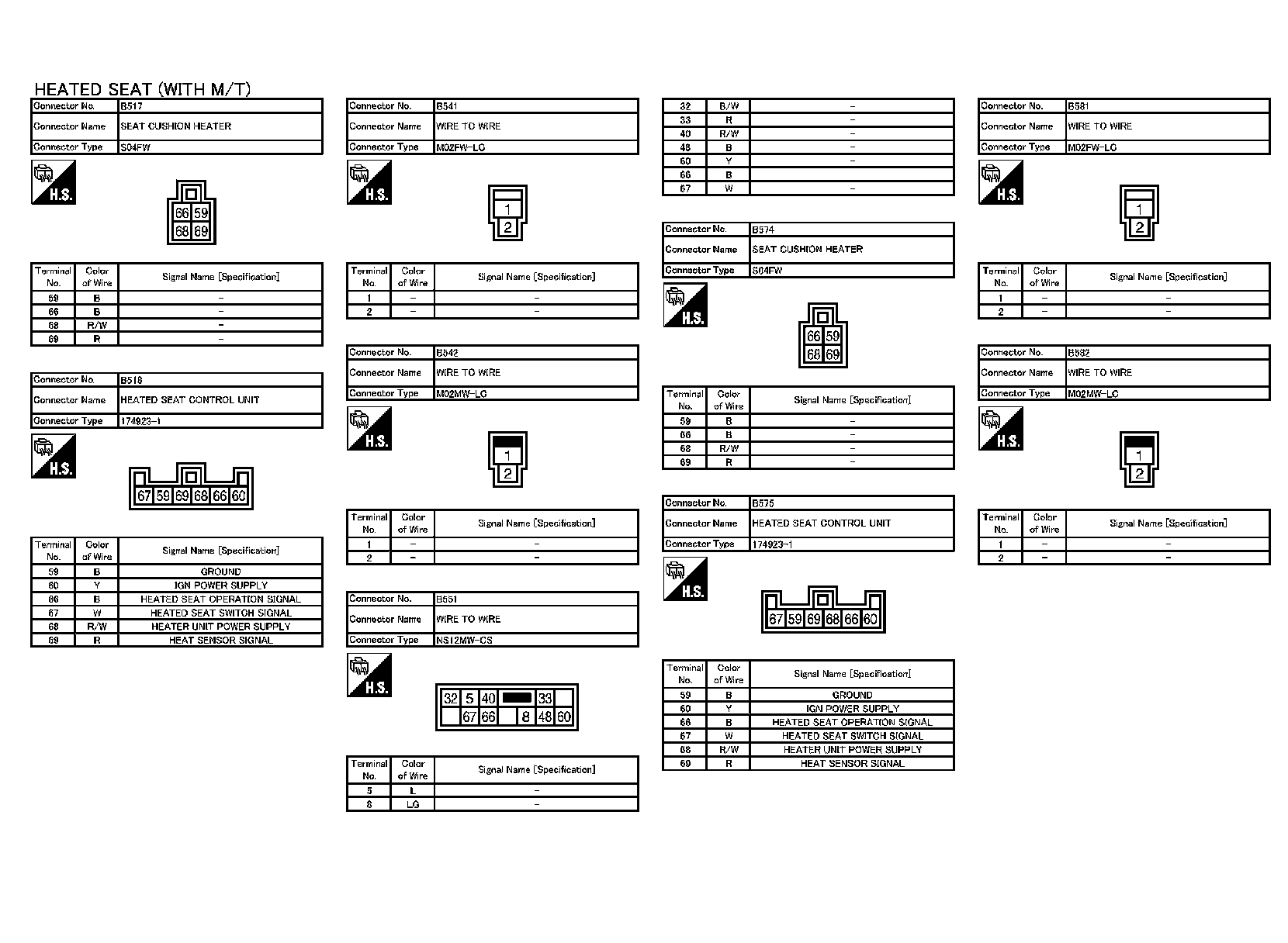

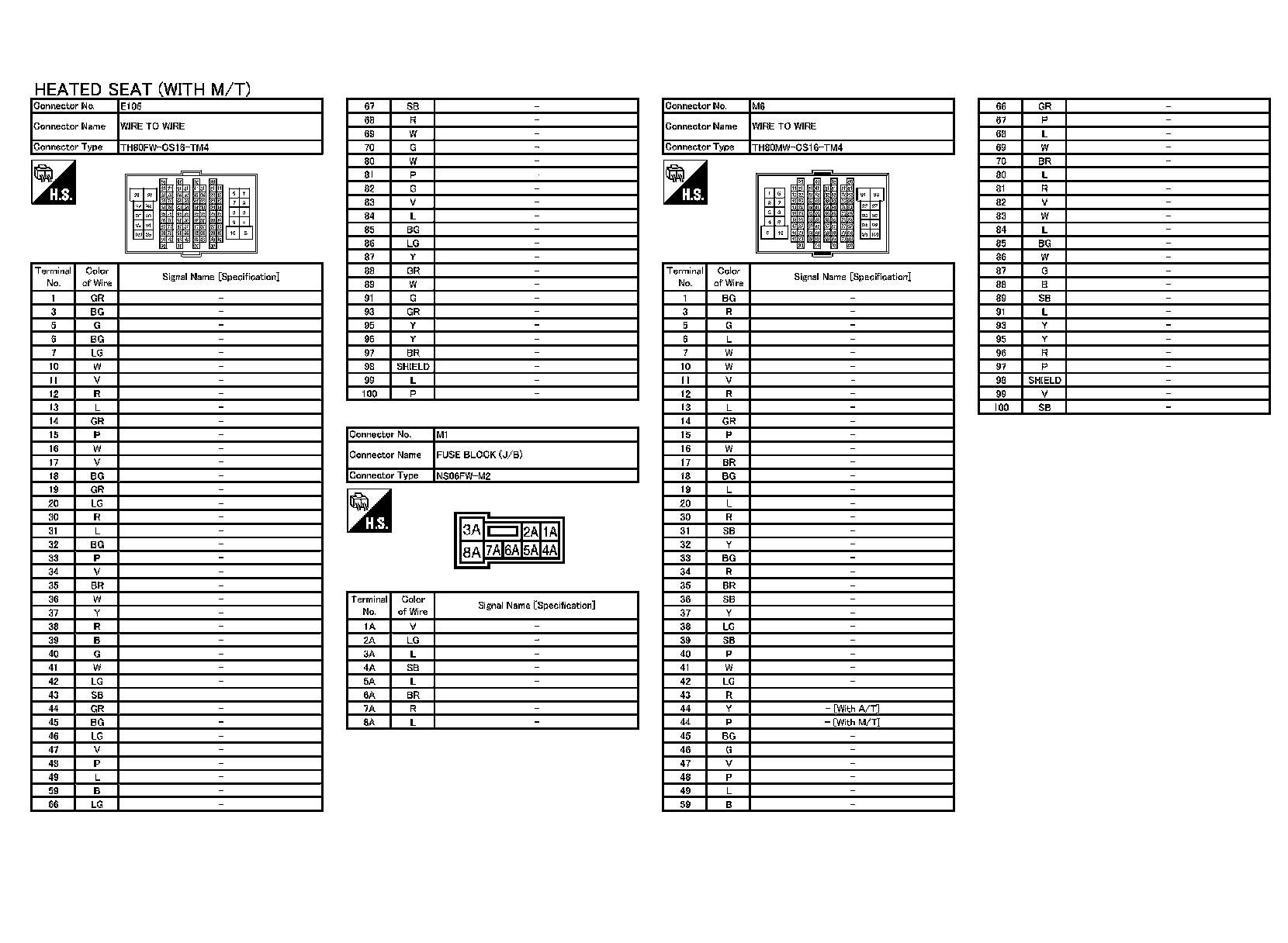

Wiring Diagram - HEATED SEAT SYSTEM (WITH M/T) -




































HEATED SEAT CONTROL UNIT

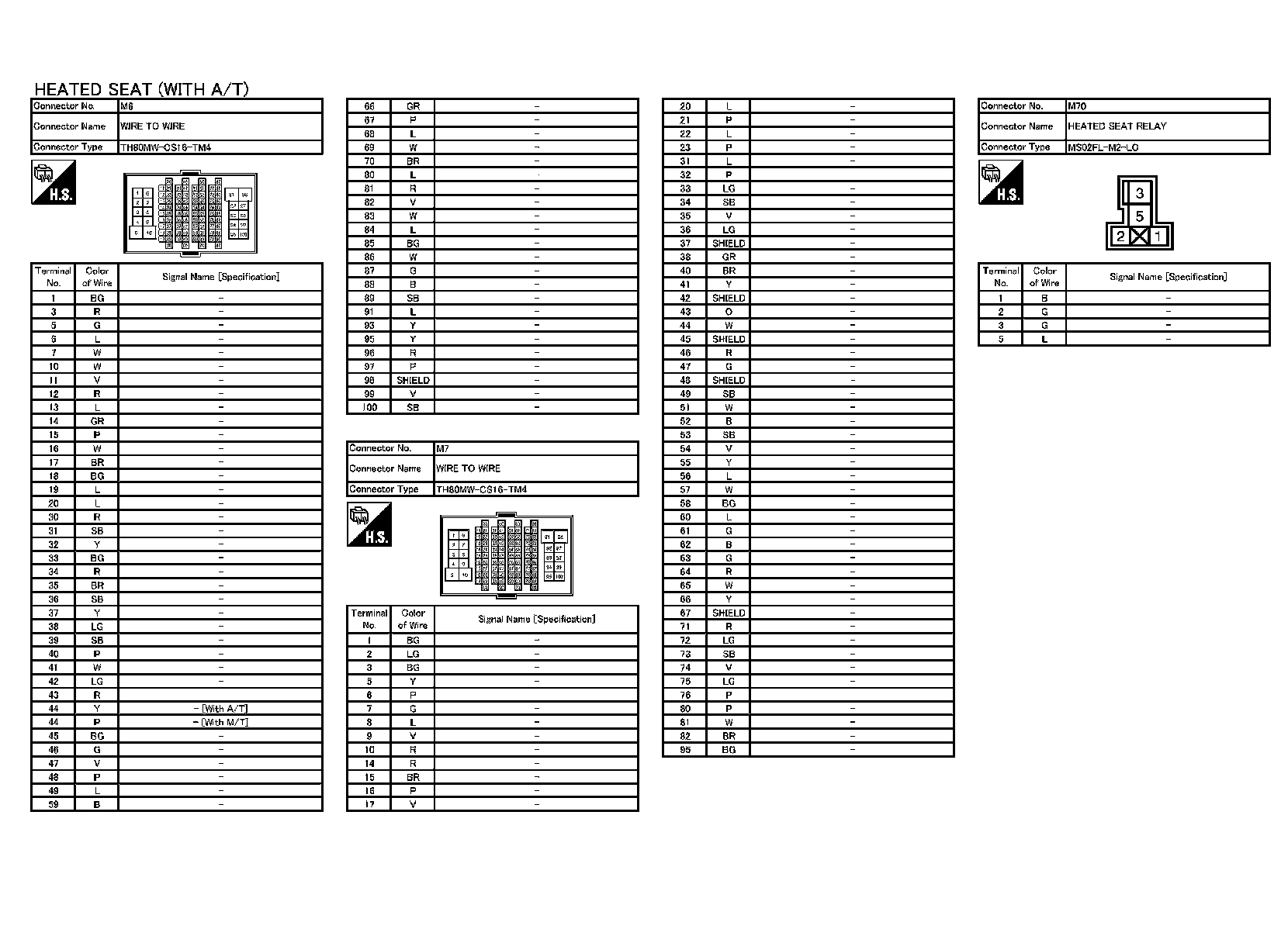

Wiring Diagram - HEATED SEAT SYSTEM (WITH A/T) -
