4WAS System





4WAS FRONT CONTROL UNIT

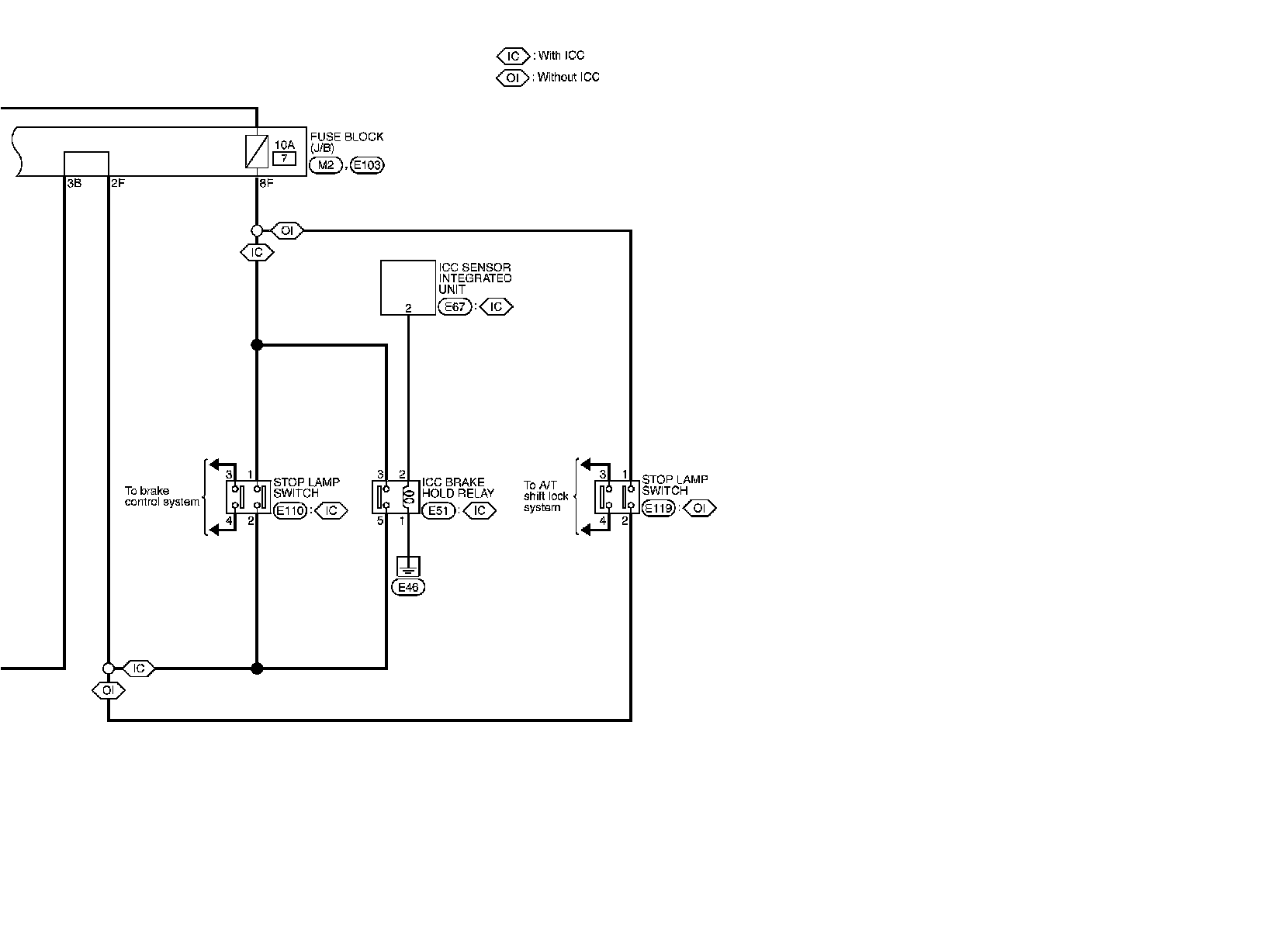

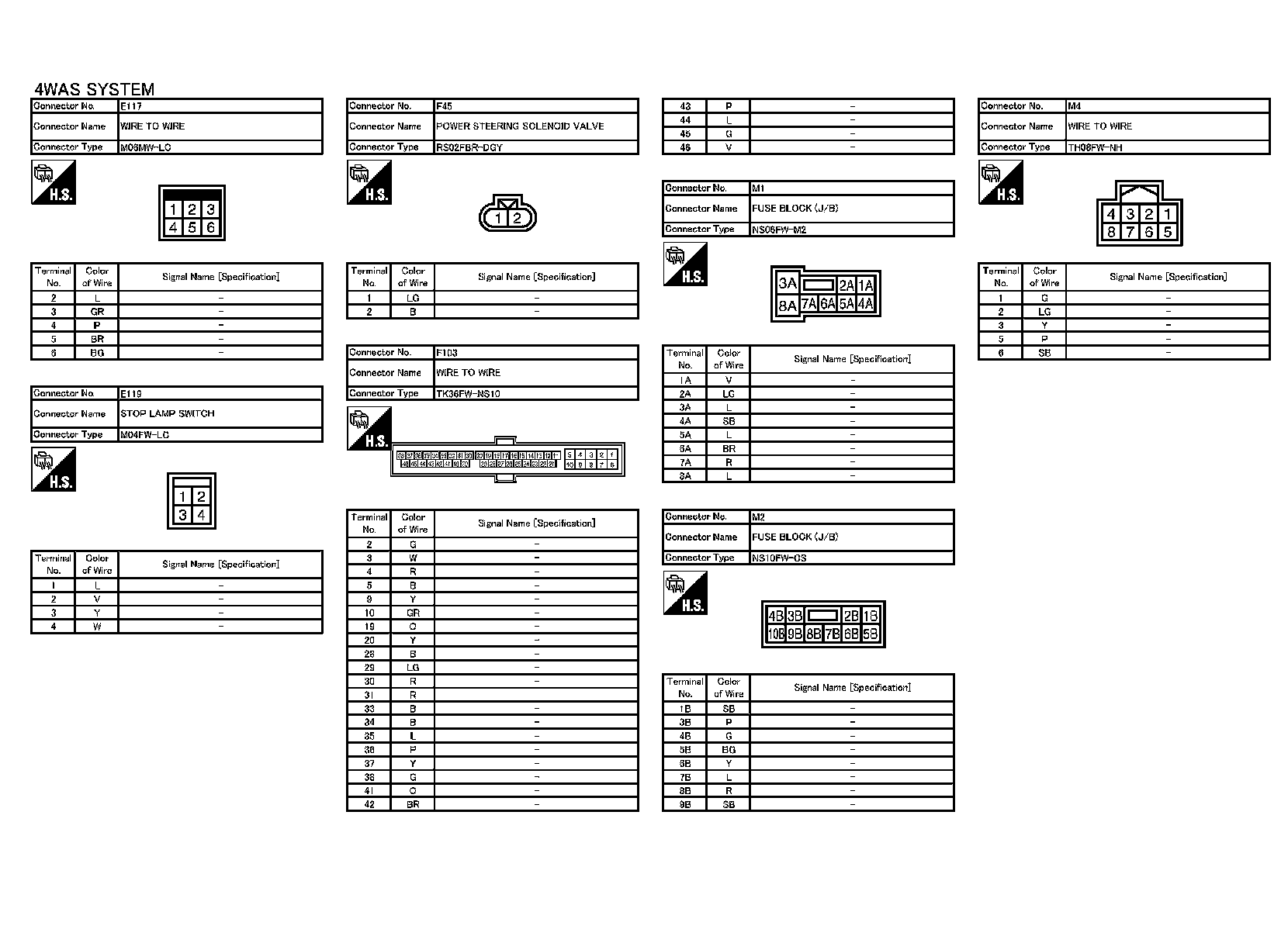

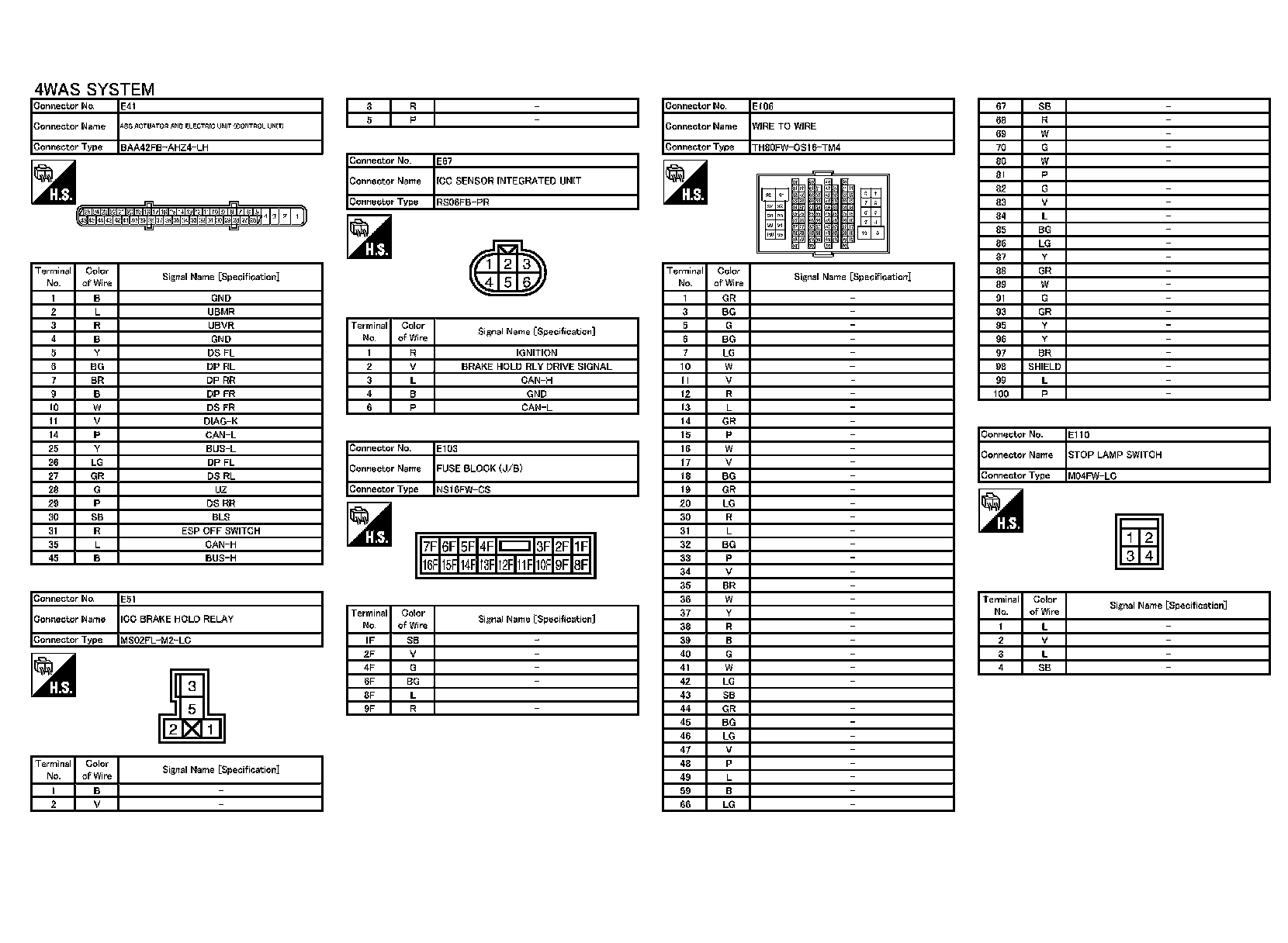

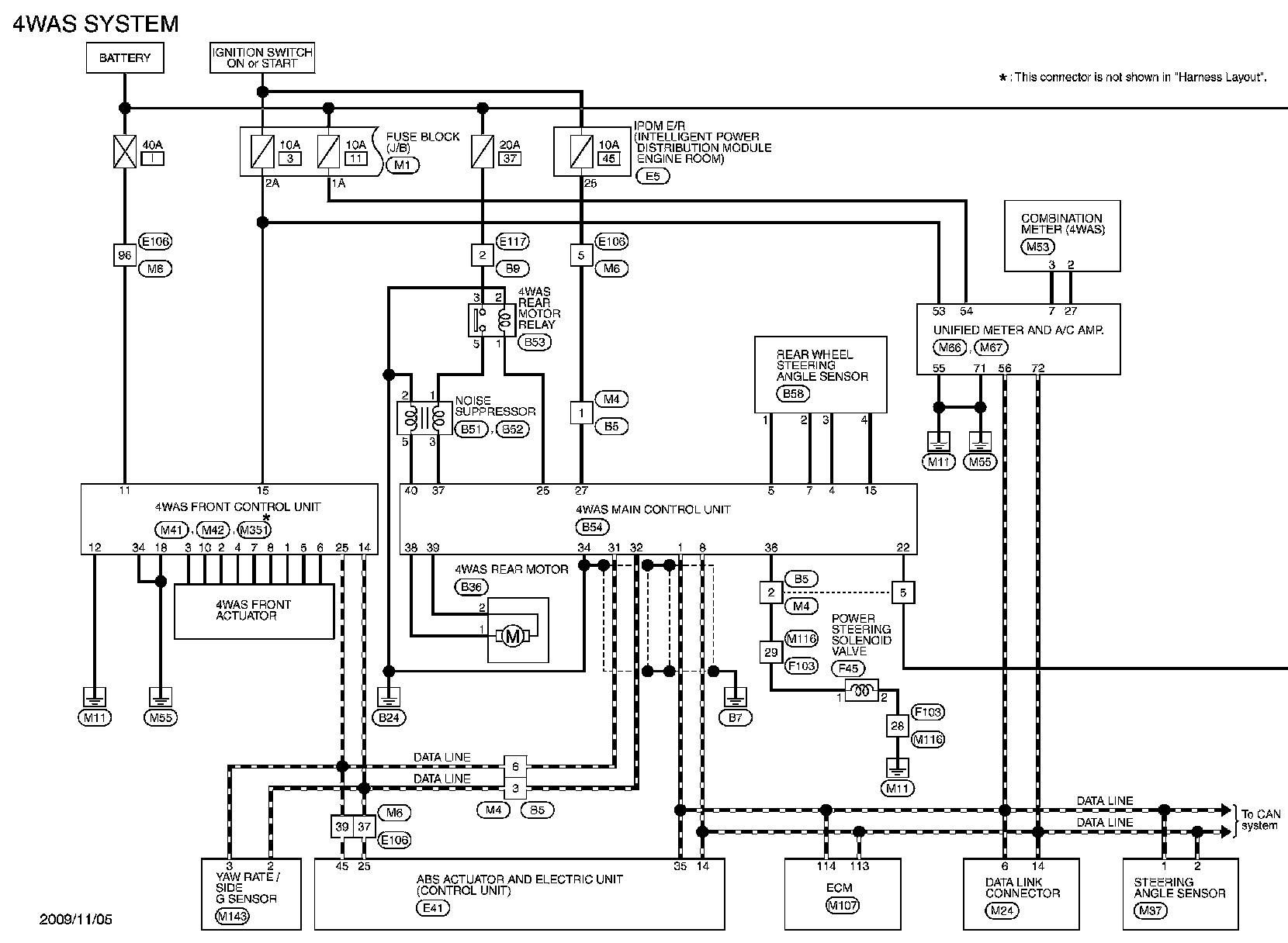

Wiring Diagram - 4WAS SYSTEM -









































4WAS MAIN CONTROL UNIT

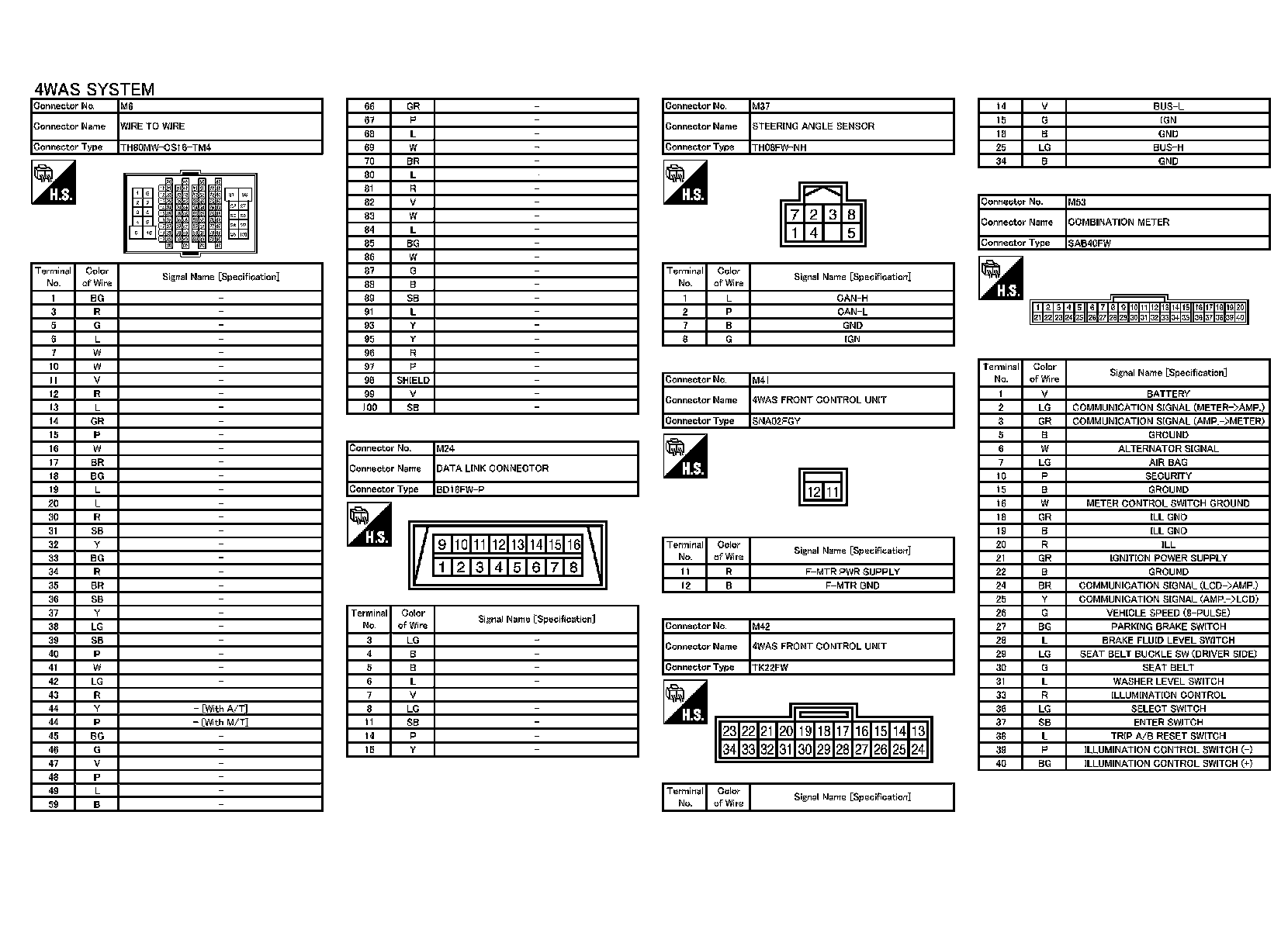

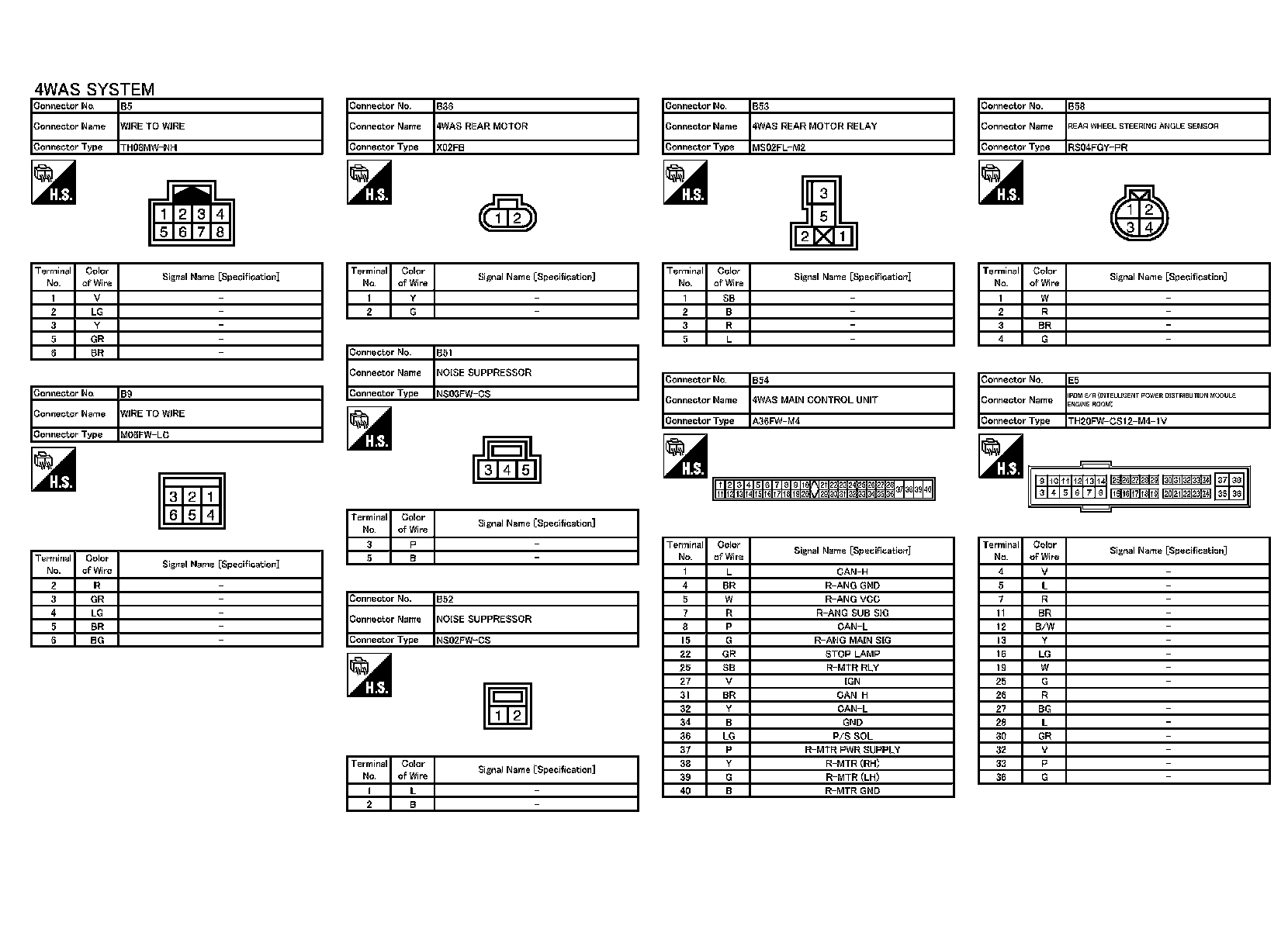

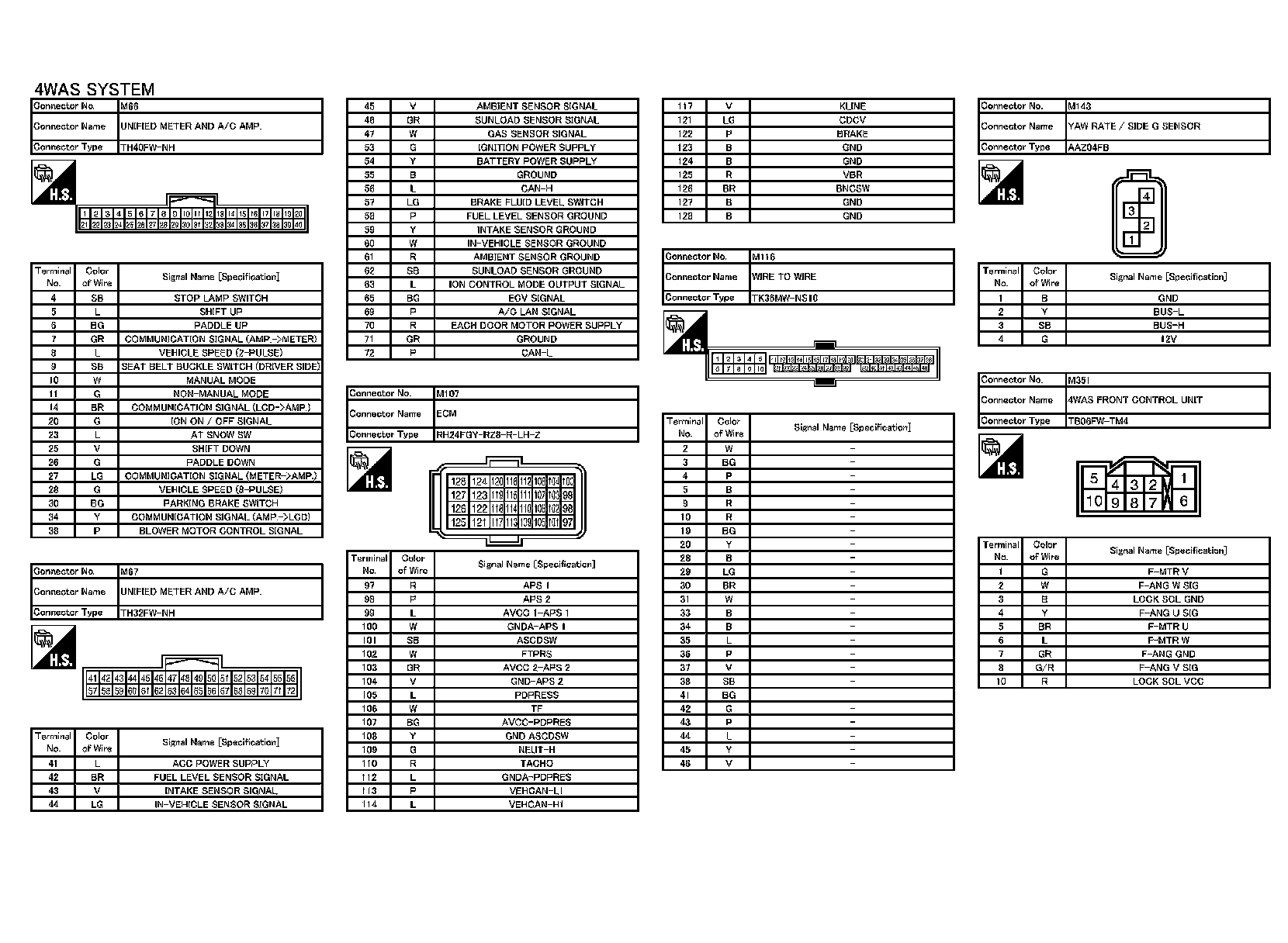

Wiring Diagram - 4WAS SYSTEM -
