Antenna Feeder
>>
Base Audio With Rear View Camera
Base Audio With Rear View Camera
ANTENNA FEEDER

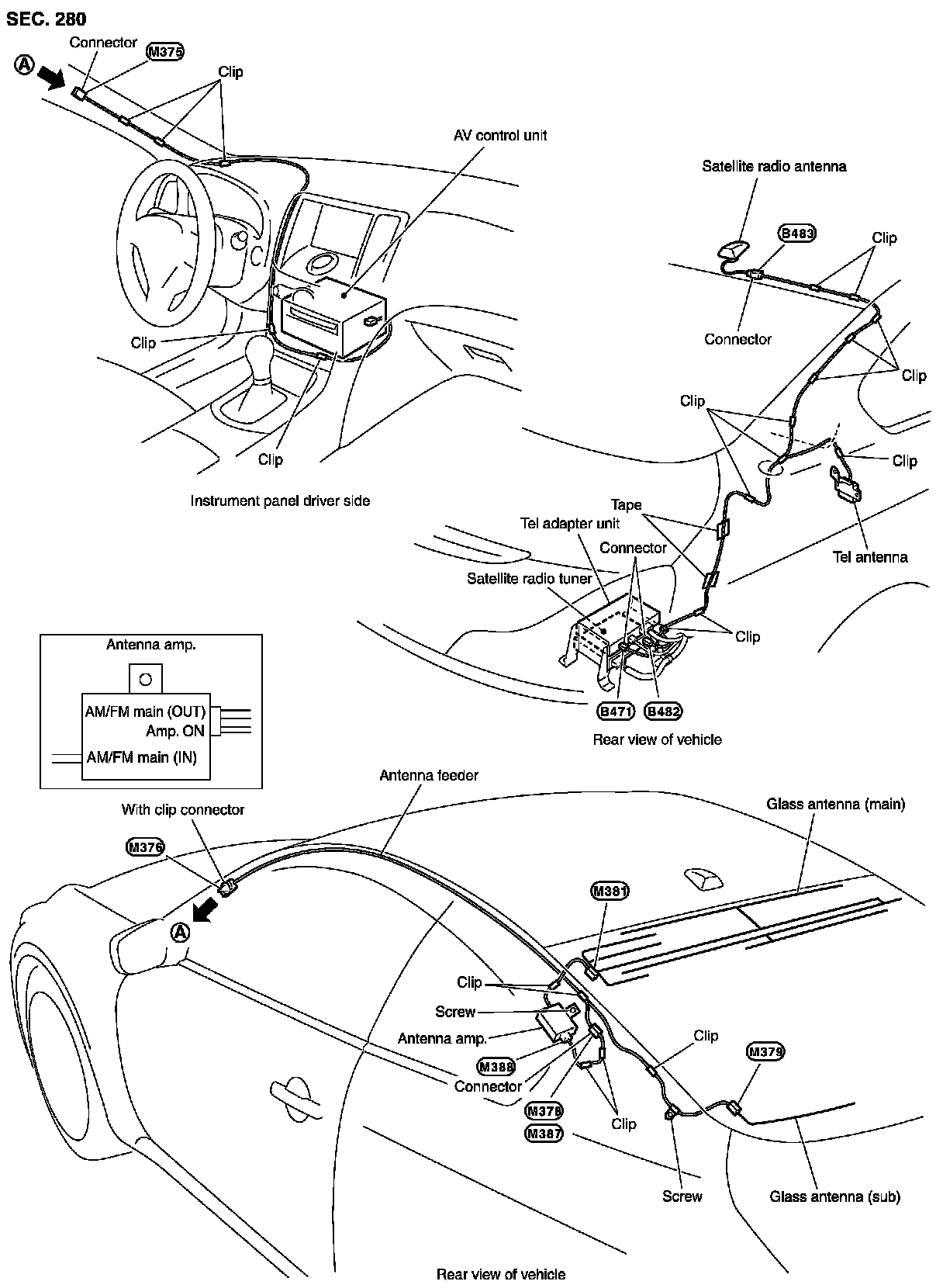

Feeder Layout
