Blower Unit

BLOWER UNIT


BLOWER UNIT : Removal and Installation


REMOVAL
1. Remove instrument lower panel RH. .





2. Disconnect ECM (1) connectors.
3. Remove mounting nuts (A), and then remove ECM with bracket attached.
4. Remove power steering control unit (WITHOUT 4WAS). Exploded View.
5. Disconnect intake door motor (2) connector and blower motor
(3) connector.
6. Remove mounting bolt (B) and screw (C), from blower unit (4).
7. Remove blower unit.

CAUTION:
Move blower unit rightward, and remove locating pin (1 part) and joint. Then remove blower unit downward.

INSTALLATION
Installation is basically the reverse order of removal.

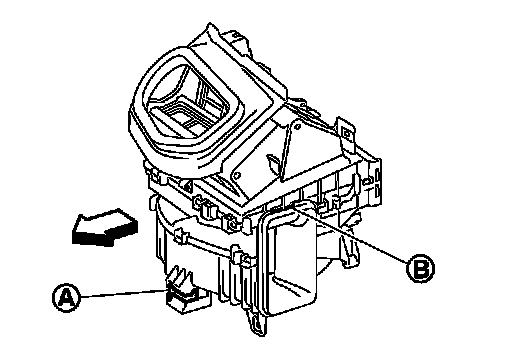

White arrow : Vehicle front

CAUTION:
Check locating pin (A) and joint (B) are securely inserted.
