Symptom Table





REFRIGERATION SYSTEM SYMPTOMS


Symptom Table

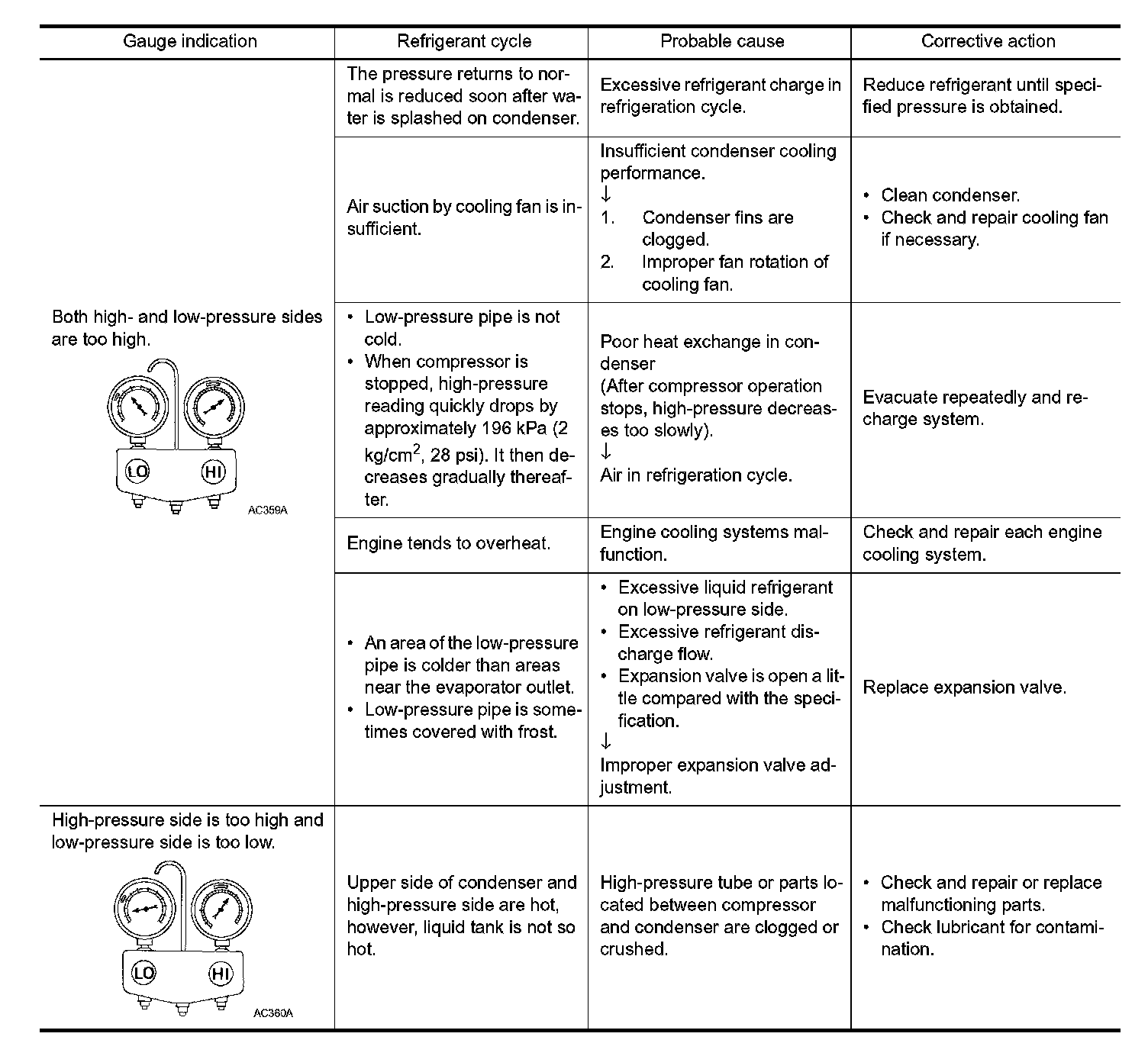

Symptom Table (Part 1):






Symptom Table (Part 2):






Symptom Table (Part 3):
