Rear Final Drive R200V

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING


NVH Troubleshooting Chart


M/T MODELS
Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.

NVH Troubleshooting Chart:

A/T MODELS
Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.

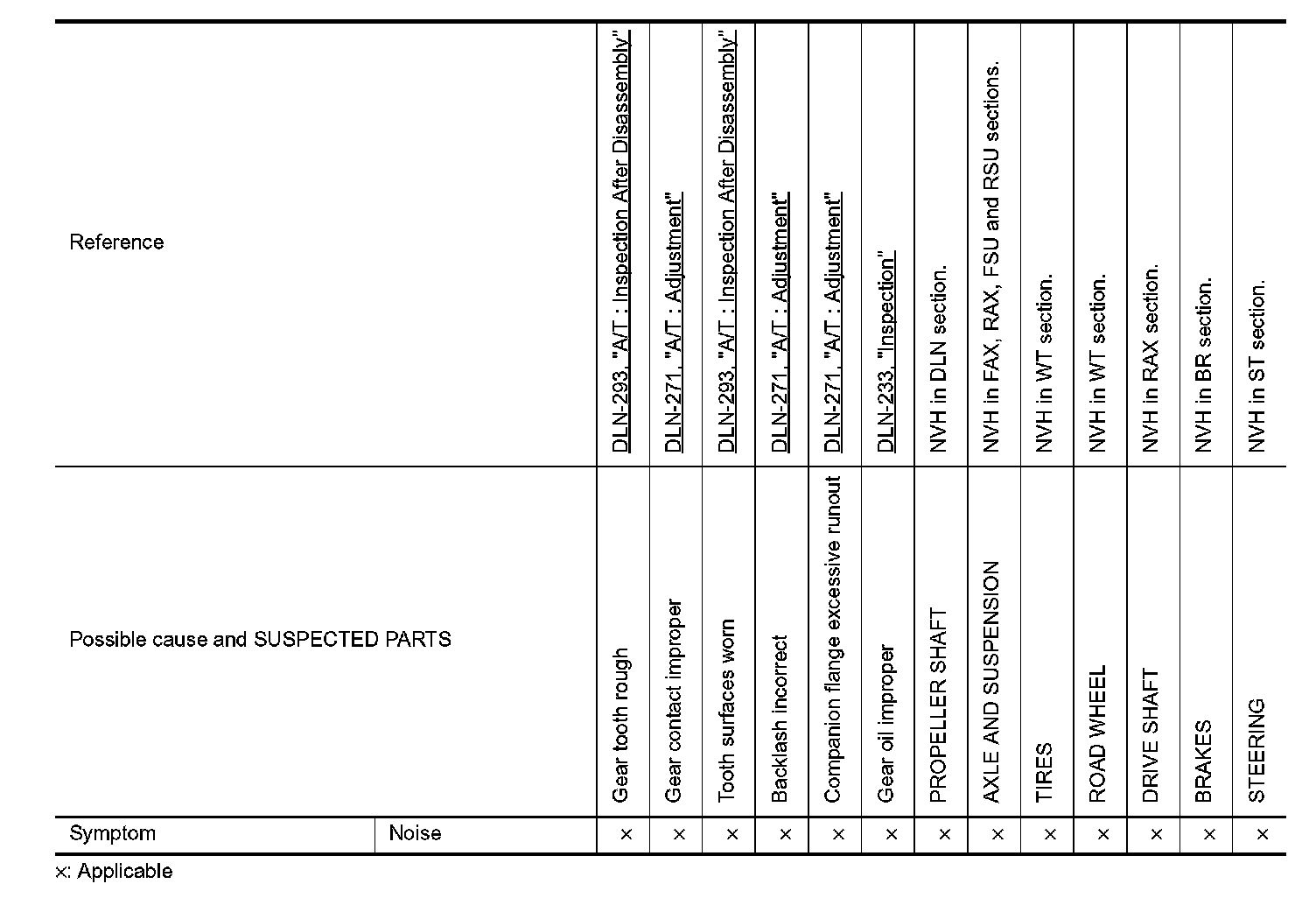

NVH Troubleshooting Chart:
