Washer Switch

WASHER SWITCH


Description

Washer switch is integrated with combination switch.








WASHER SWITCH


Component Inspection

1.CHECK WIPER SWITCH
1. Turn the ignition switch OFF.
2. Disconnect combination switch connector.

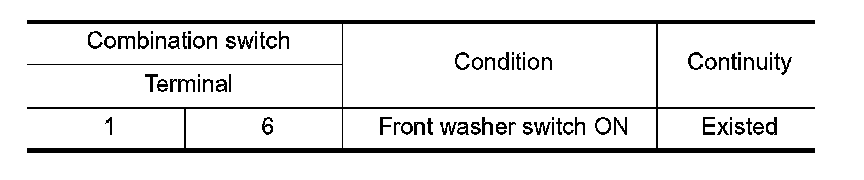

3. Check continuity between the combination switch terminals.





Does continuity exist?
YES - Wiper and washer switch is normal.
NO - Replace wiper and washer switch.
