B2602

B2602 SHIFT POSITION





Description
BCM confirms the shift position with the following 4 signals.
- Selector lever
- Transmission range switch
- P position signal from IPDM E/R (CAN)
- P position signal from TCM (CAN)




DTC Logic

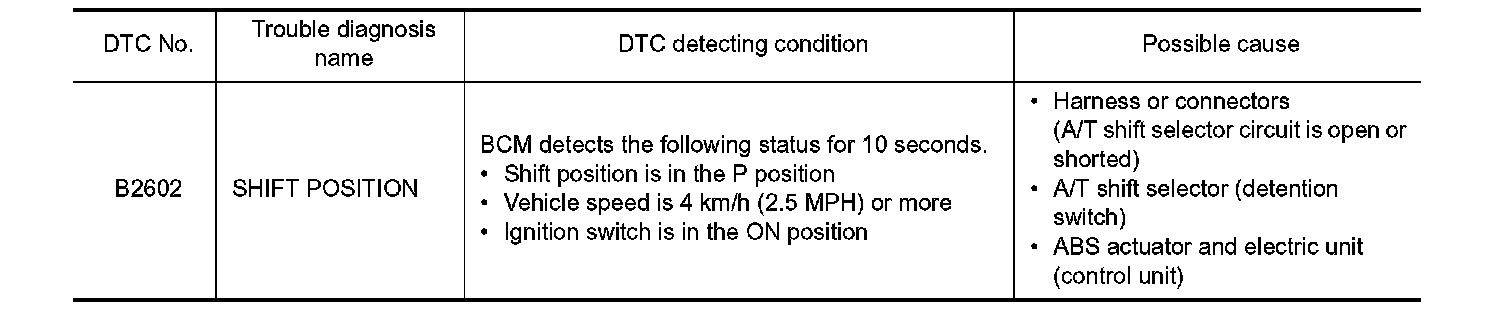

DTC DETECTION LOGIC

NOTE:
- If DTC B2602 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to SEC.
- If DTC B2602 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to SEC.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine.
2. Drive vehicle at a speed of 4 km/h (2.5 MPH) or more for at least 10 seconds.
3. Check "Self-diagnostic result" using CONSULT-III.
Is DTC detected?
YES - Go to B2602.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK DTC WITH "ABS ACTUATOR AND ELECTRIC UNIT"
Check "Self diagnostic result" using CONSULT-III. Refer to Testing and Inspection.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace the malfunctioning parts.
2.CHECK A/T SHIFT SELECTOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect A/T shift selector (detention switch) connector.
3. Check voltage between A/T shift selector (detention switch) harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - GO TO 3.
3.CHECK A/T SHIFT SELECTOR POWER SUPPLY CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between A/T shift selector (detention switch) harness connector and BCM harness connector.





3. Check continuity between A/T shift selector (detention switch) harness connector and ground.





Is the inspection result normal?
YES - Replace BCM. Refer to Removal and Installation.
NO - Repair or replace harness.
4.CHECK A/T SHIFT SELECTOR CIRCUIT
1. Disconnect BCM connector and IPDM E/R connector.
2. Check continuity between A/T shift selector (detention switch) harness connector and BCM harness connector.





3. Check continuity between A/T shift selector (detention switch) harness connector and ground.





Is the inspection result normal?
YES - GO TO 5.
NO - Repair or replace harness.
5.CHECK A/T SHIFT SELECTOR (DETENTION SWITCH)
Refer to B2601.
Is the inspection result normal?
YES - GO TO 6.
NO - Replace A/T shift selector. Refer to Removal and Installation (2WD) or Removal and Installation (AWD).
6.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
- INSPECTION END
