Home >> Infiniti >> 2010 >> G37x Sedan AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Transmission Mode Indicator - A/T >> Locations

Transmission Mode Indicator - A/T: Locations





A/T CONTROL SYSTEM

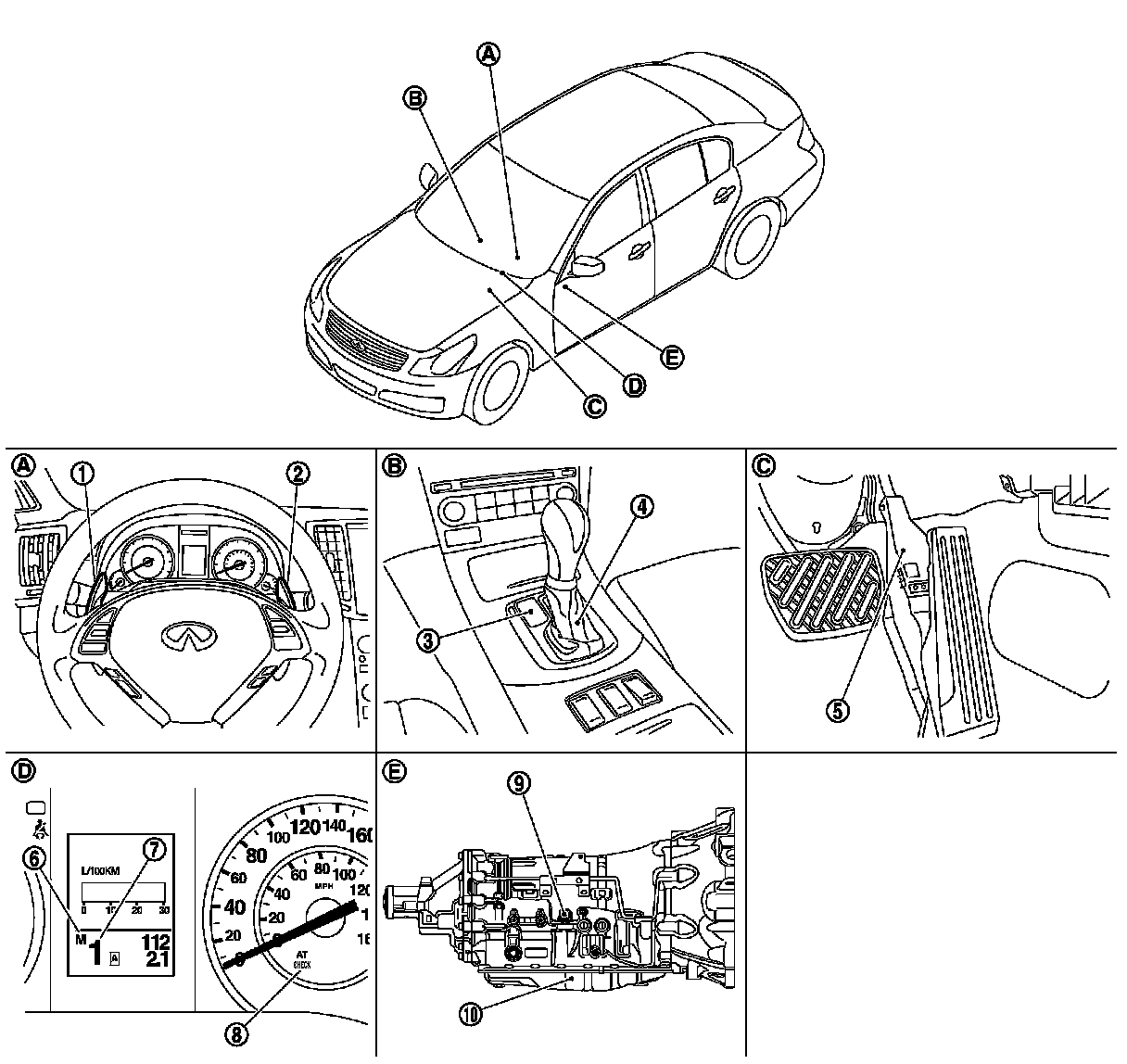

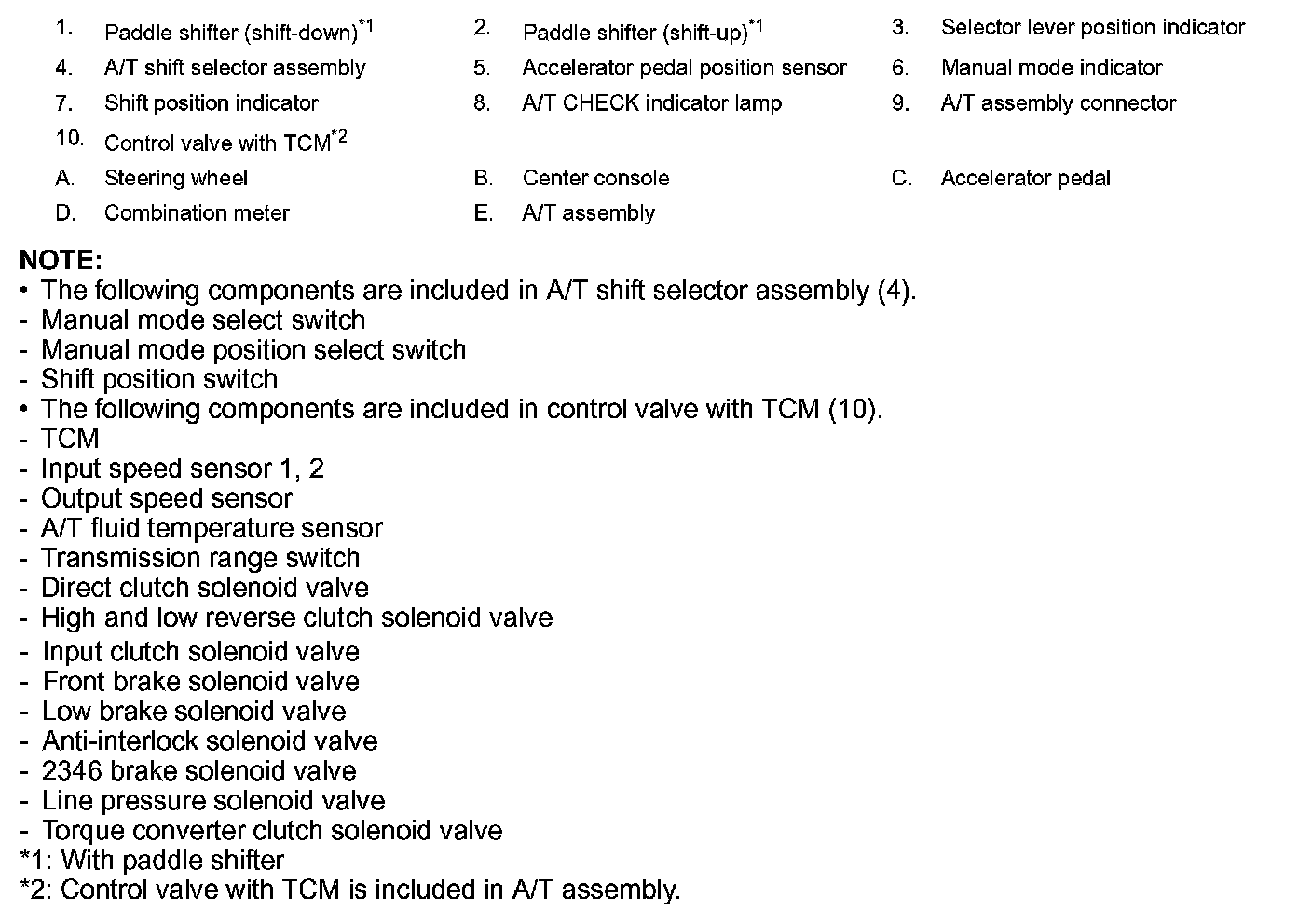

Component Parts Location
