Cabin Air Filter / Purifier: Service and Repair

IN-CABIN MICROFILTER


Removal and Installation


FUNCTION





Air inside passenger compartment is kept clean at either recirculation or fresh mode by installing in-cabin microfilter into blower unit.

REPLACEMENT TIMING
Replace in-cabin microfilter. Maintenance in Schedule 1 and Maintenance in Schedule 2.
When replacing filter, affix a caution label inside the glove box.

REPLACEMENT PROCEDURES
1. Remove glove box. Instrument Panel.

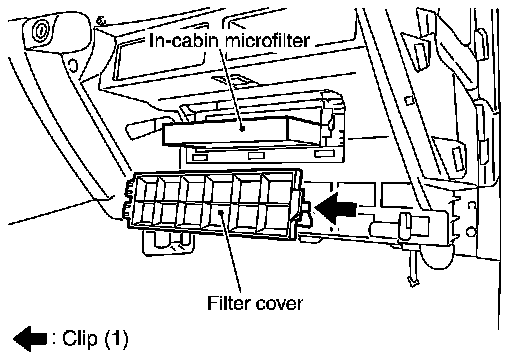

2. Remove filter cover, and then remove in-cabin microfilter.

CAUTION:
If the filter is deformed/damaged when removing, replace it with a new one. Deformed/damaged filter may deteriorate the dust collecting performance.
3. Take out in-cabin microfilter from blower unit.
4. Replace with new one and reinstall on blower unit.

CAUTION:
When installing, handle the filter with extreme care to avoid deforming/damaging.
5. Reinstall glove box.
