Clock: Service and Repair

CLOCK


Removal and Installation of Clock


REMOVAL

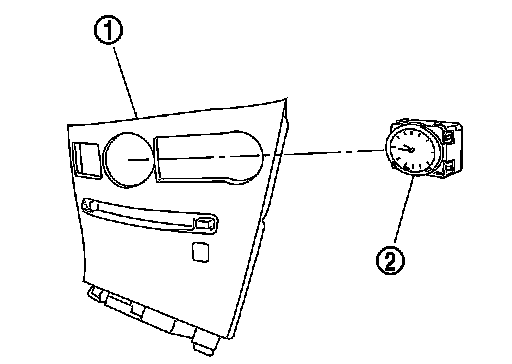

1. Remove cluster lid C (1). Cluster Lid C.
2. Remove preset switch. Without Mobile Entertainment System (Without mobile entertainment system) or With Mobile Entertainment System (With mobile entertainment system).
3. Disengage tabs, and remove clock (2) from cluster lid C.

INSTALLATION
Installation is the reverse order of removal.
