Backup Lamp: Service and Repair

BACK-UP LAMP


Removal and Installation












REMOVAL

CAUTION:
Disconnect the battery negative terminal or remove the fuse.
1. Remove trunk lid finisher inner. .
2. Disconnect back up lamp and trunk lid request switch connector.
3. Remove trunk lid finisher outer. .

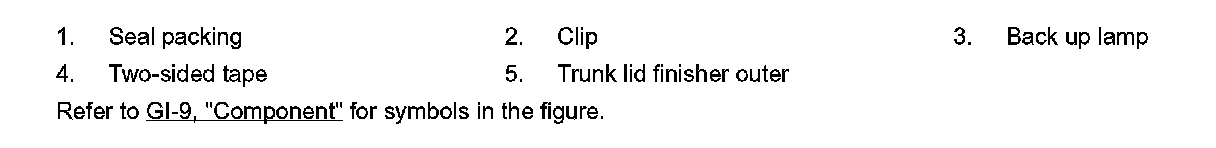

4. Remove screws and clip, and then remove back up lamp.
5. Remove seal packing from back up lamp.

INSTALLATION
Installation is the reverse order of removal.
Install a new seal packing to the back up lamp.

CAUTION:
Seal packing cannot be reused.
