Front Fender: Service and Repair

FRONT FENDER


Removal and Installation












REMOVAL
1. Remove the front bumper. Standard Type.
2. Remove the headlamp. Removal and Installation (FOR USA) or Lighting and Horns Lighting and Horns Lighting and Horns Lighting and Horns, "Removal and Installation" (FOR CANADA).
3. Remove the turn signal lamp. Removal and Installation of Front Turn Signal Lamp.
4. Remove the front fender protector. Fender Protector Fender Protector.
5. Remove the center mud guard. .

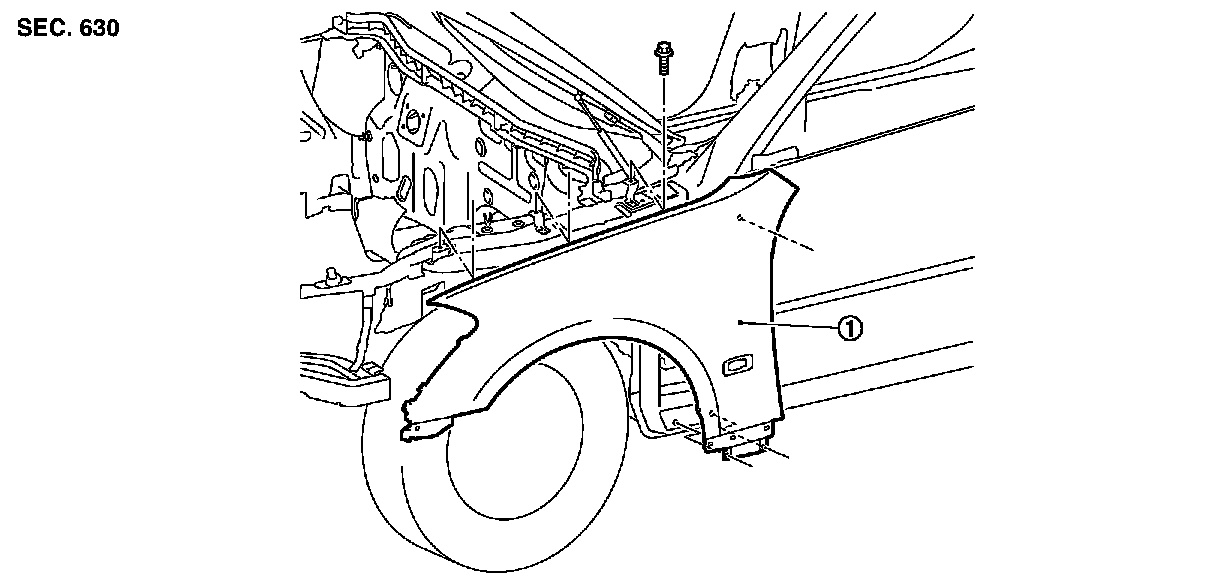

6. Remove the mounting bolt and remove the front fender.

CAUTION:
While removing use a shop cloth to protect body from damaging.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- After installing, apply touch-up paint (the body color) onto the head of the front fender mounting bolts.
- After installing, check front fender adjustment. Adjustments and Adjustments.
