Inside Mirror

INSIDE MIRROR


Removal and Installation

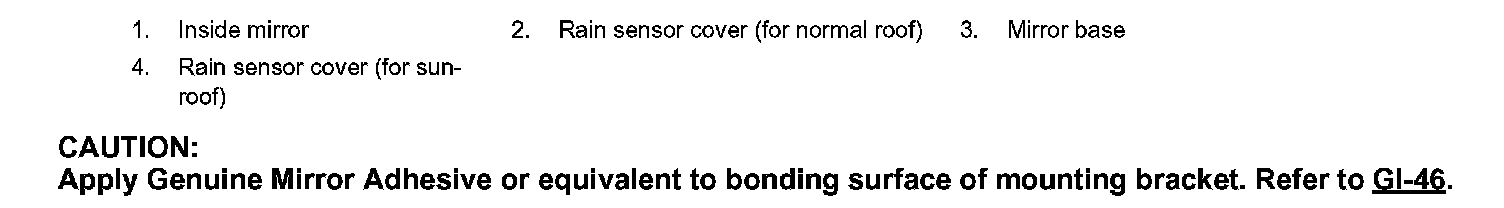

CAUTION:
Apply Genuine Mirror Adhesive or equivalent to bonding surface of mounting bracket. Fluid Type Specifications.

REMOVAL
1. Remove rain sensor cover.
2. Remove screw of mirror base.
3. Slide the mirror upward to remove.
4. Disconnect the connector.

INSTALLATION
Install in the reverse order of removal.
