Shift Indicator - A/T





A/T INDICATOR

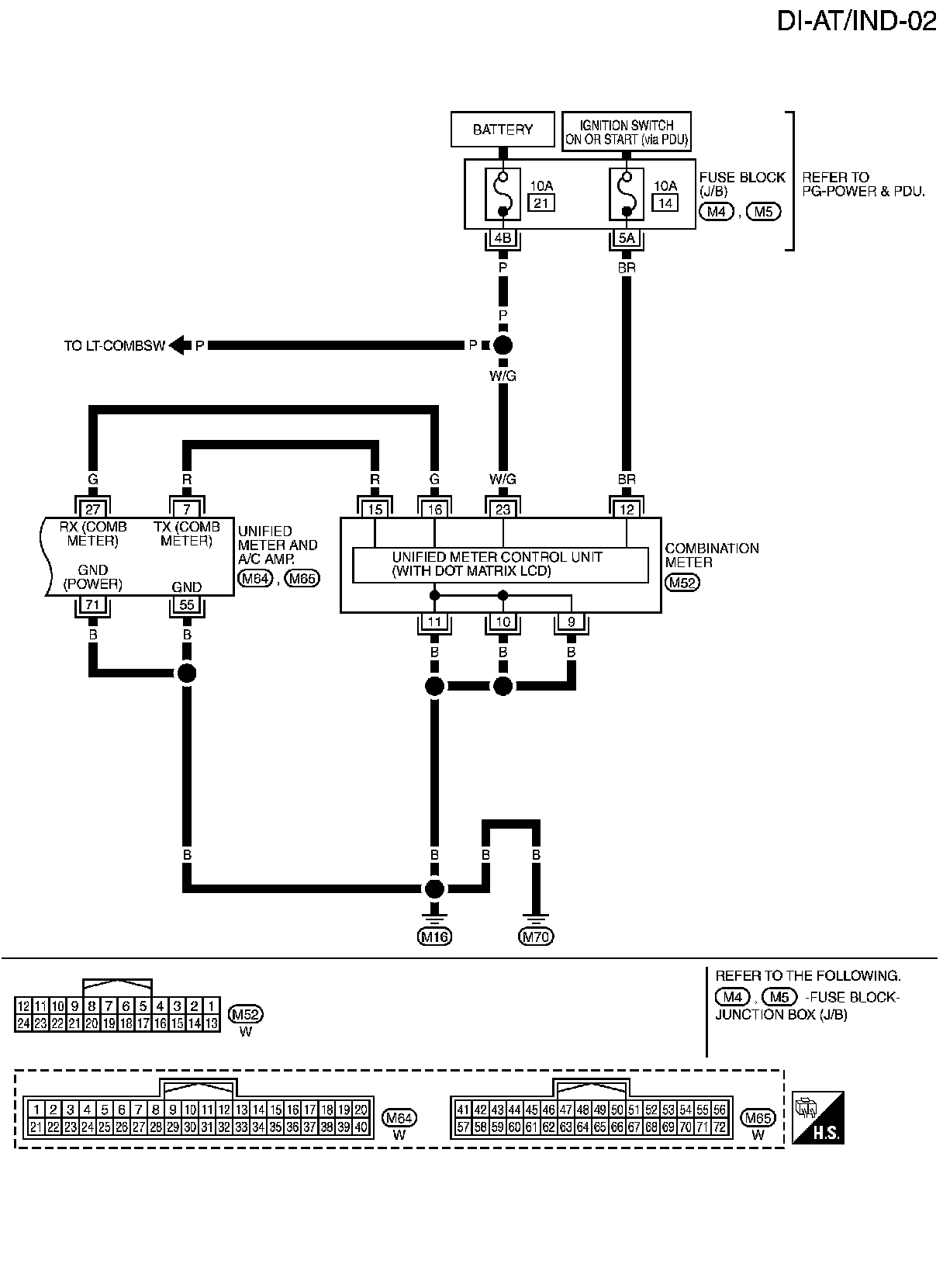

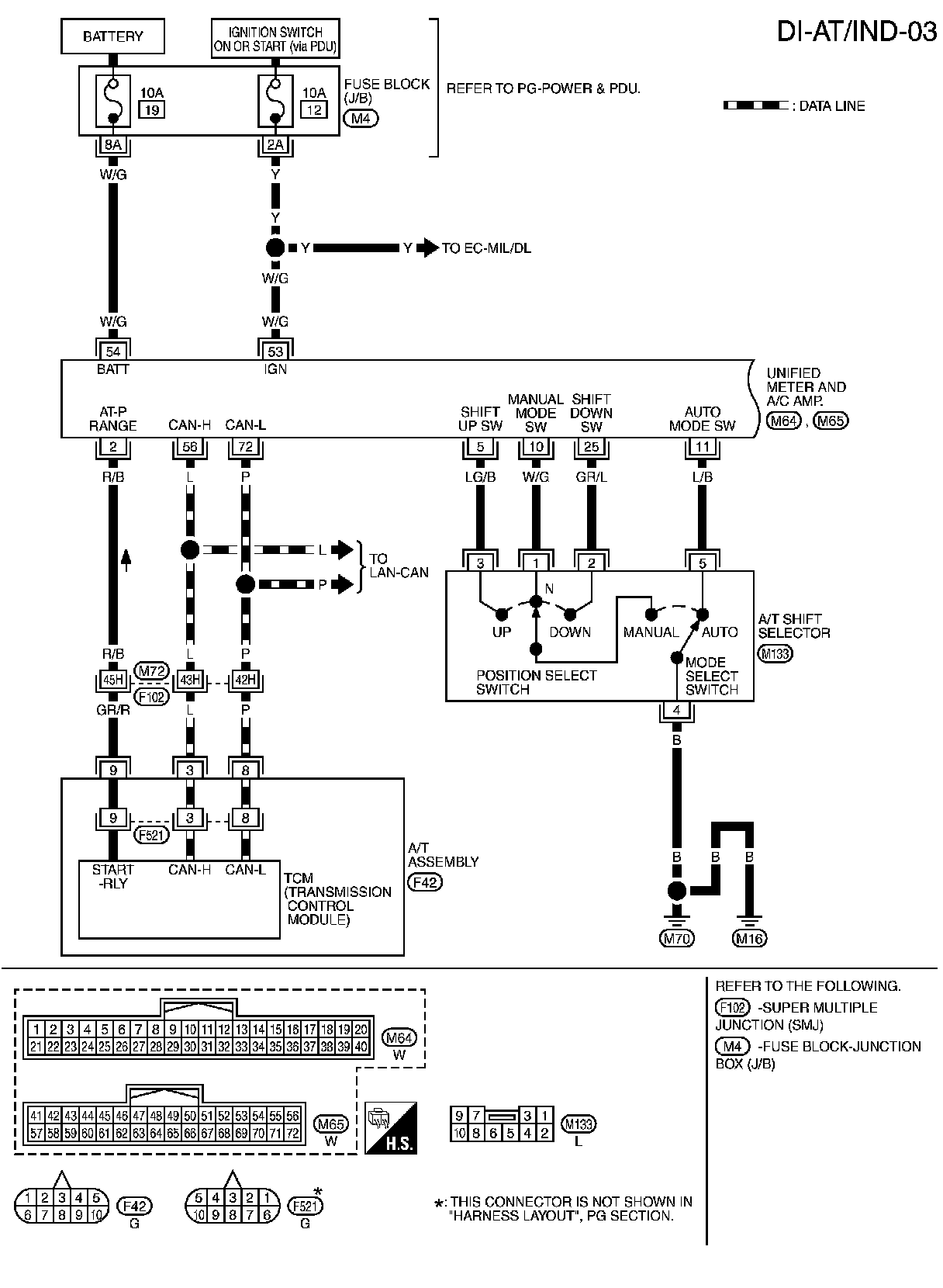

Wiring Diagram - AT/IND -


5A/T MODELS











7A/T MODELS
