Tel Adapter Unit

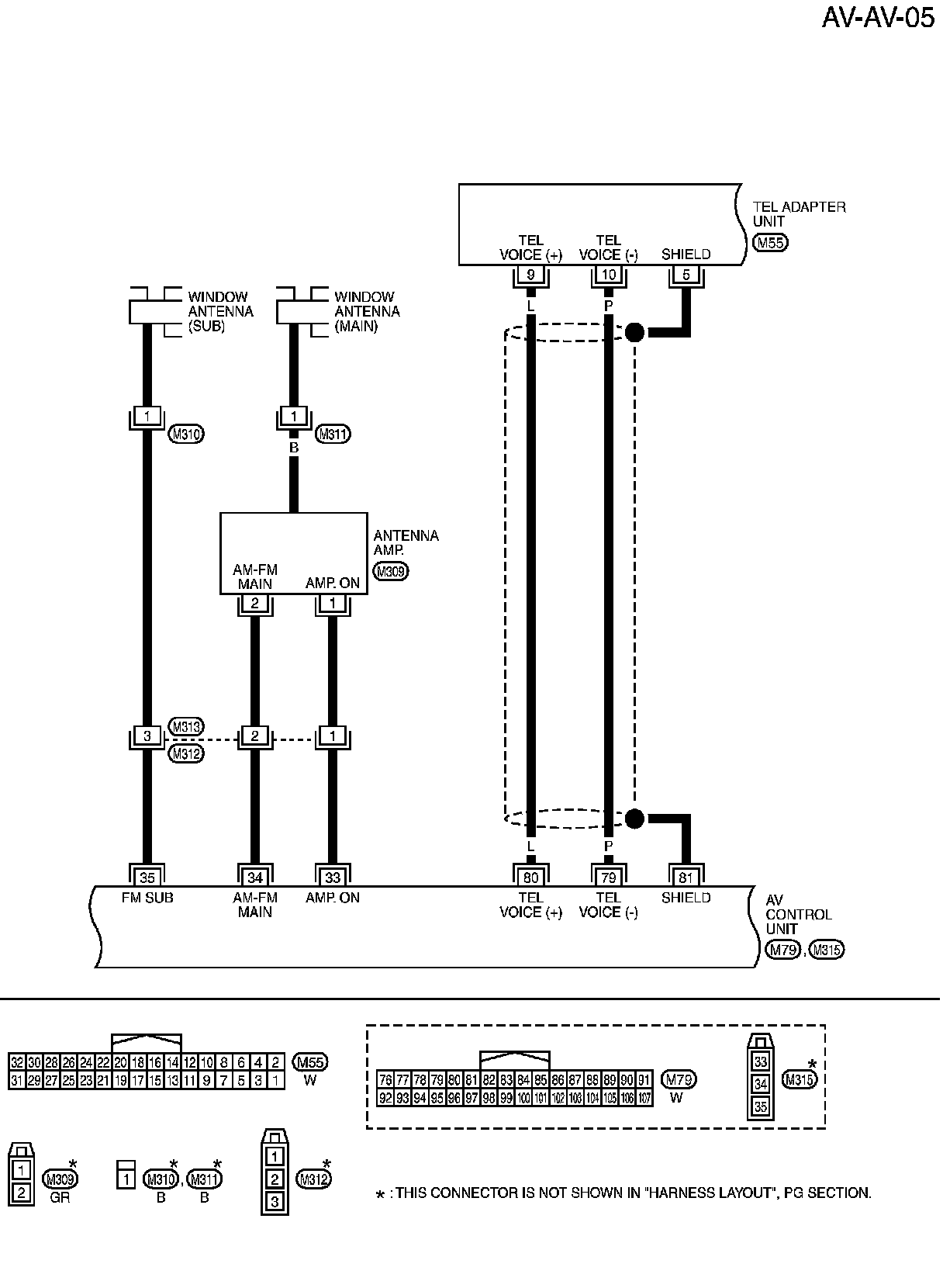

TEL ADAPTER UNIT

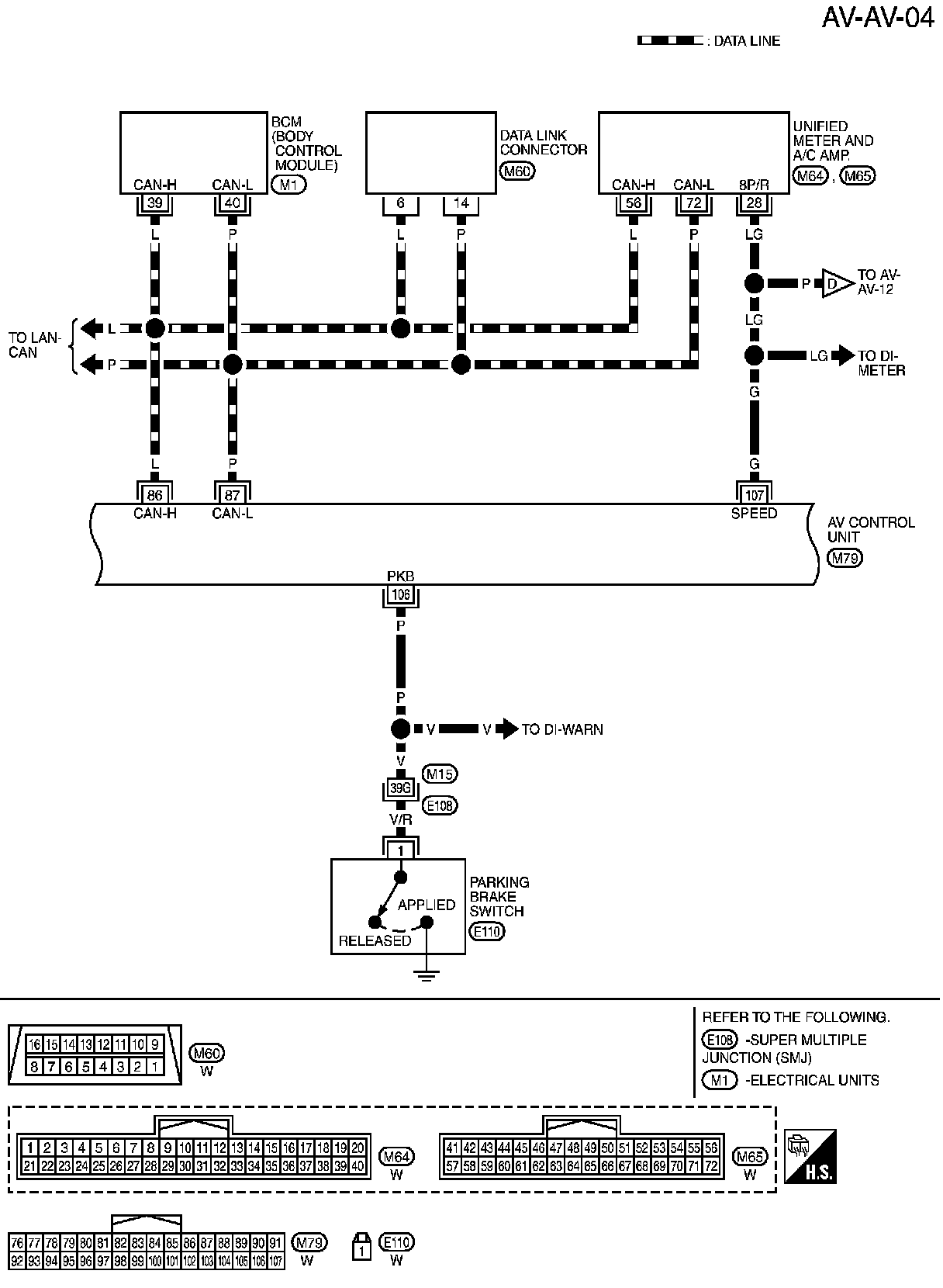

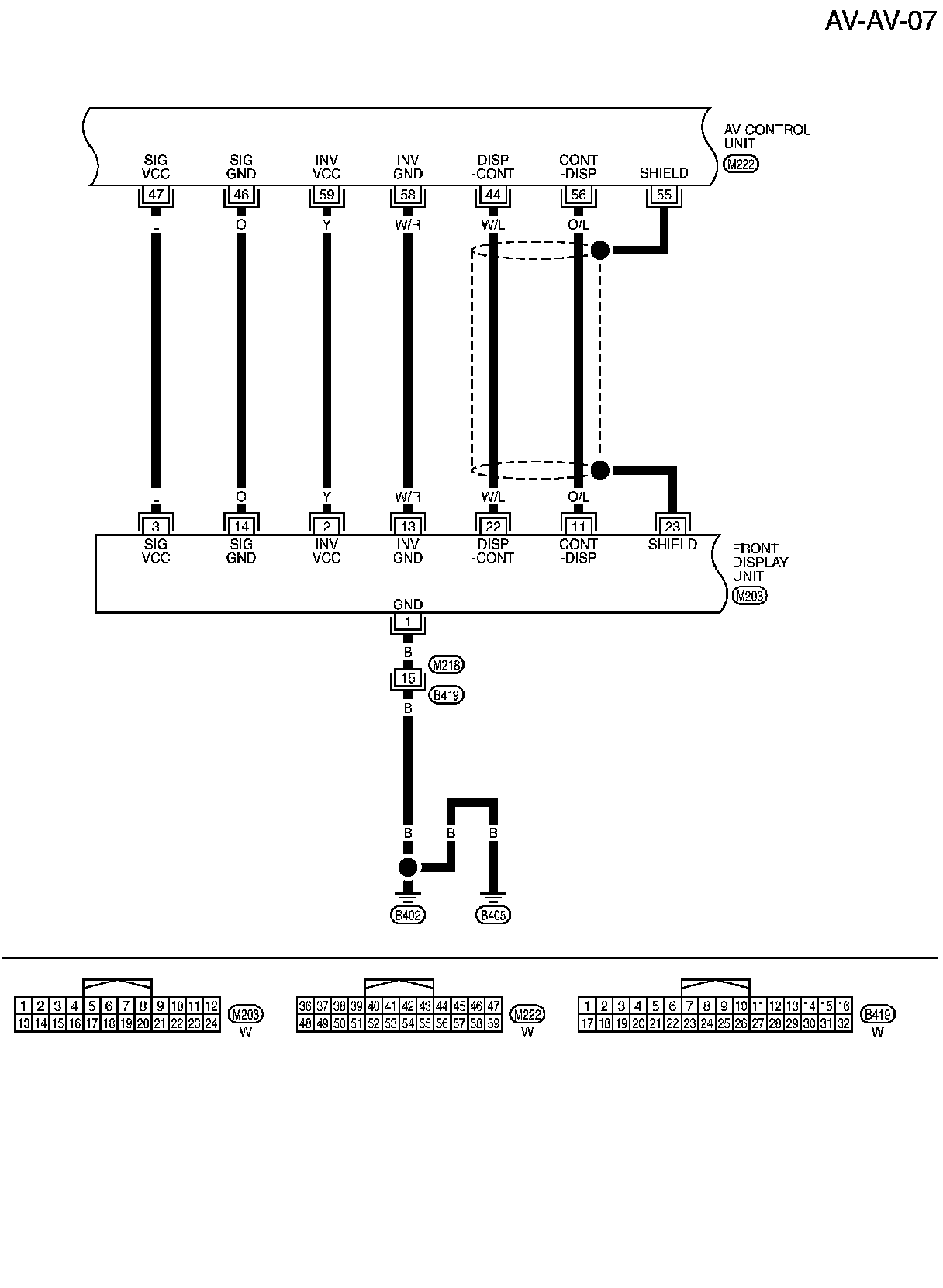

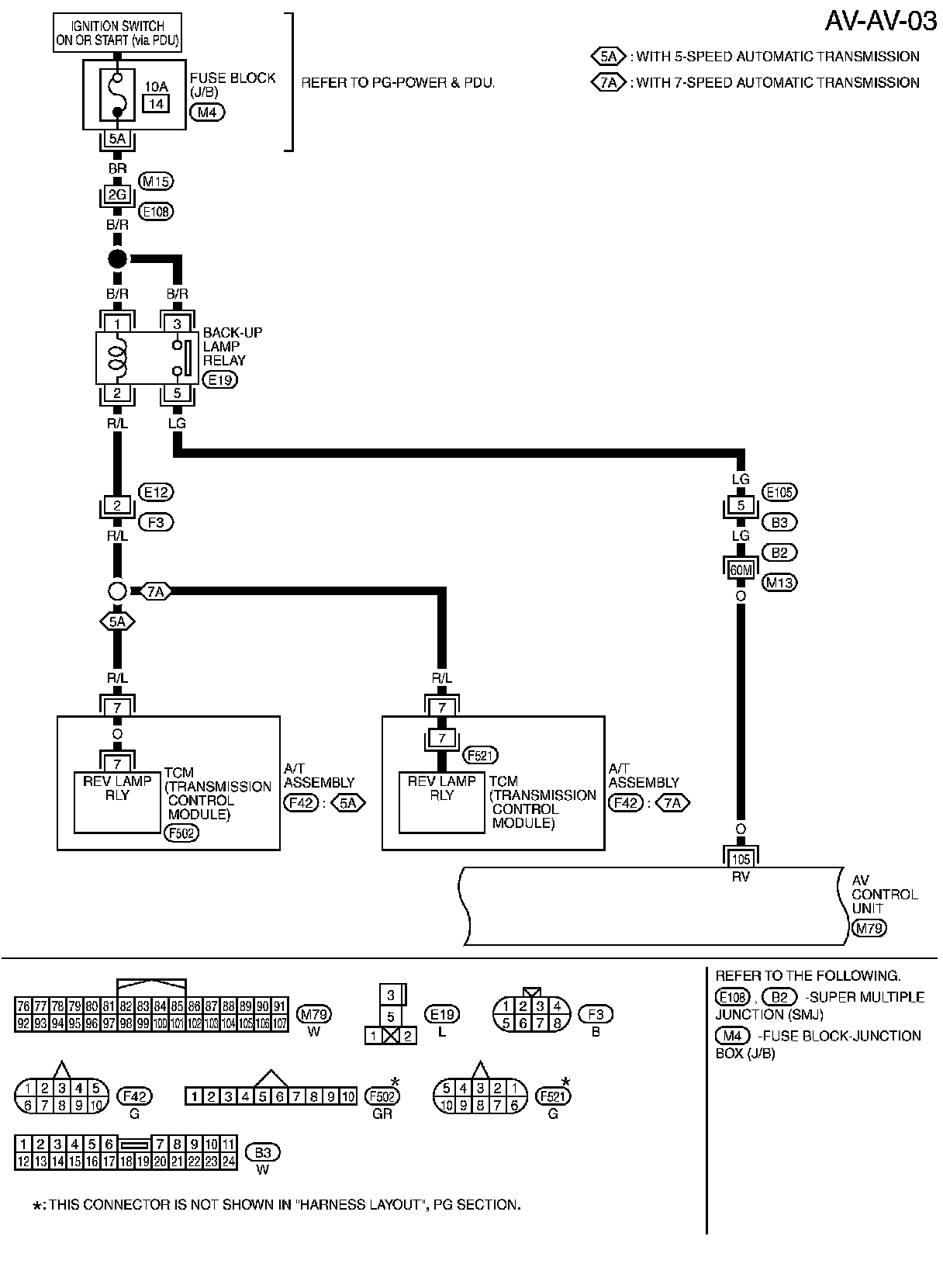

Wiring Diagram - AV - / Base Audio System


NOTE:

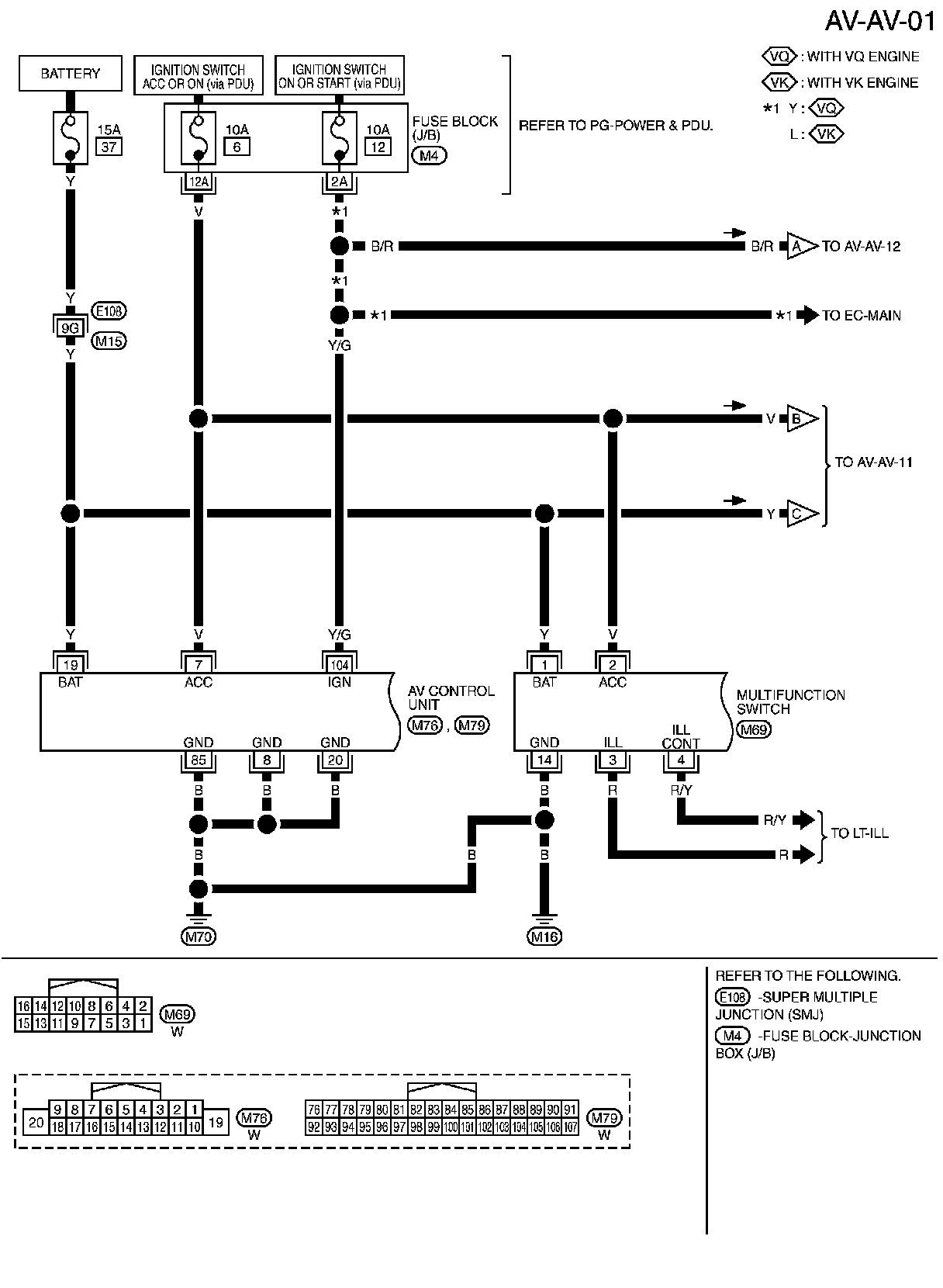

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
