Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2010
>>
M35x AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
>>
RAS
RAS
TROUBLE DIAGNOSIS

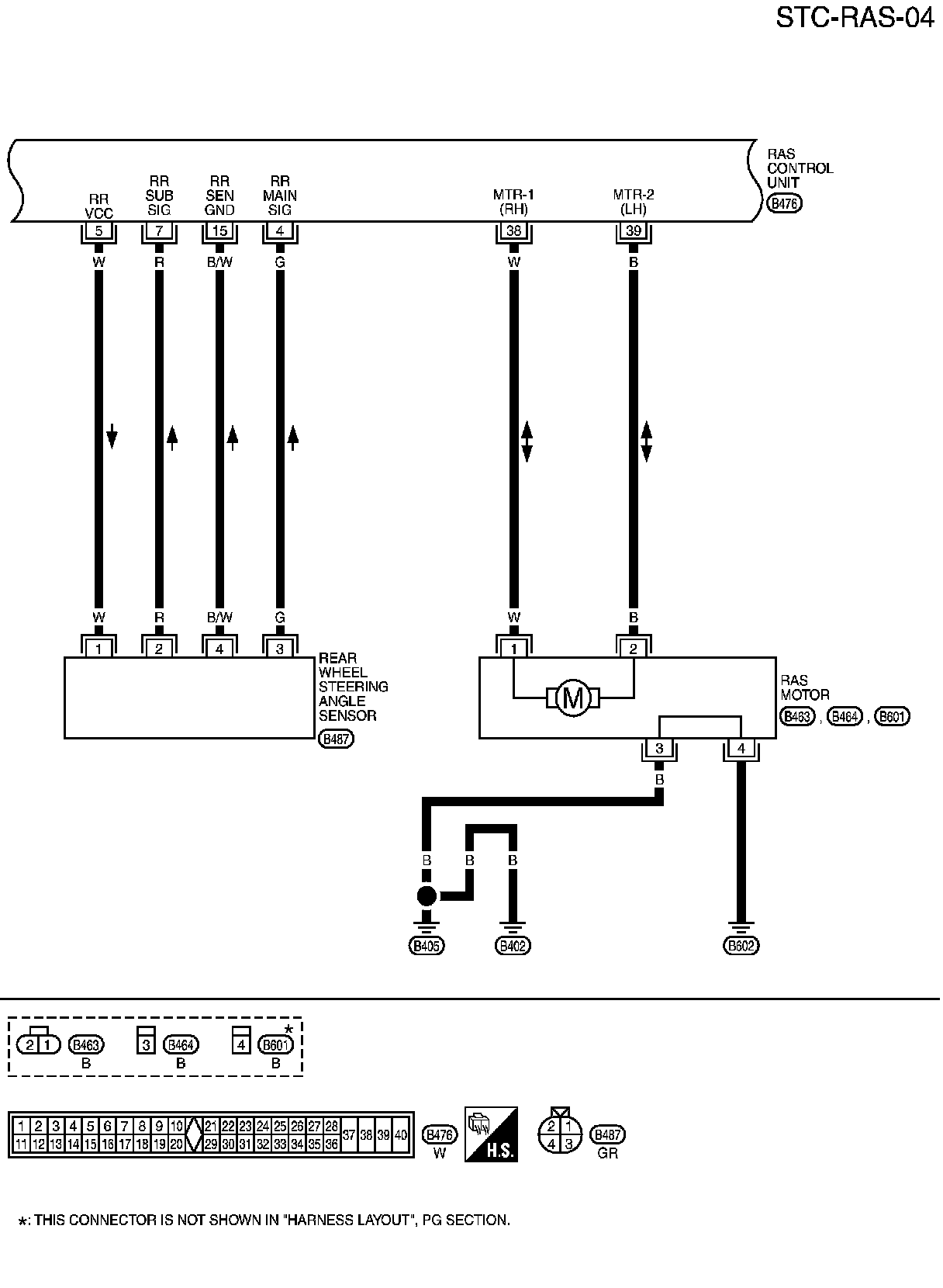

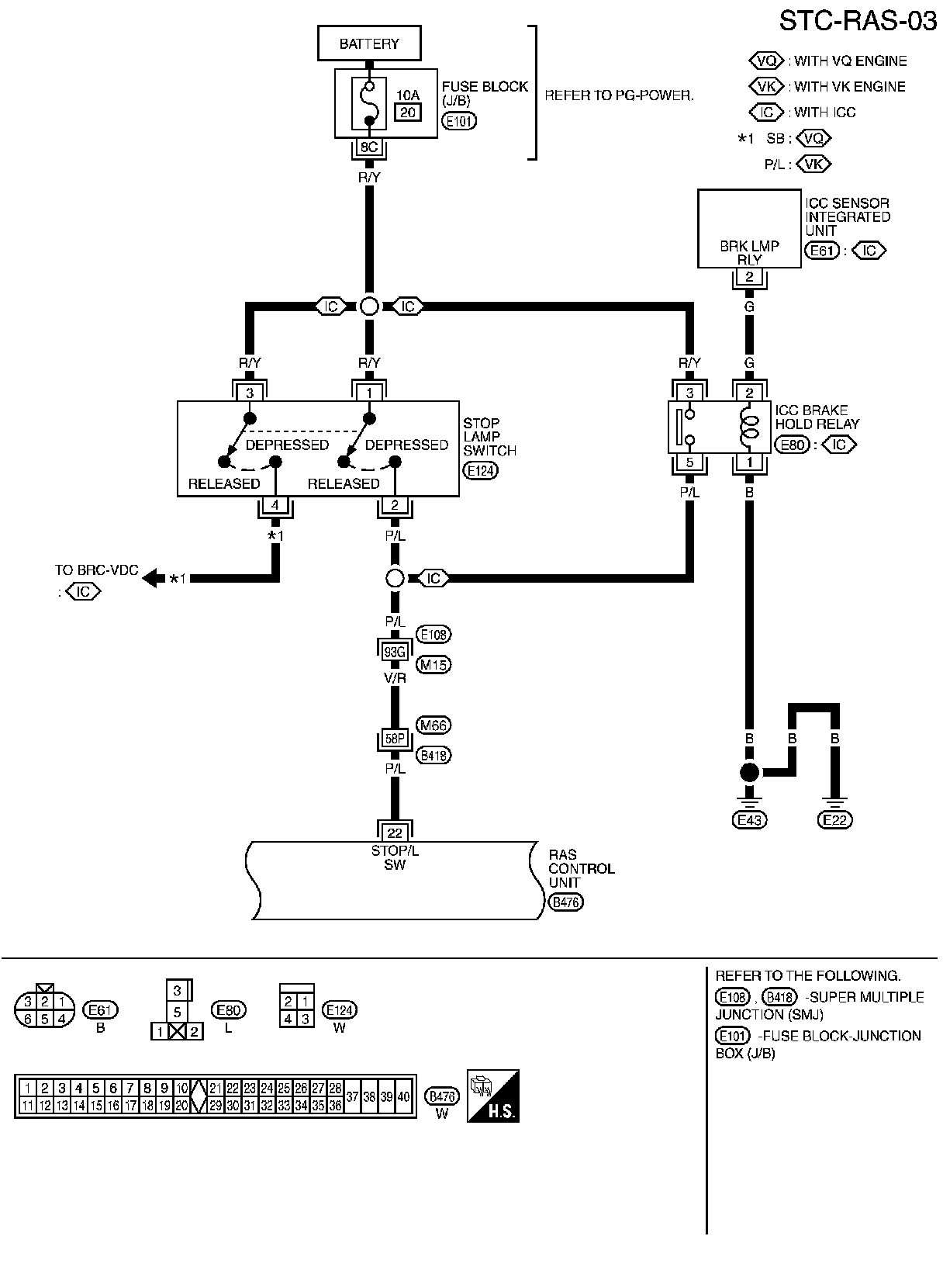

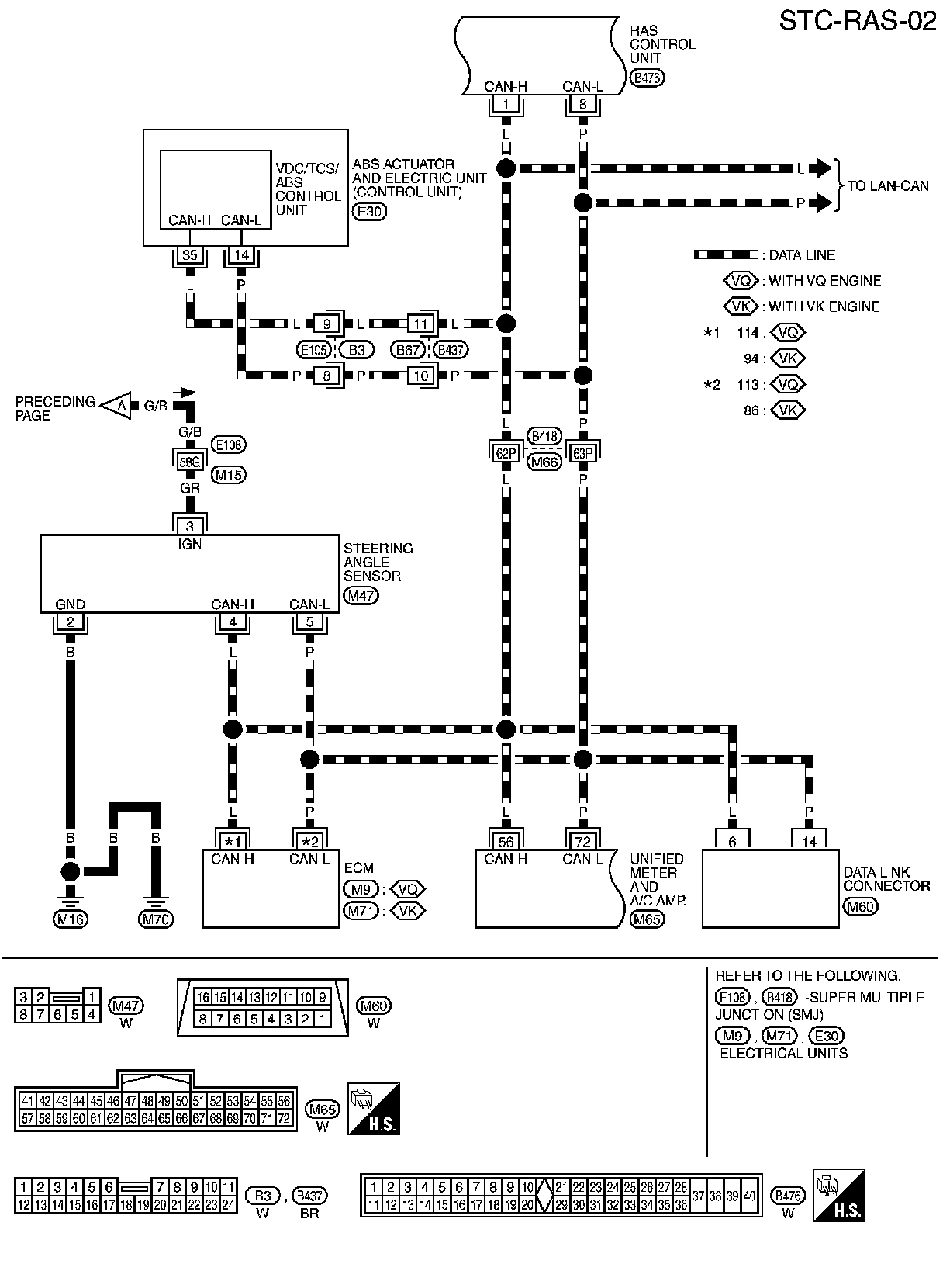

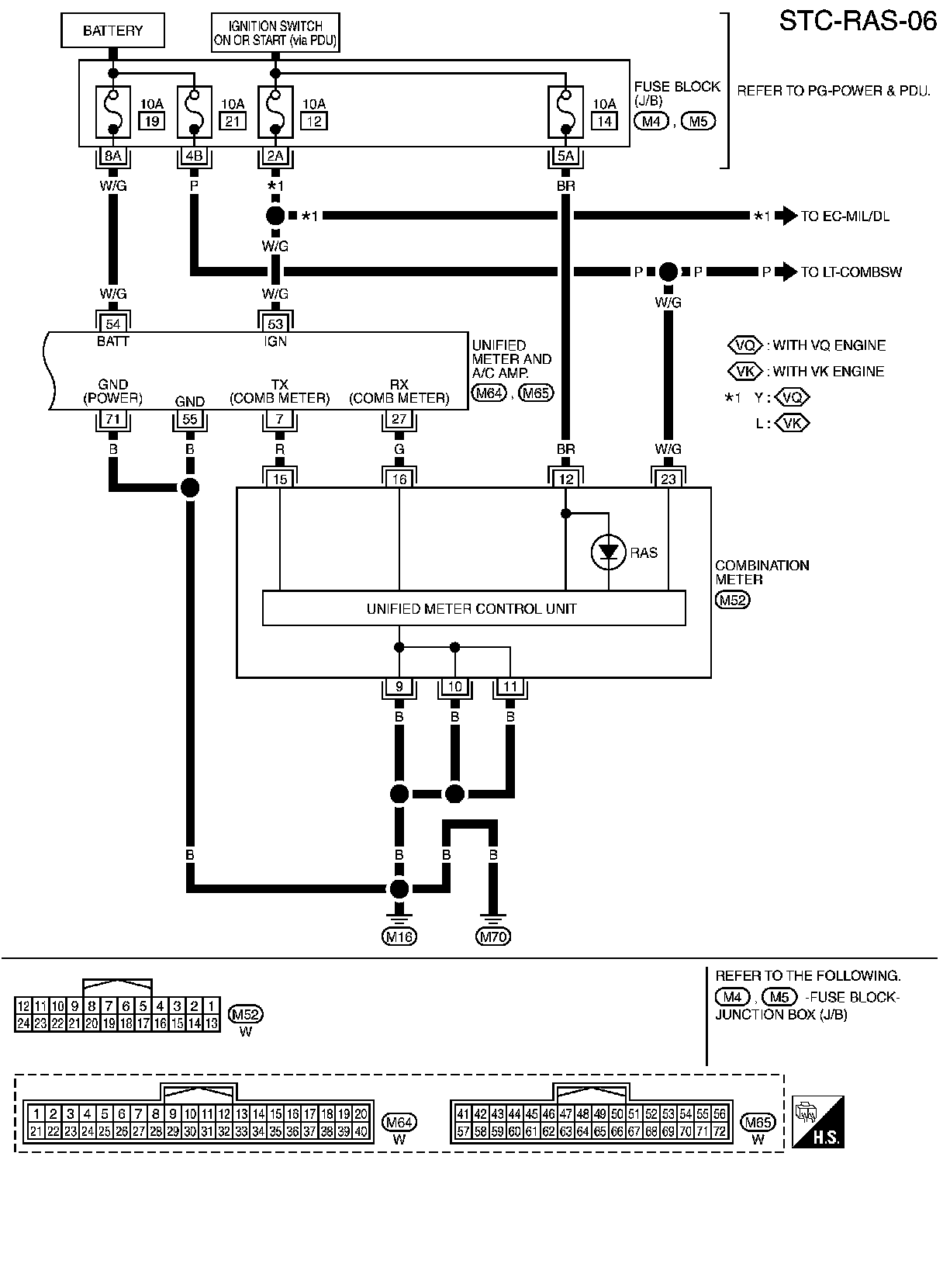

Wiring Diagram - RAS -
