Heater Core: Service and Repair





HEATER CORE


Removal and Installation


REMOVAL

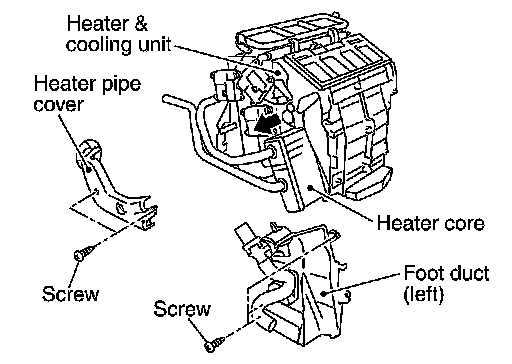

1. Remove heater & cooling unit assembly. Removal and Installation.





2. Remove mounting screws, and then remove heater pipe cover.
3. Remove mounting screws, and then remove foot duct (left).
4. Slide heater core (shown in the figure) to leftward.

INSTALLATION
Installation is basically the reverse order of removal.

NOTE:
Changing Engine Coolant (VQ35HR) or Changing Engine Coolant (VK45DE) when filling radiator with engine coolant.
