Refrigerant Pressure Sensor / Switch: Service and Repair

REFRIGERANT LINES


VQ35HR : Removal and Installation of Refrigerant Pressure Sensor


REMOVAL
1. Remove liquid tank. Removal and Installation.

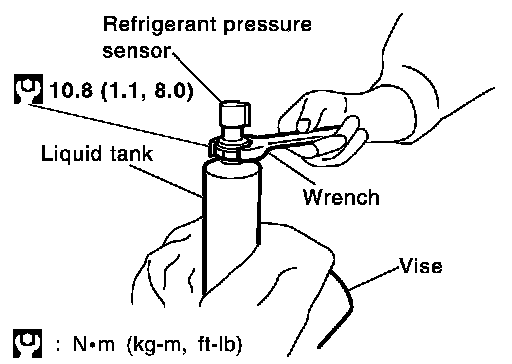

2. Using a vice, secure liquid tank, and remove refrigerant pressure sensor.

CAUTION:
Be careful not to damage liquid tank.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION:
- Apply compressor oil to O-ring of refrigerant pressure sensor when installing it.
- Check for leakages when recharging refrigerant.
