Cigarette Lighter: Service and Repair

CIGARETTE LIGHTER


Removal and Installation


REMOVAL
1. Remove A/T console finisher. Instrument Panel.

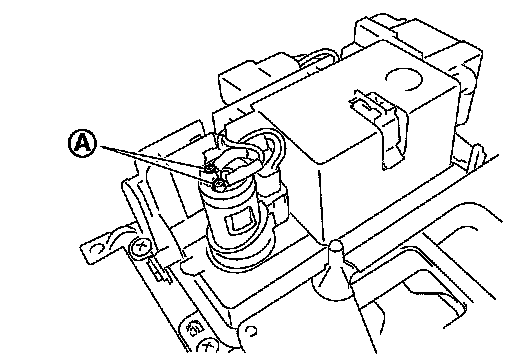

2. Remove screws (A) from reverse side cigarette lighter socket.





3. Pull out cigarette lighter (1).
4. Insert a small screwdriver or similar tool between the cigarette lighter socket (2) and cigarette lighter ring (3). Pull out cigarette lighter socket (2).

INSTALLATION
Note the following, and installation is the reverse order of removal.

CAUTION:
Align notches of cigarette lighter ring and cigarette lighter socket when installing.
