Compass: Adjustments

COMPASS


Zone Variation Setting Procedure


NOTE:
The zone setting is factory preset ("default" setting) to zone 8.





1. Press and hold the compass switch for 3 � 9 seconds.
2. The current zone setting appears on the compass display.

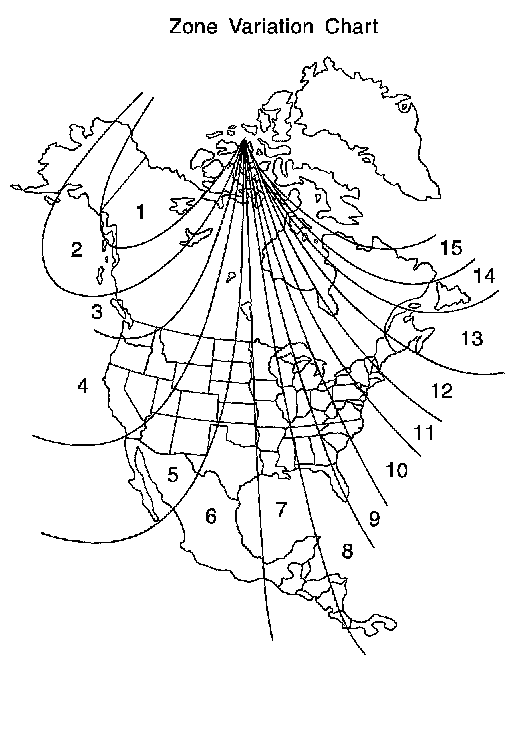

3. Find the current geographical location number in the zone variation chart.
4. Select the new zone number. (Press the compass switch until the new zone number appears on the compass display.)
5. After select the new zone number, the compass display will automatically shows a direction within a few seconds.
6. Perform the following calibration procedure for more accurate indications.
