Cluster Lid C

INSTRUMENT PANEL ASSEMBLY


CLUSTER LID C : Removal and Installation


CAUTION:
When removing, always use a remover tool that is made of plastic.

REMOVAL





1. Remove cup holder.

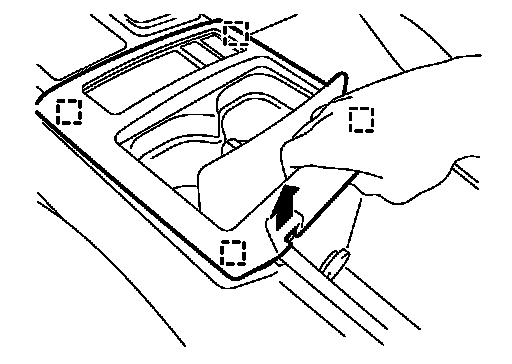

- Pull up to remove cup holder.





2. Remove switch finisher.
- Remove switch finisher fixing screws.
- Disconnect harness connectors.





3. Remove A/T console finisher.
- Place the selector lever in [D] position.
- Remove selector lever knob. A/T Shift Selector Removal and Installation.

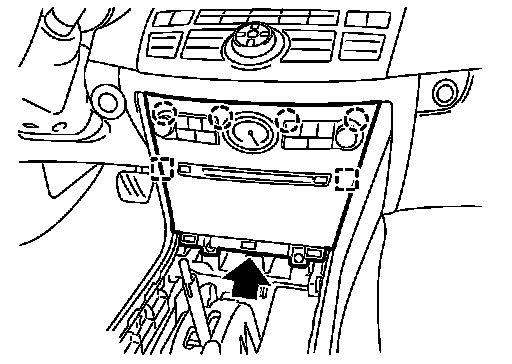

- Lift up backside and pull back.
- Disconnect harness connectors.

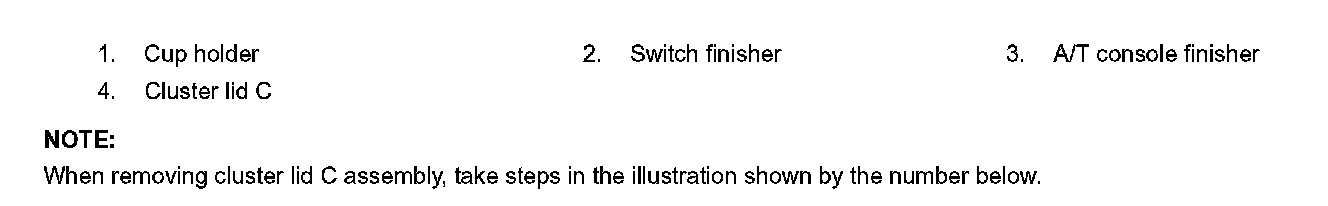

4. Remove cluster lid C.
- Remove cluster lid C fixing screws.
- Pull back.
- Disconnect harness connectors.






INSTALLATION
Install in the reverse order of removal.
