Shift Indicator - A/T: Testing and Inspection

A/T INDICATOR


A/T Indicator Is Malfunction

1.CHECK SEGMENTS OF A/T INDICATOR
Perform self-diagnosis mode of combination meter. Self-Diagnosis Mode of Combination Meter.
Are all segments displayed?
YES - GO TO 2.
NO - Replace combination meter.
2.CHECK UNIFIED METER AND A/C AMP. (CONSULT-III)
Perform self-diagnosis of unified meter and A/C amp. .
Self-diagnosis results
No malfunction detected - GO TO 3.
Malfunction detected - Check applicable parts, and repair or replace corresponding parts.
3.CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL

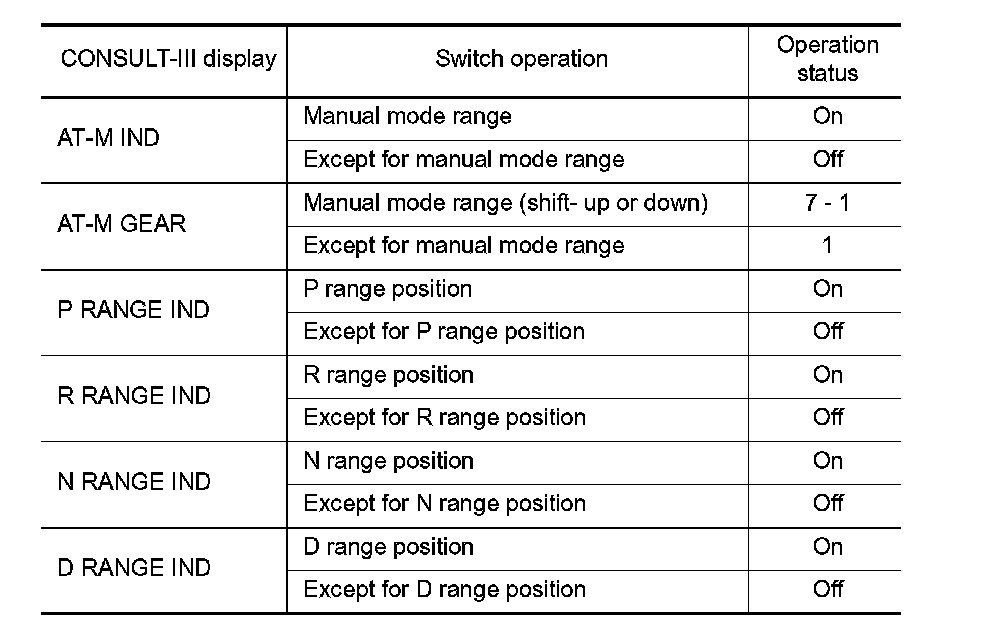

Use "Data Monitor" of "METER/M&A" on CONSULT-III. Confirm each indication on the monitor when operating the shift lever.





OK or NG
OK - Replace combination meter.
NG - GO TO 4.
4.CHECK TCM (CONSULT-III)
Perform self-diagnosis of TCM. CONSULT-III Function (Transmission).
Self-diagnosis results
No malfunction detected - Check TCM input/output signal. A/T Control System.
Malfunction detected - Check applicable part, and repair or replace corresponding parts.
