Electrical Component Inspection

WARNING CHIME


Electrical Component Inspection


FRONT DOOR SWITCH (DRIVER SIDE)

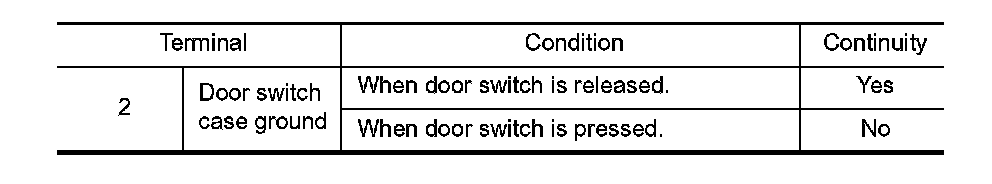

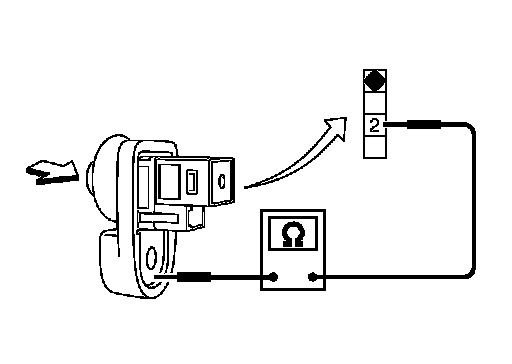

Check continuity between terminal 2 and door switch case ground.






SEAT BELT BUCKLE SWITCH (DRIVER SIDE)

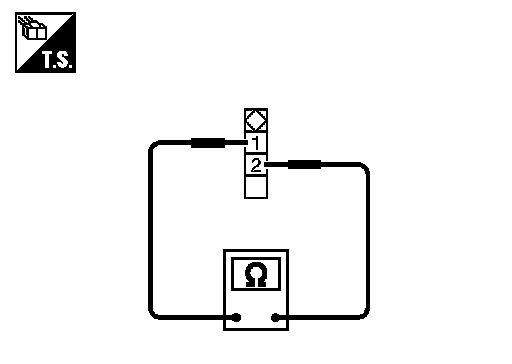

Check continuity between terminals 1 and 2.
