Oil Pressure Warning Lamp Does Not Turn Off (Oil Pressure Is Normal)

WARNING LAMPS


Oil Pressure Warning Lamp Does Not Turn Off (Oil Pressure Is Normal)


NOTE:
For oil pressure inspection, Procedures (VQ35HR) or Procedures (VK45DE).
1.CHECK OPERATION OF OIL PRESSURE WARNING LAMP
Activate IPDM E/R auto active test. Auto Active Test.
Does oil pressure warning lamp is blinking?
YES - GO TO 2.
NO - GO TO 5.
2.CHECK IPDM E/R OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect oil pressure switch connector.
3. Turn ignition switch ON.

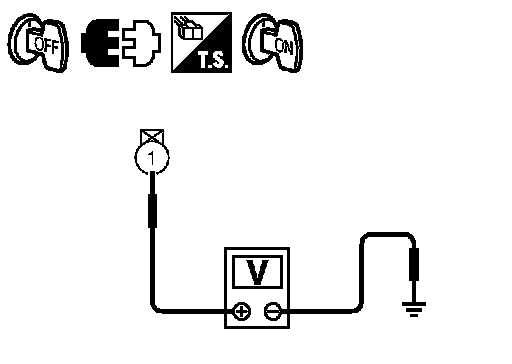

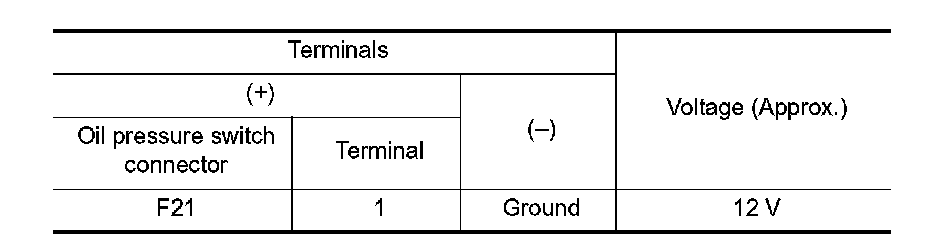

4. Check voltage between oil pressure switch harness connector and ground.





OK or NG
OK - GO TO 3.
NG - GO TO 4.
3.CHECK OIL PRESSURE SWITCH
1. Turn ignition switch OFF.
2. Check oil pressure switch. Warning Lamps.
OK or NG
OK - Replace IPDM E/R. Service and Repair.
NG - Replace oil pressure switch.
4.CHECK OIL PRESSURE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.

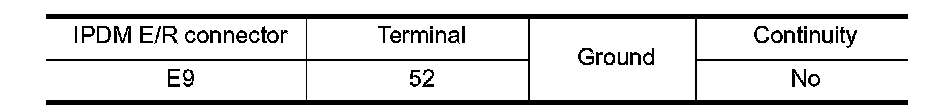

3. Check continuity between IPDM E/R harness connector and ground.





OK or NG
OK - Replace IPDM E/R. Service and Repair.
NG - Repair harness or connector.
5.CHECK IPDM E/R (CONSULT-III)
Perform self-diagnosis of IPDM E/R. CONSULT-III Function (IPDM E/R).
Self-diagnostic results content
No malfunction detected- Replace combination meter.
Malfunction detected- Check applicable parts, and repair or replace corresponding parts.
