Foot Lamp (Driver Side)

INTERIOR ROOM LAMP


Foot Lamp (Driver Side)


BULB REPLACEMENT

CAUTION:
Disconnect the battery negative terminal or remove the fuse.

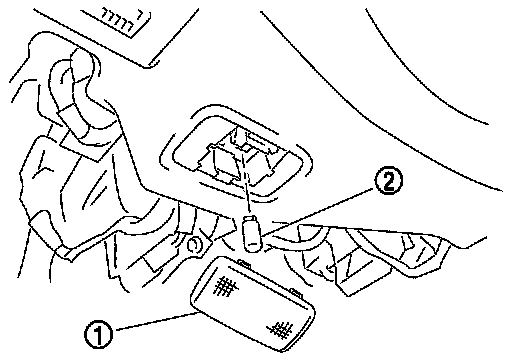

1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).

Foot lamp (Driver side): 12V - 3.4W

REMOVAL AND INSTALLATION

Removal

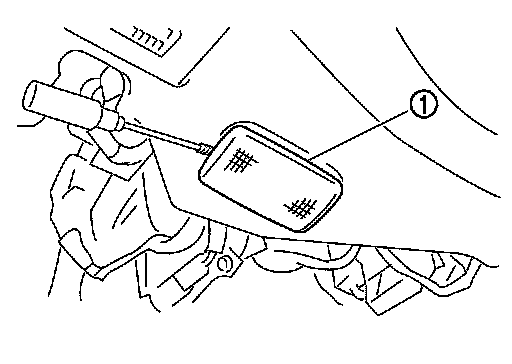

1. Use a clip driver or similar tool and remove foot lamp (driver side) (1).
2. Disconnect connector.

Installation
Installation is the reverse order of removal.
