Step Lamp

INTERIOR ROOM LAMP


Step Lamp


BULB REPLACEMENT

CAUTION:
Disconnect the battery negative terminal or remove the fuse.

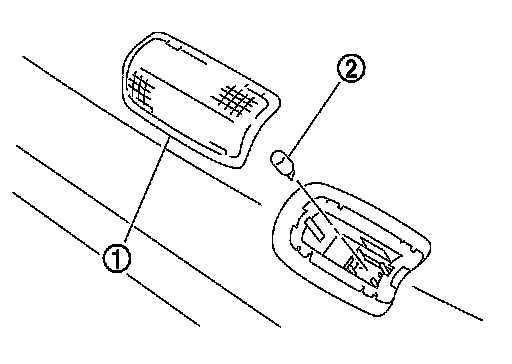

1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb.

Step lamp: 12V - 5W

REMOVAL AND INSTALLATION
Remove step lamp integral with door trim. Locations.
