Removal and Installation of Side Turn Signal Lamp

TURN SIGNAL AND HAZARD WARNING LAMPS


Removal and Installation of Side Turn Signal Lamp












NOTE:
Replace as an assembly because it cannot be disassembled.

CAUTION:
Disconnect battery negative terminal or remove the fuse.

REMOVAL

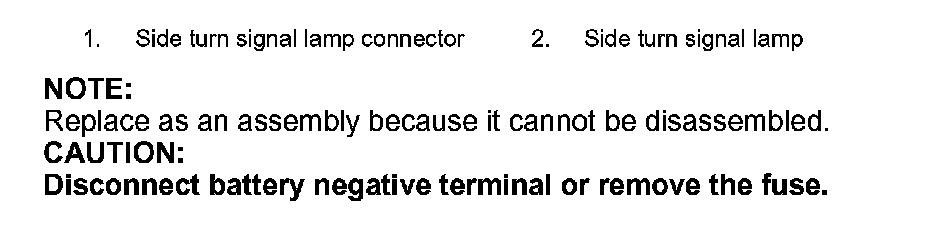

1. Remove the side turn signal lamp in numerical order shown in the figure.

White arrow: Vehicle front (side turn signal lamp LH)
: Vehicle rear (side turn signal lamp RH)

2. Disconnect side turn signal lamp connector.

NOTE:
Support the vehicle-side harness of the side turn signal lamp with tape so that it does not drop inside the front fender.

INSTALLATION
1. Connect the connector.
2. Fix the pawl-side behind the side turn signal lamp housing first, then push the resin clip-side.
