Crankshaft Main Bearing

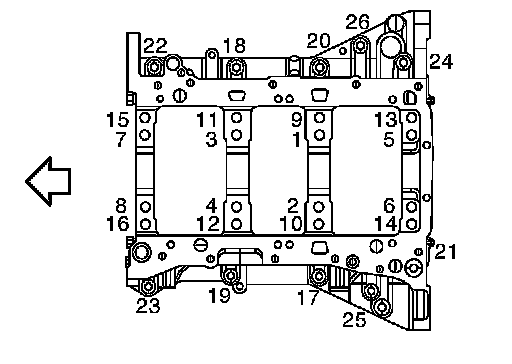

Main bearing cap bolts





Tighten No. 17 to 26 25.0 Nm (2.6 kg-m, 18 ft-lb)
Repeat above step
Tighten No. 1 to 16 35.3 Nm (3.6 kg-m, 26 ft-lb)
Turn bolts No. 1 to 16 90 degrees

MAIN BEARING OIL CLEARANCE Unit: mm (in)

Standard 0.035 - 0.045 (0.0014 - 0.0018)
Limit 0.065 (0.0026)

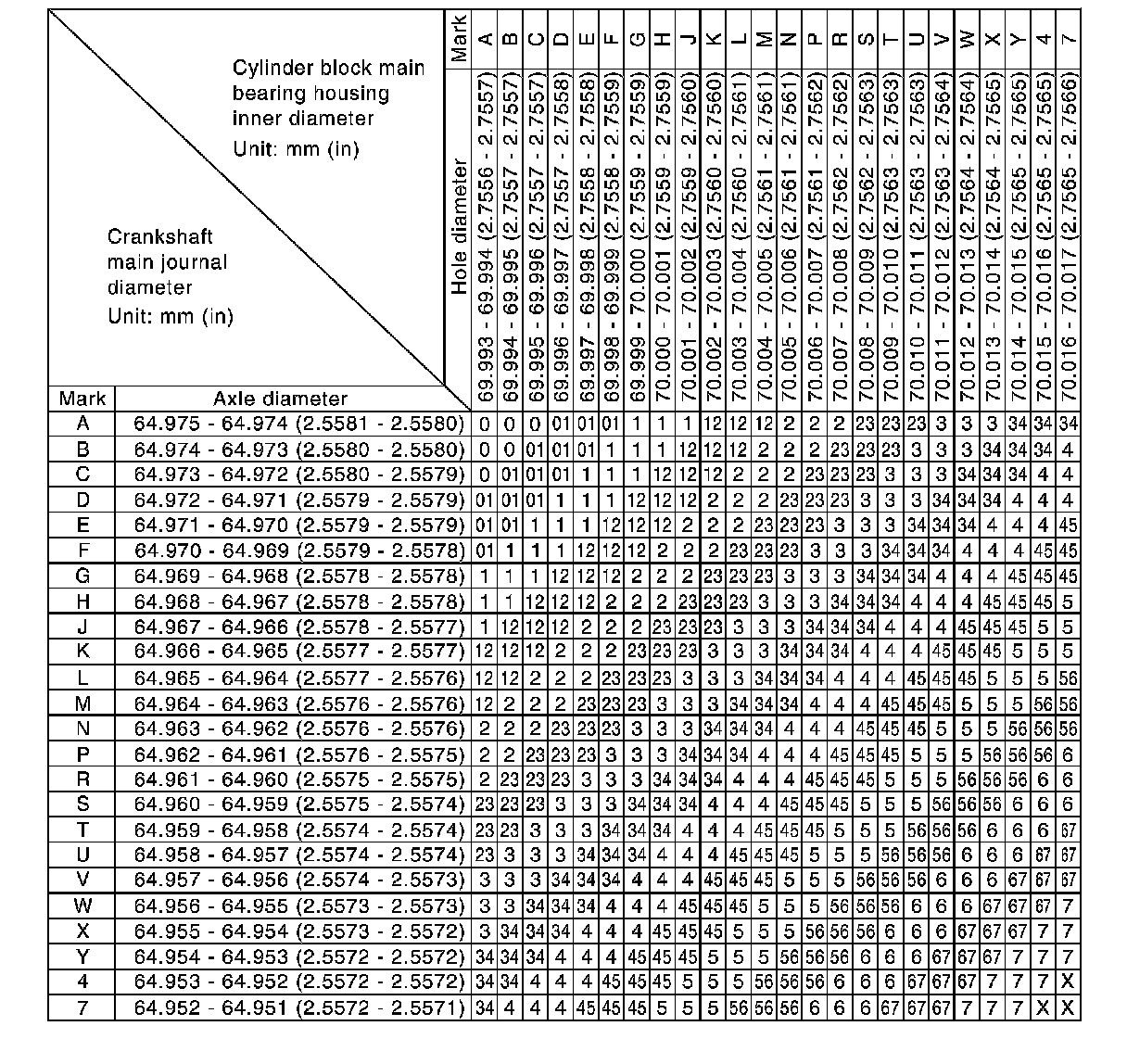

Main Bearing Selection Table
