Intake Manifold

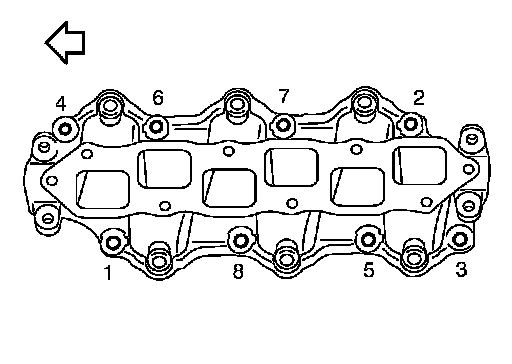

Intake manifold





Stud bolts 10.8 Nm (1.1 kg-m, 96 in-lb)

Intake bolts
1st step 7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after 25.5 Nm (2.6 kg-m, 19 ft-lb)

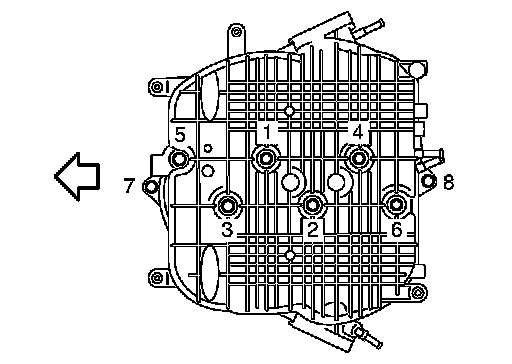

Intake collector

Stud bolts 10.8 Nm (1.1 kg-m, 96 in-lb)





Collector bolts 19.6 Nm (2.0 kg-m, 14 ft lb)
