Removal and Replacement

REAR ACTIVE STEER


Removal and Installation


COMPONENTS











REMOVAL
1. Remove coil spring. Rear Lower Link and Coil Spring.
2. Disconnect harness connector from RAS actuator assembly and rear suspension member.

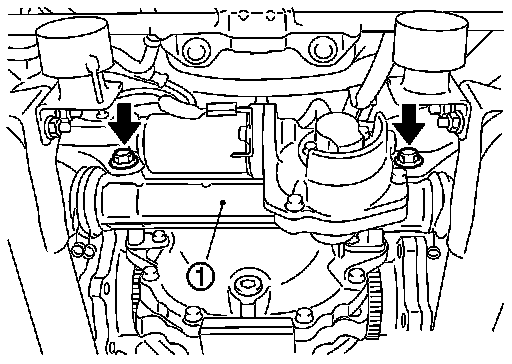

3. Remove fixing bolts and nuts of RAS actuator assembly (1), and then remove RAS actuator assembly (1) from rear suspension member.

INSTALLATION
- Installation is the reverse order of removal. For tightening torque, refer to "COMPONENTS".
- When installing RAS actuator assembly to rear suspension member, check the mounting surfaces of RAS actuator assembly and rear suspension member for oil, dirt, sand, or other foreign materials.
- To perform the neutral position adjustment. .
