Direct Clutch

REPAIR FOR COMPONENT PARTS


Direct Clutch

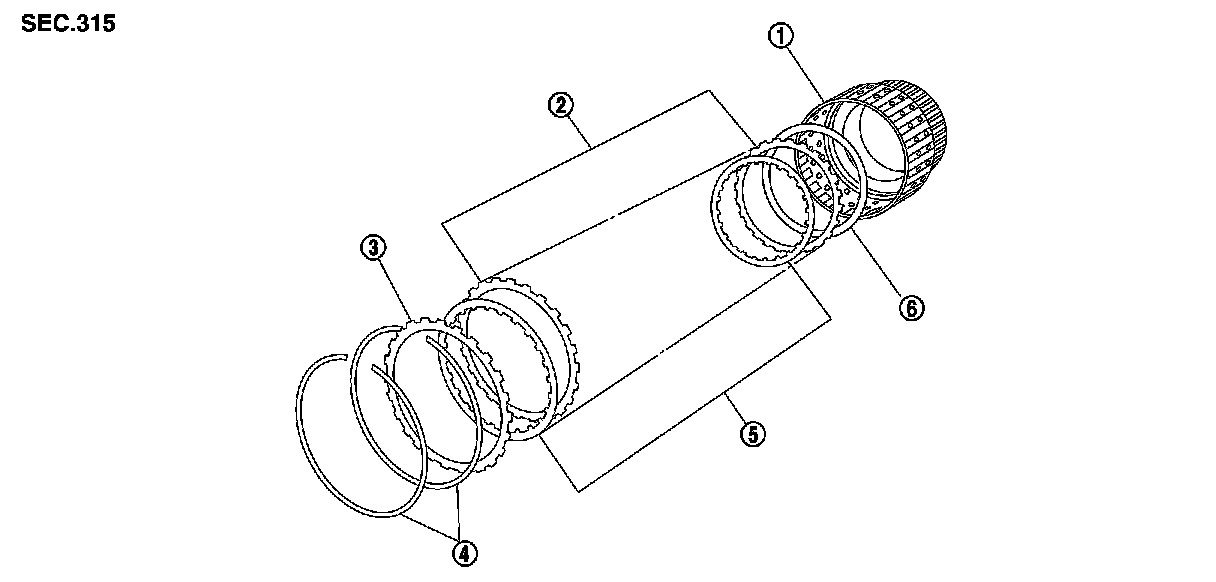

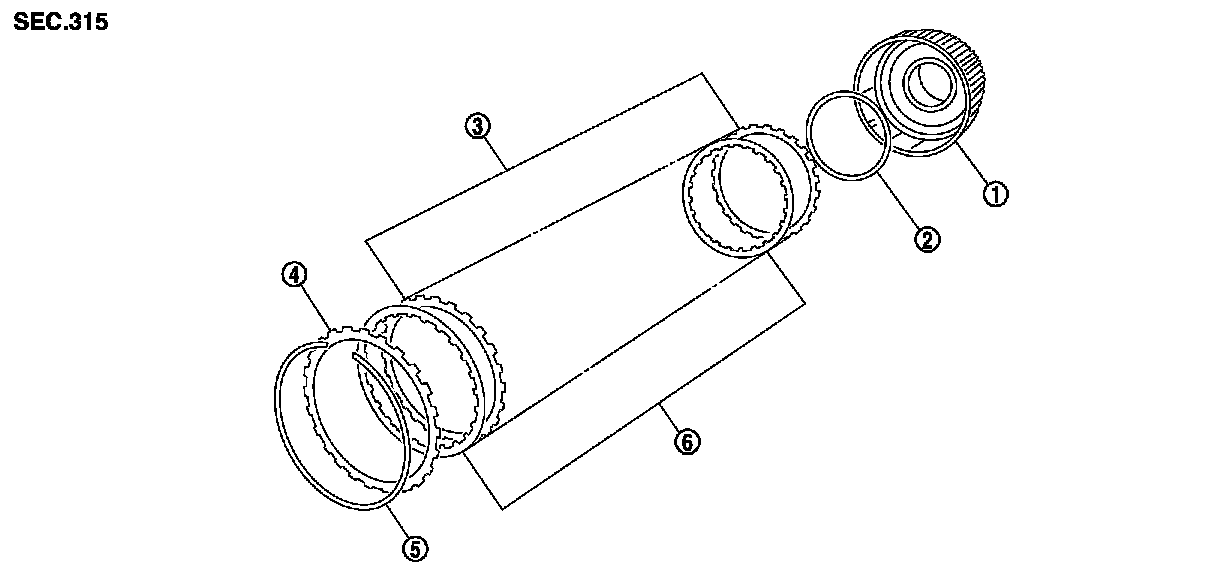

COMPONENTS
VQ35HR models










VK45DE models











DISASSEMBLY

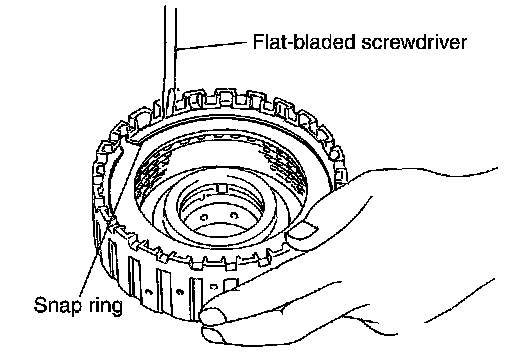

1. Using a flat-bladed screwdriver, remove snap ring from direct clutch drum.
2. Remove drive plates, driven plates, dish plate and retaining plates from direct clutch drum.

INSPECTION
- Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Ring
- Check for deformation, fatigue or damage.

Direct Clutch Drive Plates and Driven Plates
- Check facing for burns, cracks or damage.

Direct Clutch Dish Plate and Retaining Plates
- Check facing for burns, cracks or damage.

ASSEMBLY
1. Install drive plates, driven plates, dish plate and retaining plates in direct clutch drum.

CAUTION:
Take care with the order of plates.

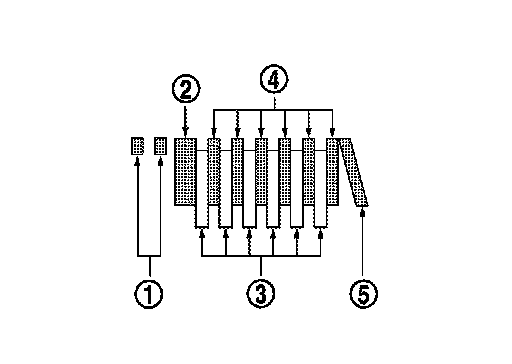

- VQ35HR models

1: Snap ring
2: Retaining plate
3: Drive plate
4: Driven plate
5: Dish plate
5/5: Drive plate/Driven plate





- VK45DE models

1: Snap ring
2: Retaining plate
3: Drive plate
4: Driven plate
5: Dish plate
6/6: Drive plate/Driven plate





2. Using a flat-bladed screwdriver, install snap ring in direct clutch drum.
