Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2010
>>
M35x AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Description and Operation
>>
Schematic
Schematic
AWD SYSTEM
Schematic

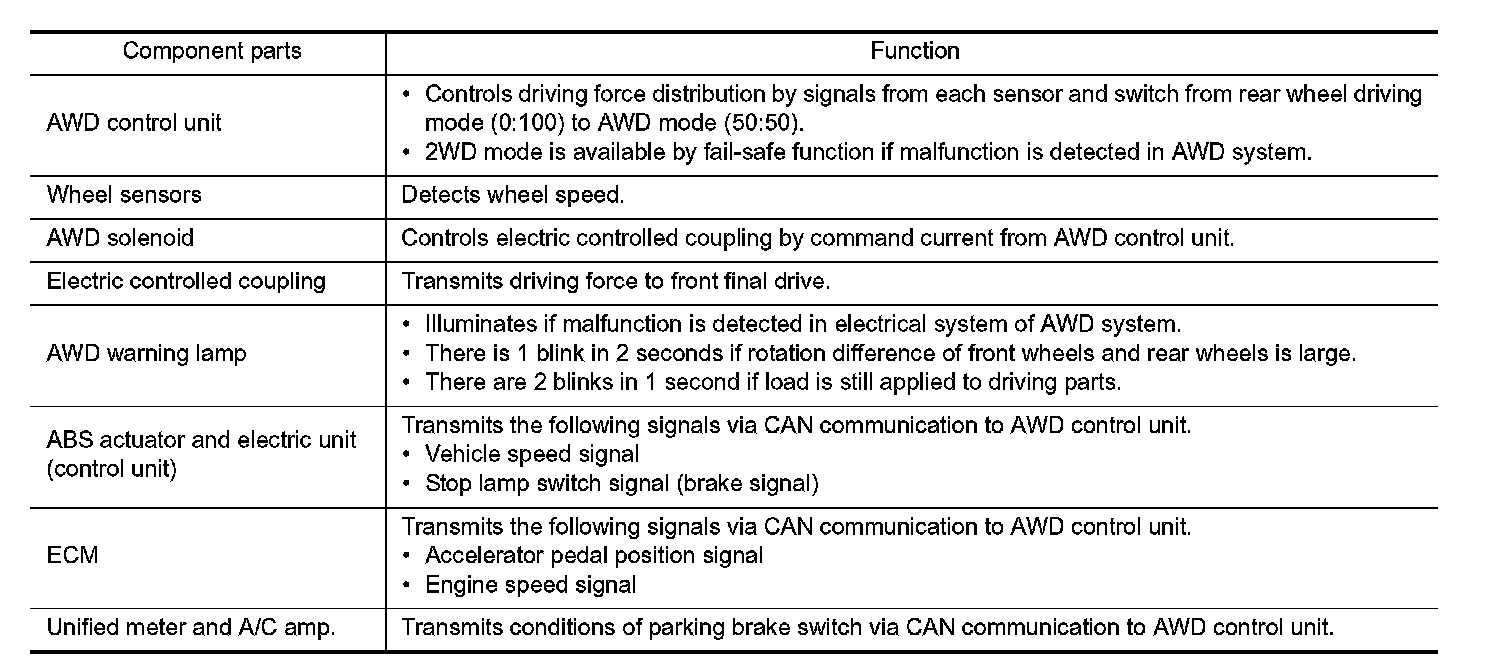

COMPONENTS FUNCTION DESCRIPTION
