Windshield Washer Spray Nozzle: Service and Repair

FRONT WIPER AND WASHER SYSTEM


Removal and Installation of Front Washer Nozzle


REMOVAL
1. Open hood, and turn off the washer hose seal rubber.

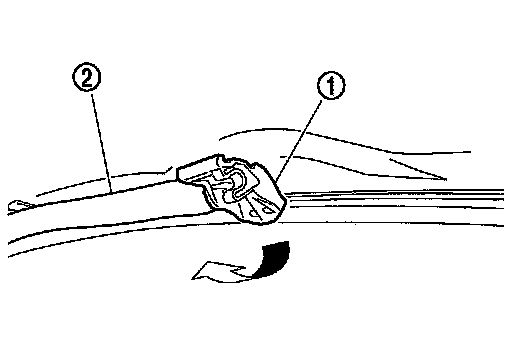

2. While pushing nozzle spray point side along body, use the nozzle stop point as the support point and rotate nozzle (1) to remove it from body.
3. Remove washer tube (2).

INSTALLATION
1. Install washer tube in nozzle.
2. Install nozzle to the vehicle.
3. Adjust nozzle spray location. Adjustments.

CAUTION:
The spray points differ, so be sure to install left and right nozzles correctly.
