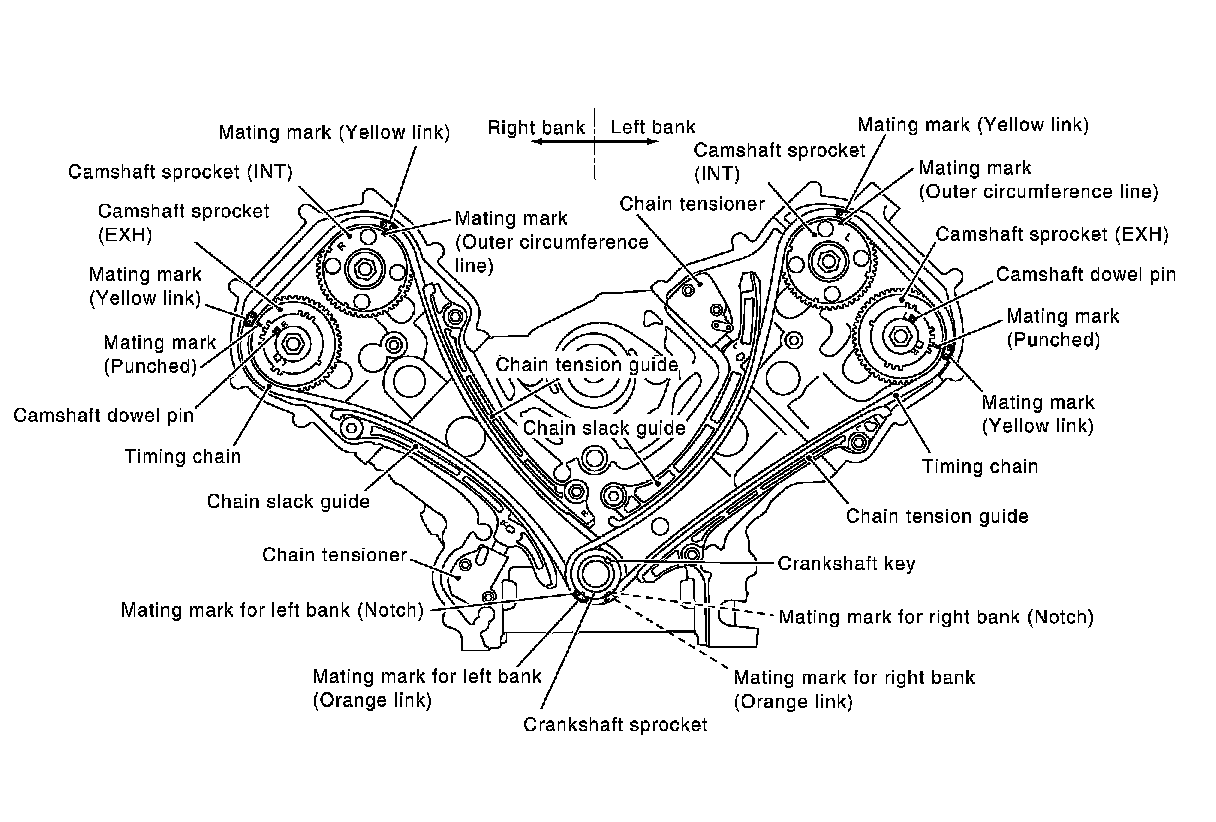

Timing Component Alignment Marks
For Alignment procedure refer to Timing Chain Removal and
Replacement.
