AV - / Bose Surround Audio 5.1CH System





AV CONTROL UNIT

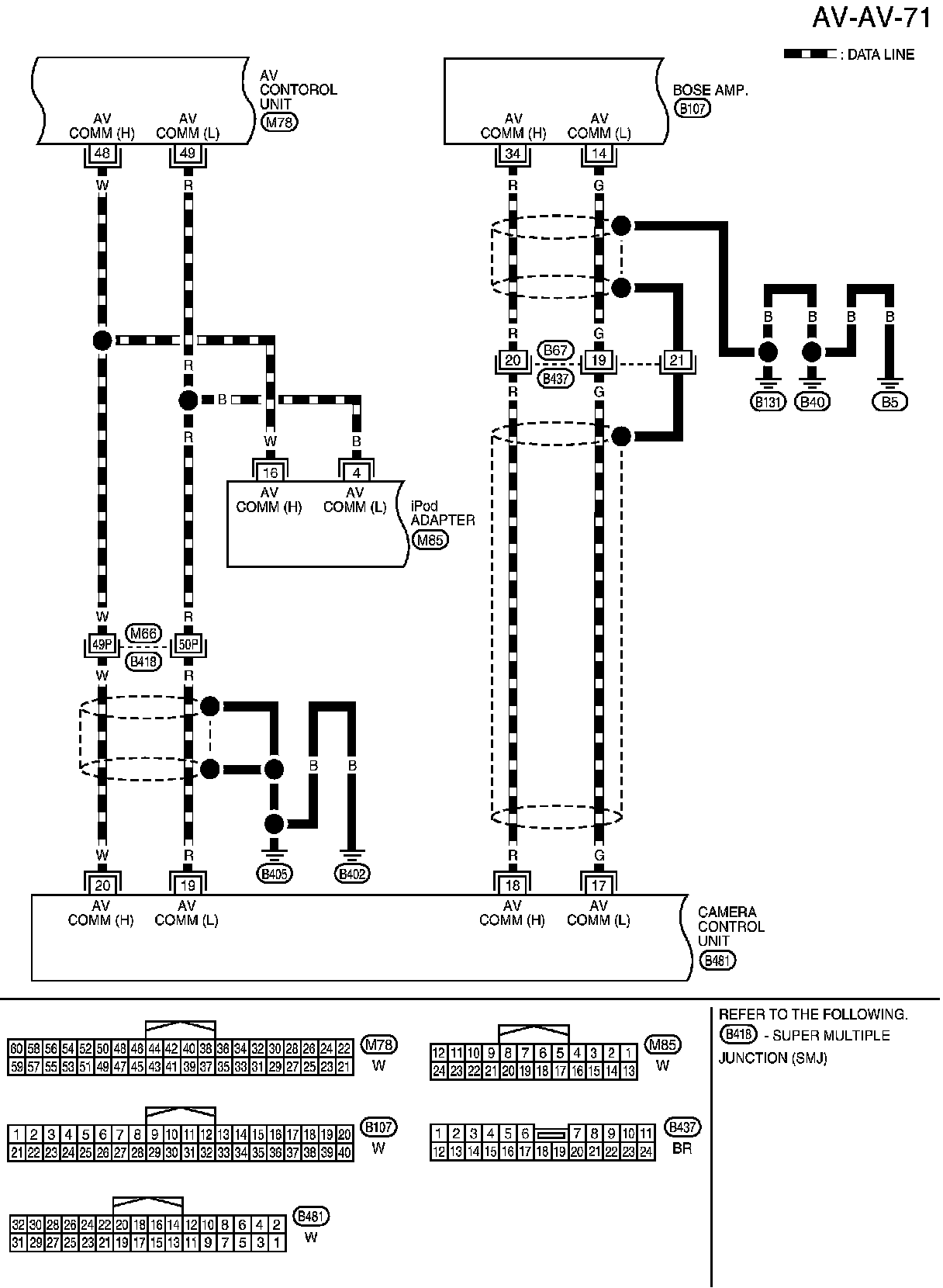

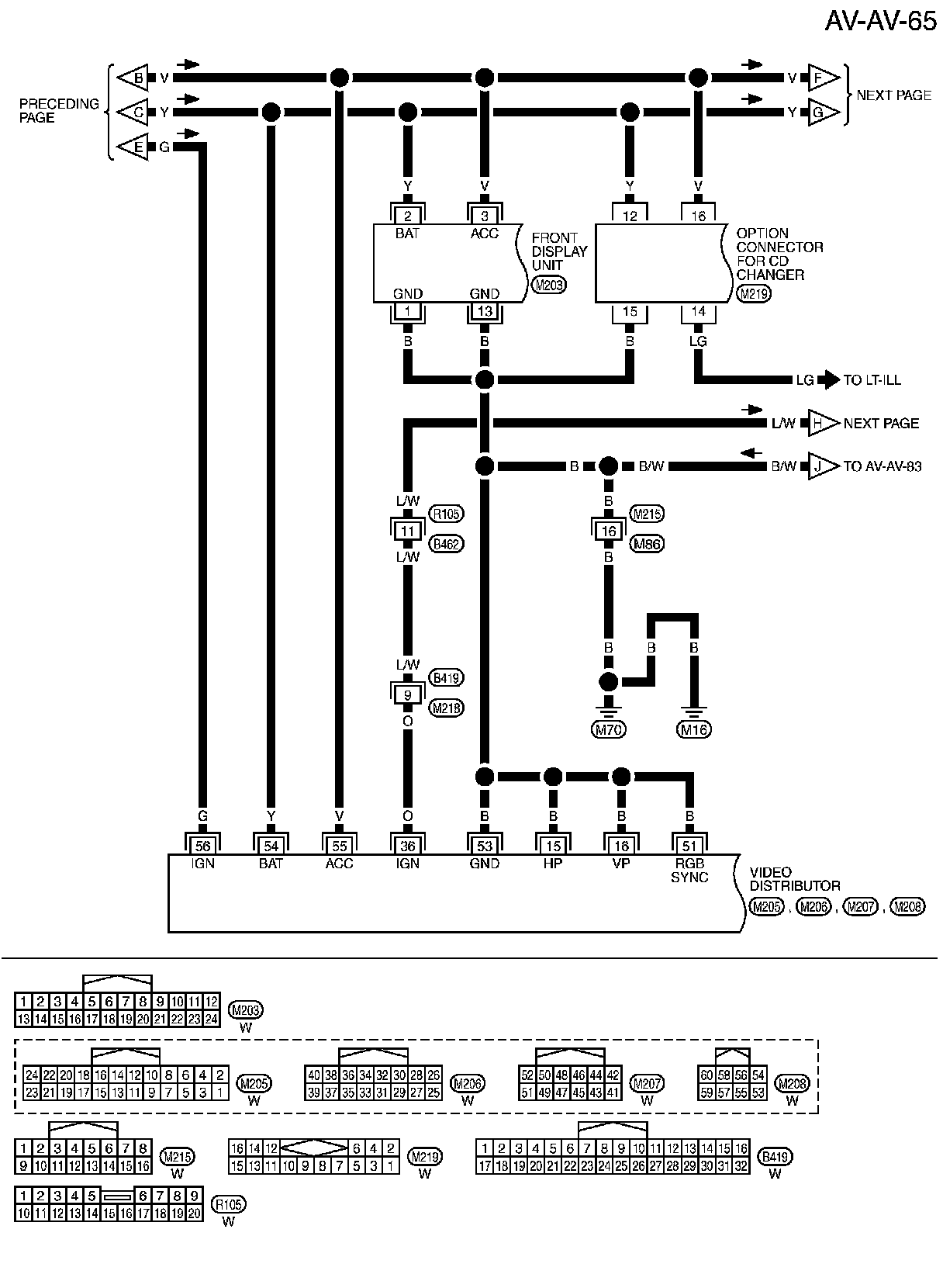

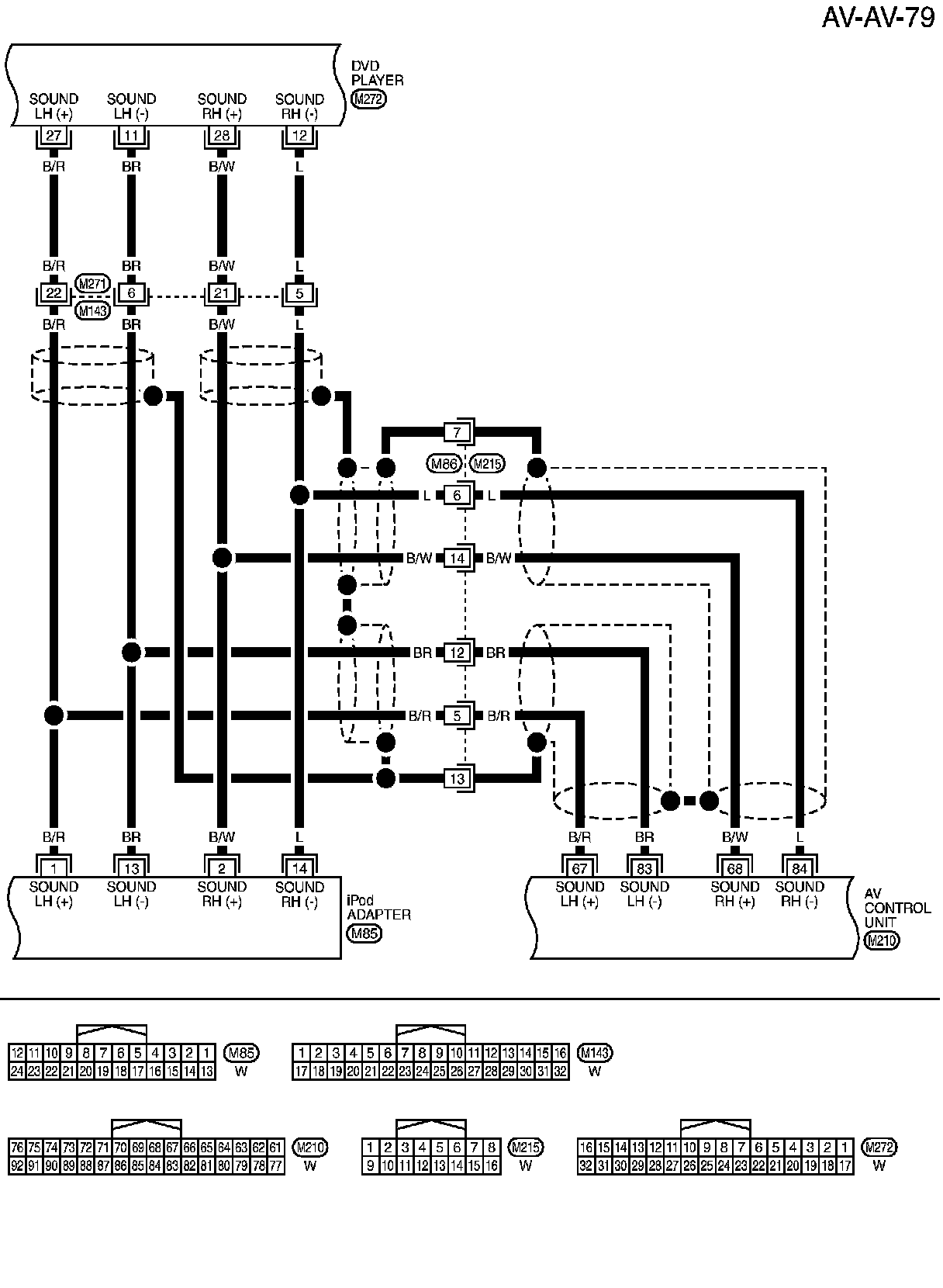

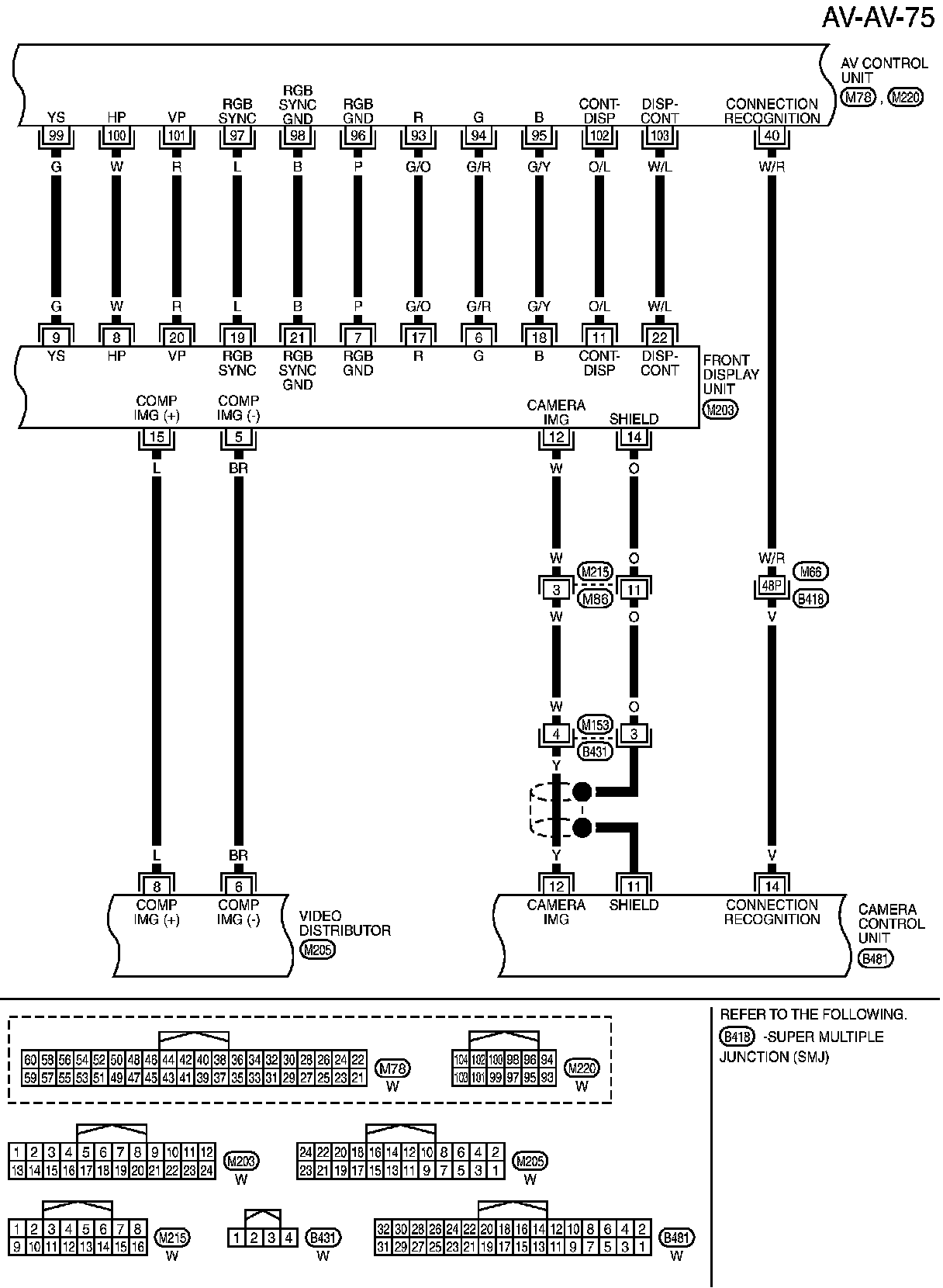

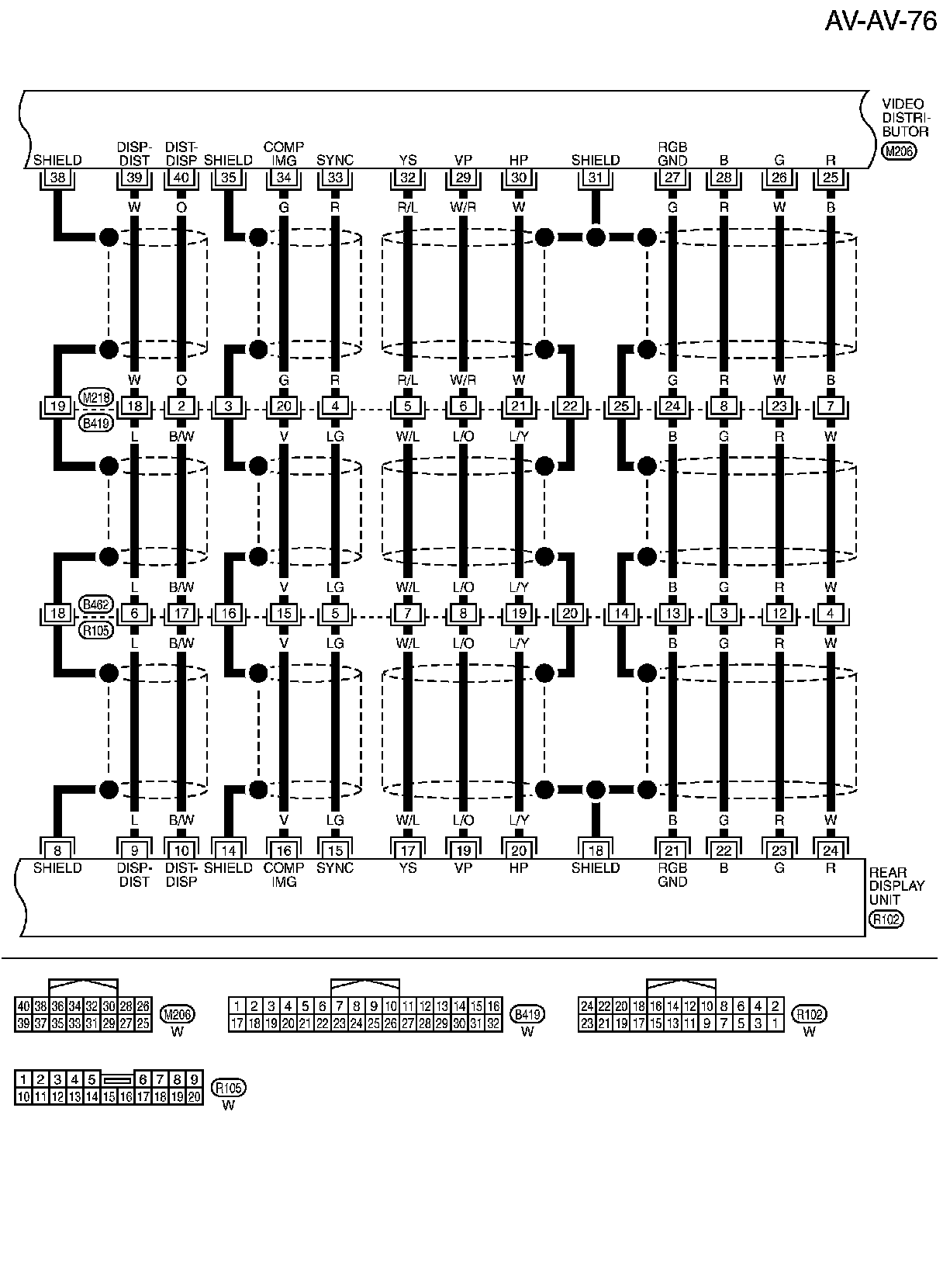

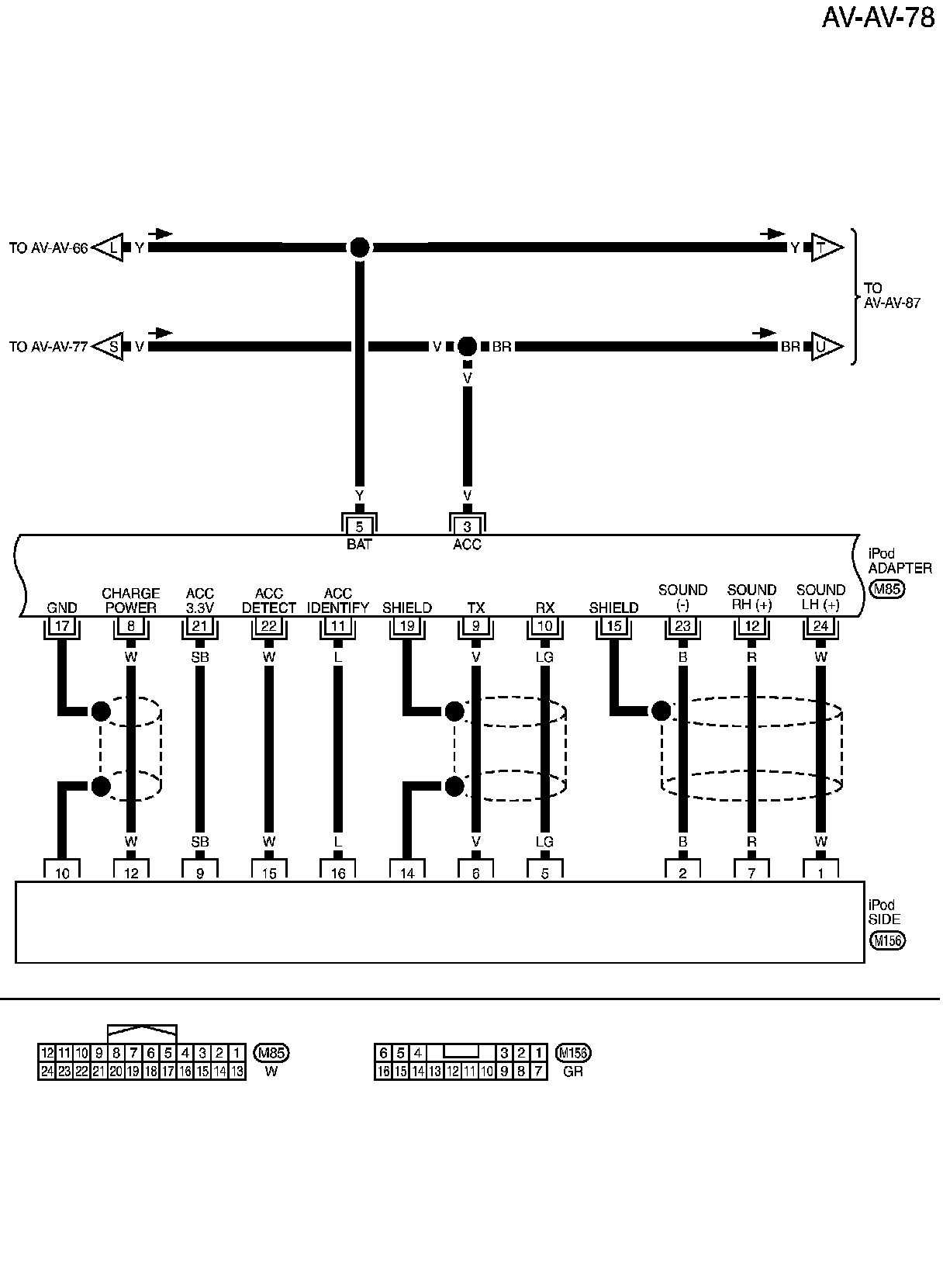

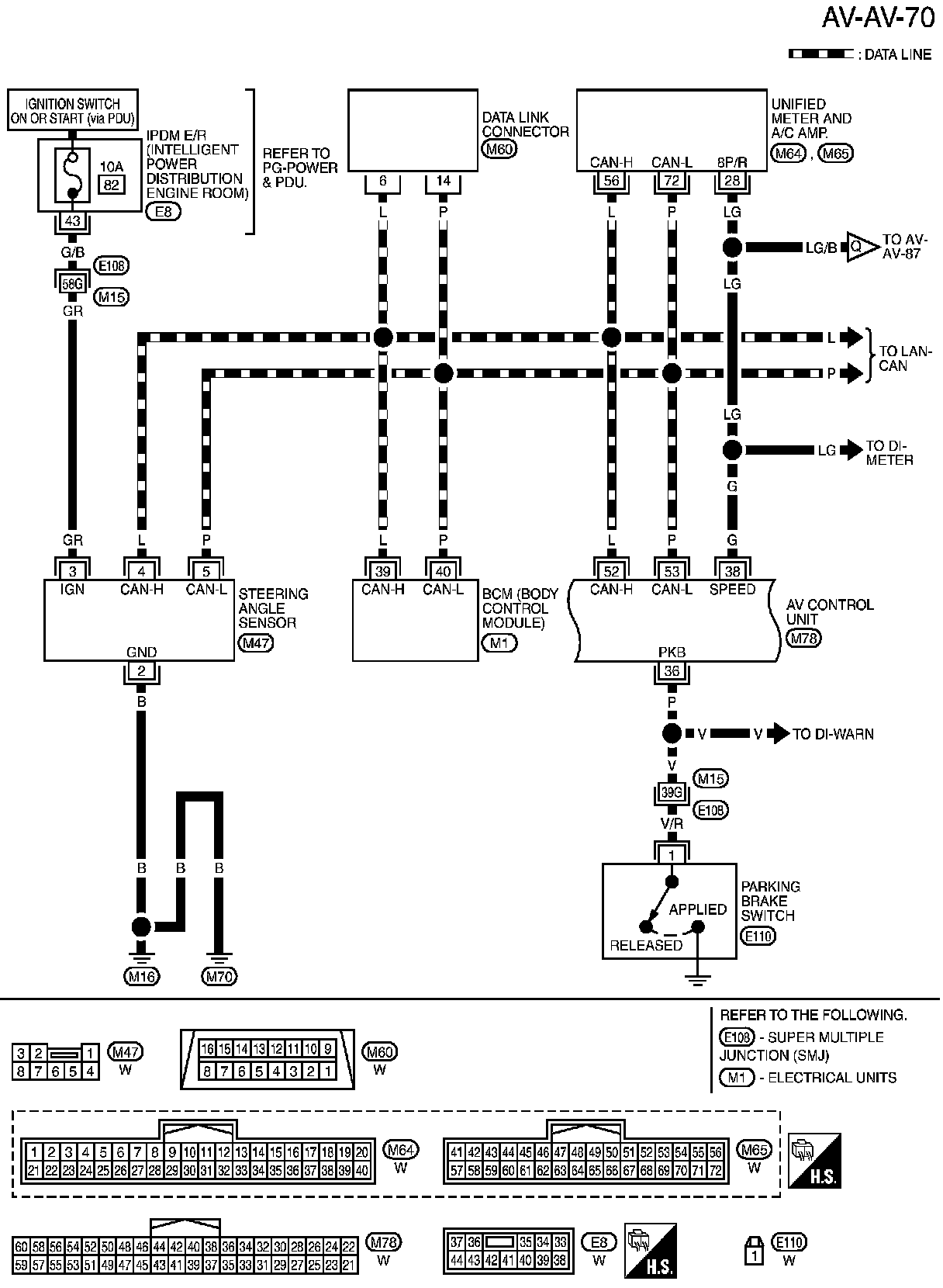

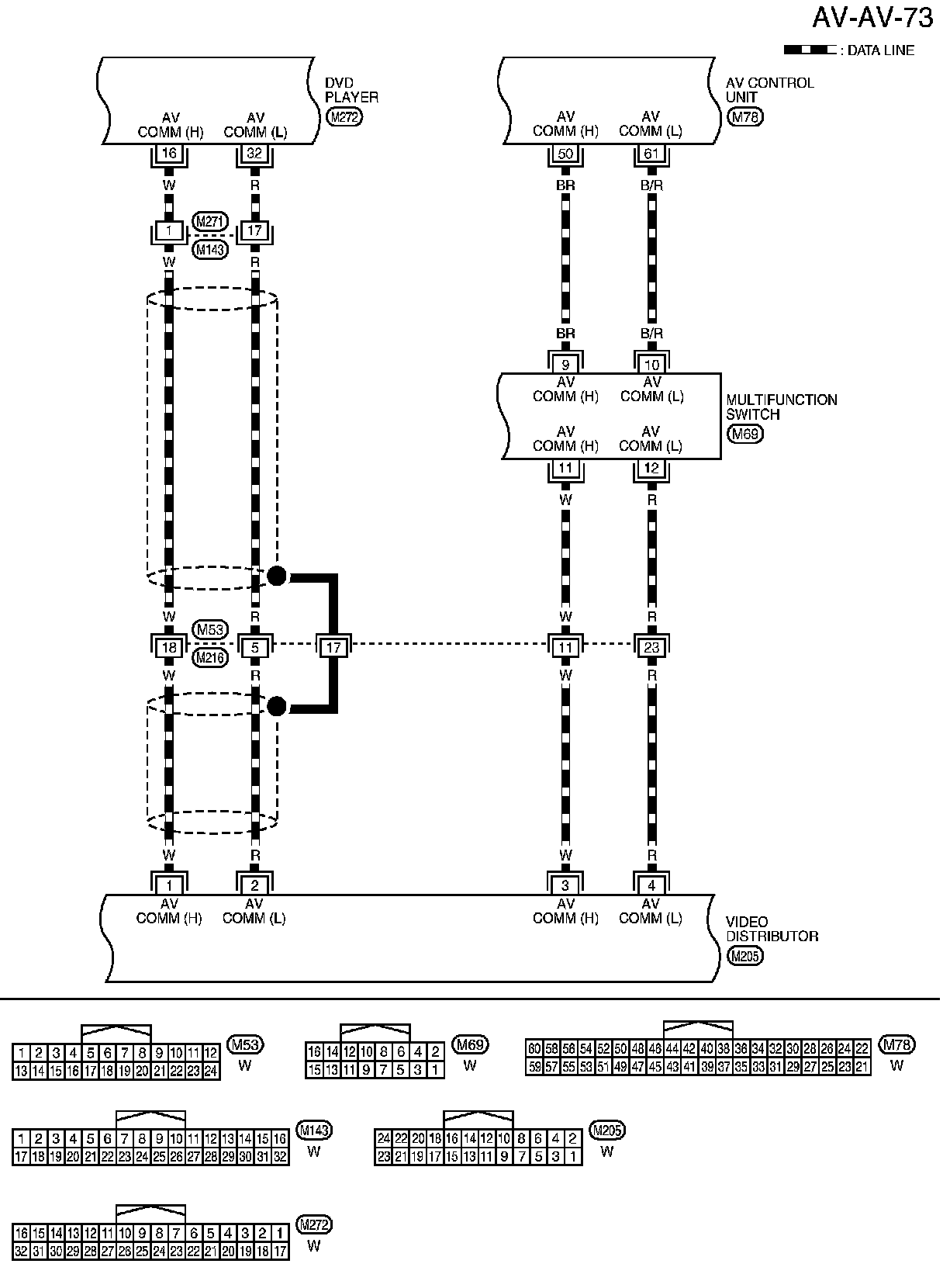

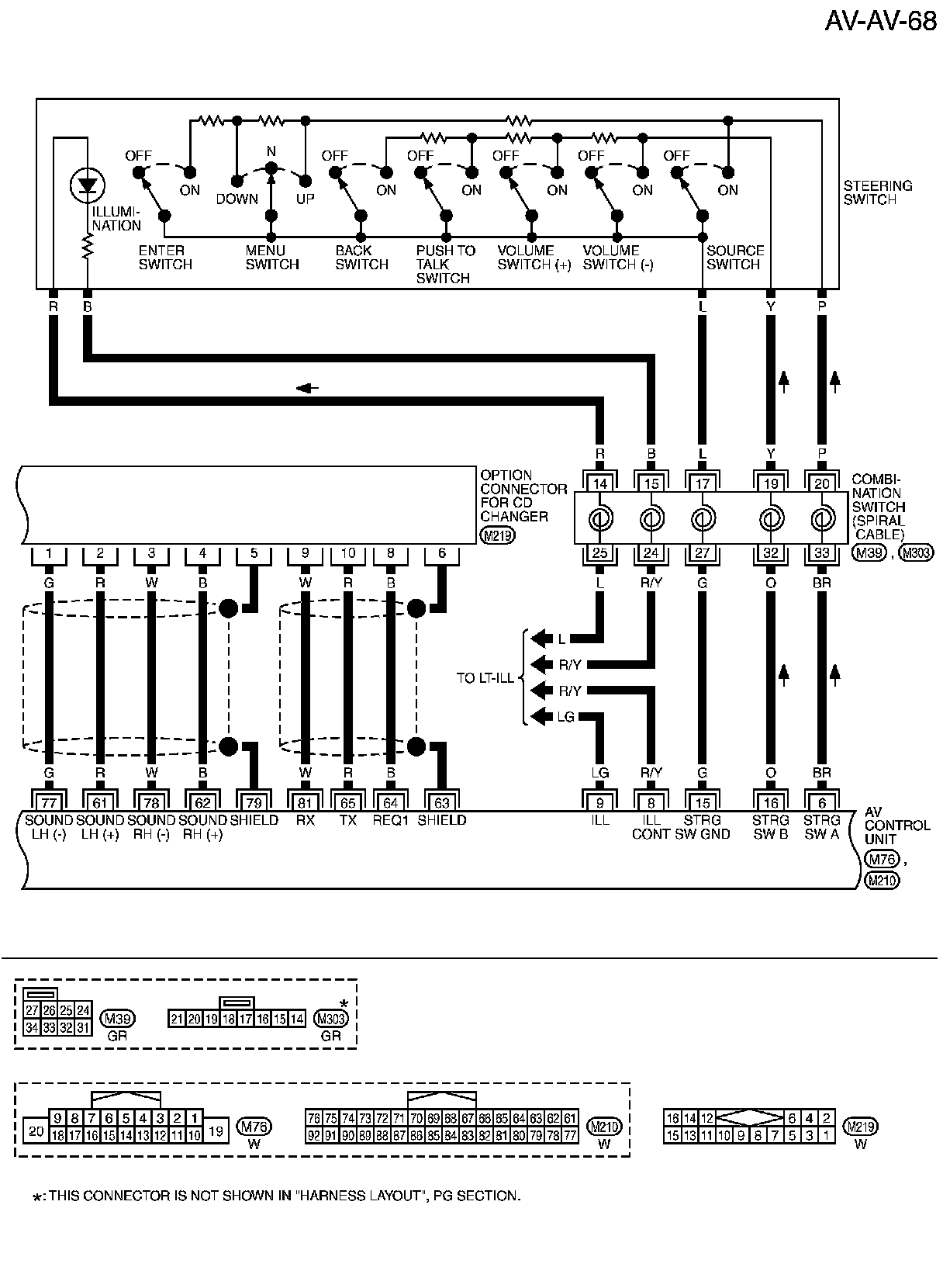

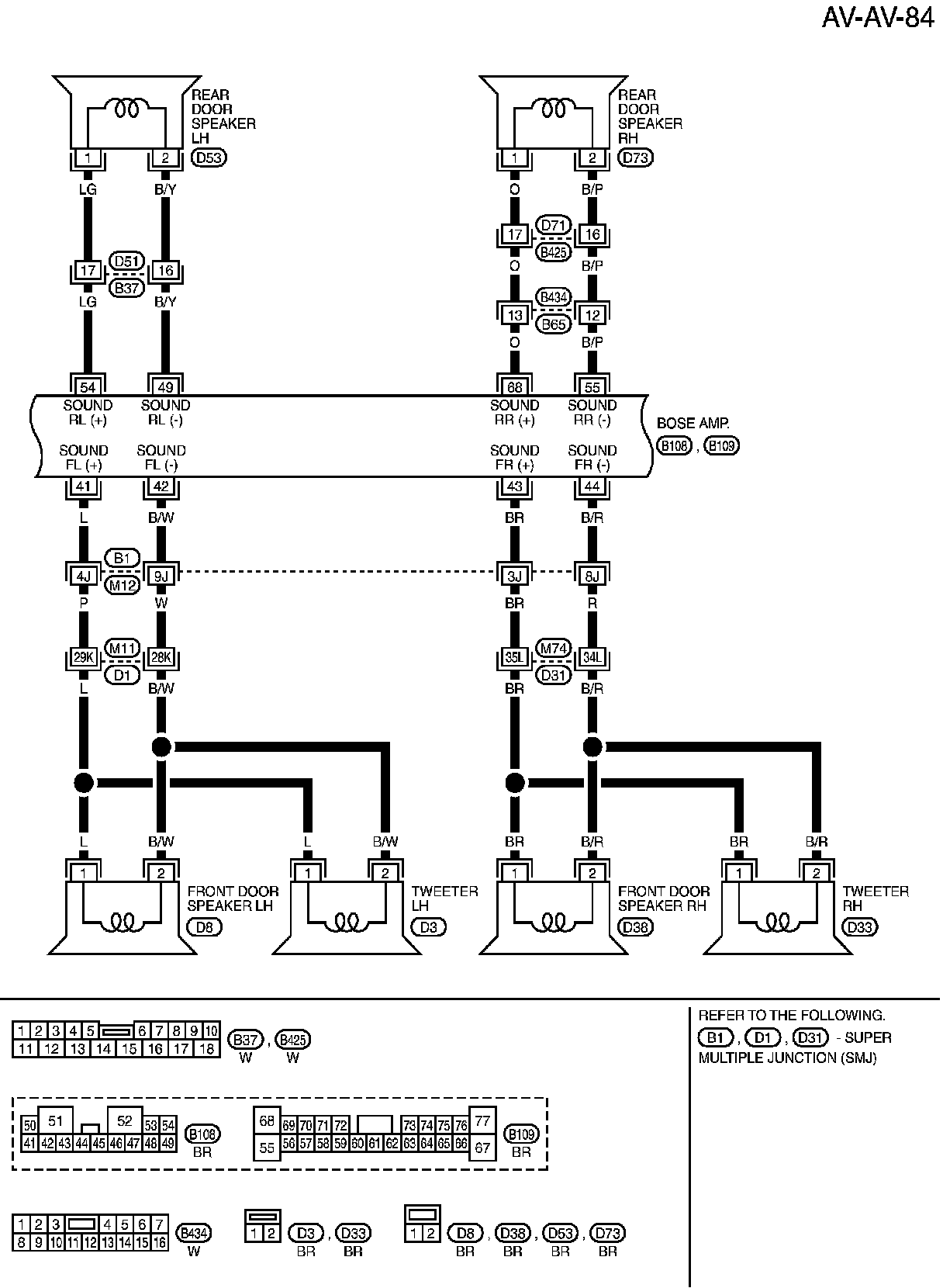

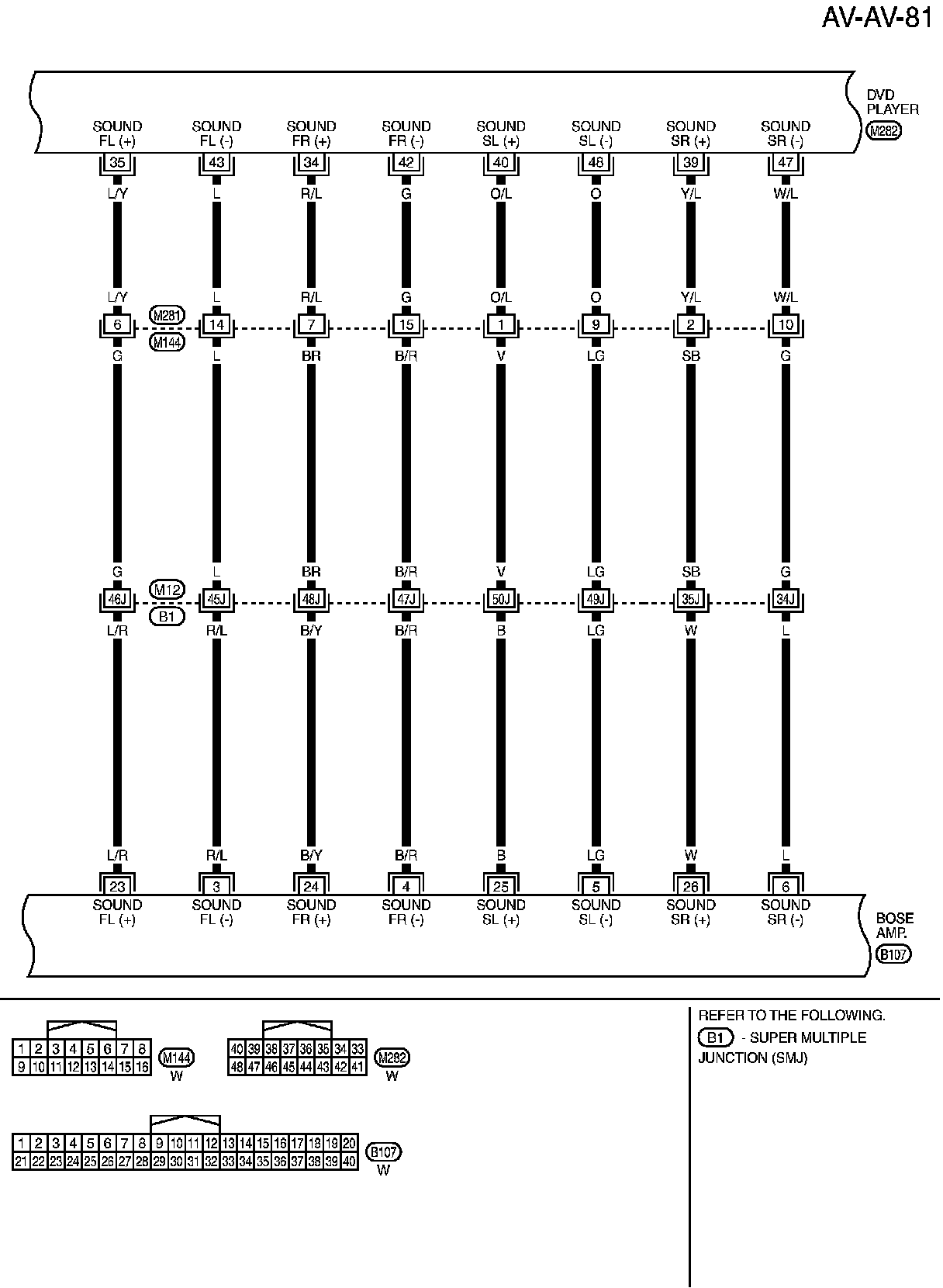

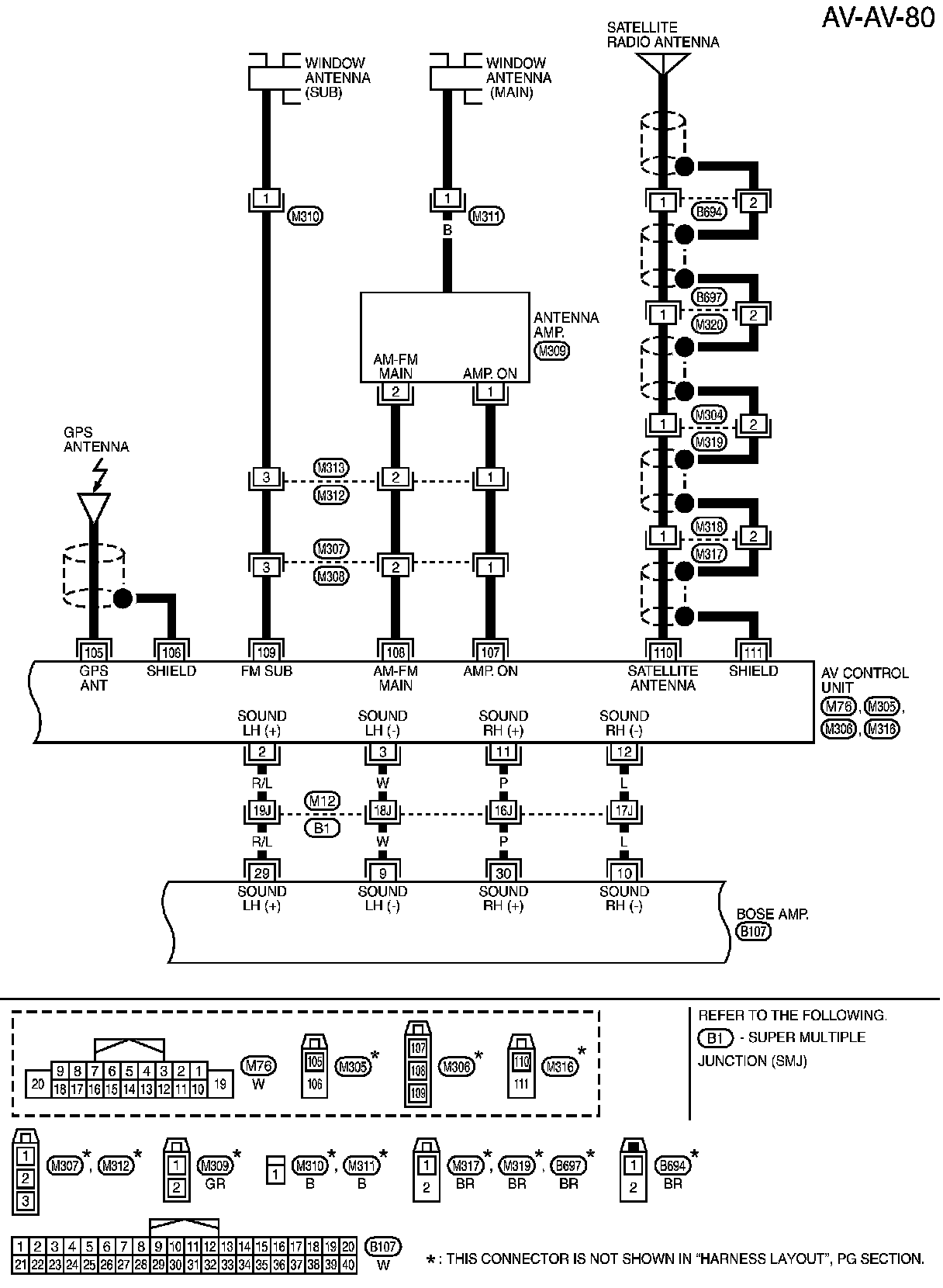

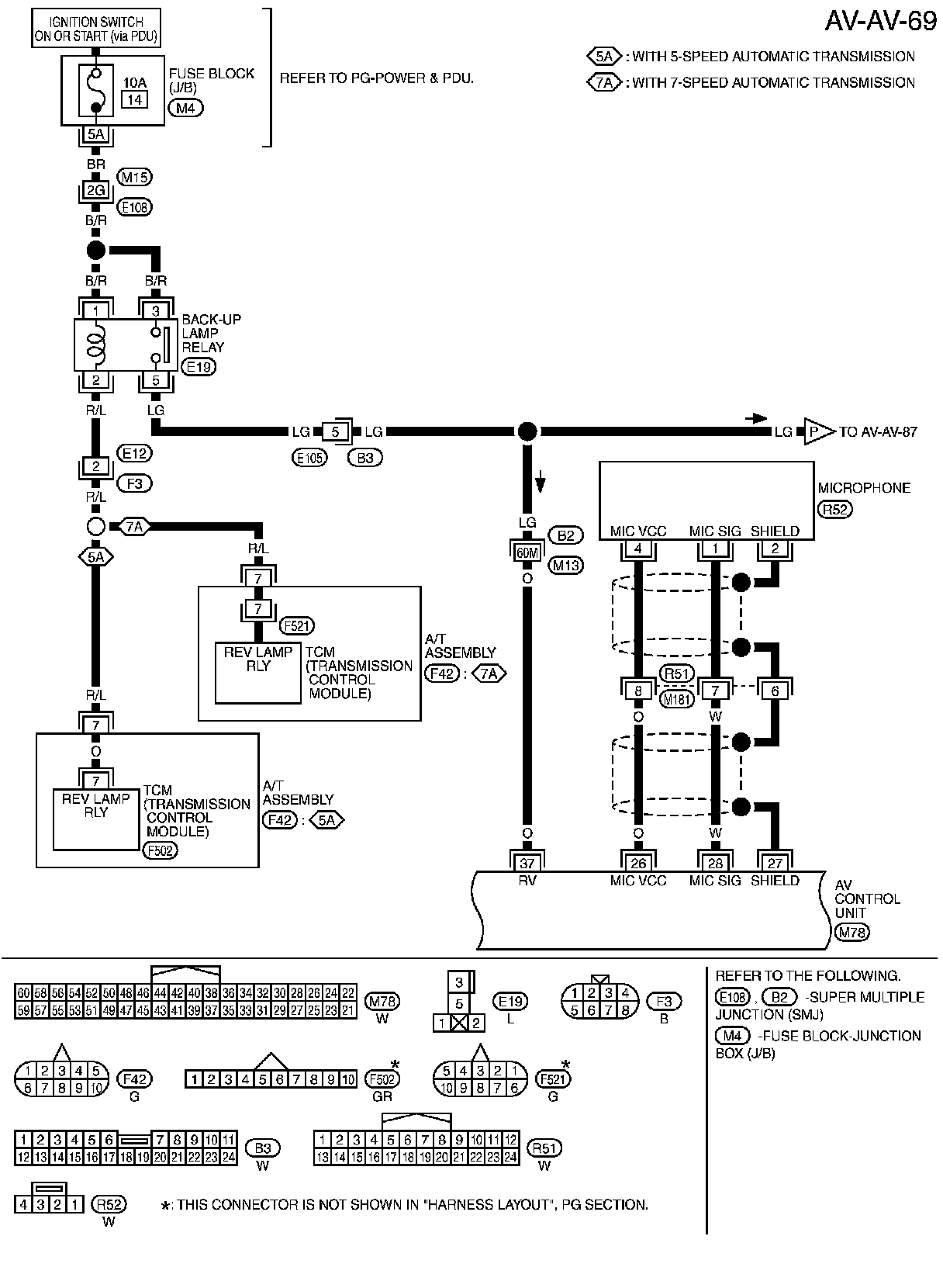

Wiring Diagram - AV - / BOSE Surround Audio 5.1ch System


NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
