Engine Oil Pressure





SERVICE DATA AND SPECIFICATIONS (SDS)


Standard and Limit

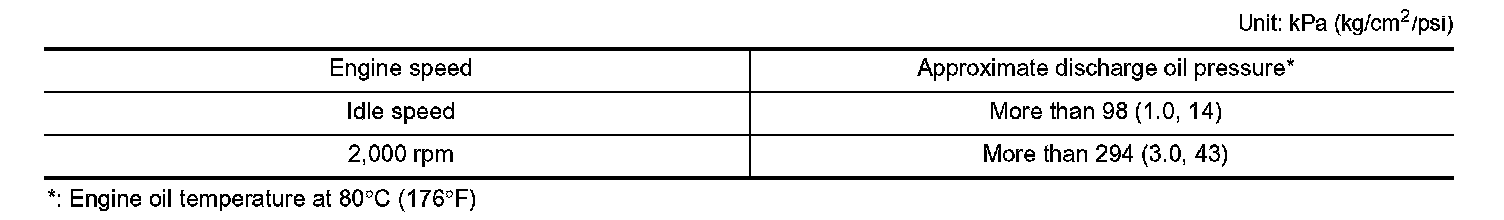

ENGINE OIL PRESSURE

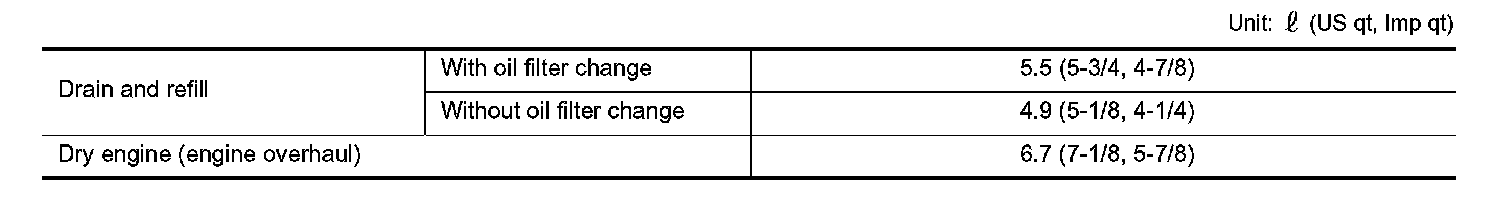

ENGINE OIL CAPACITY (APPROXIMATE)

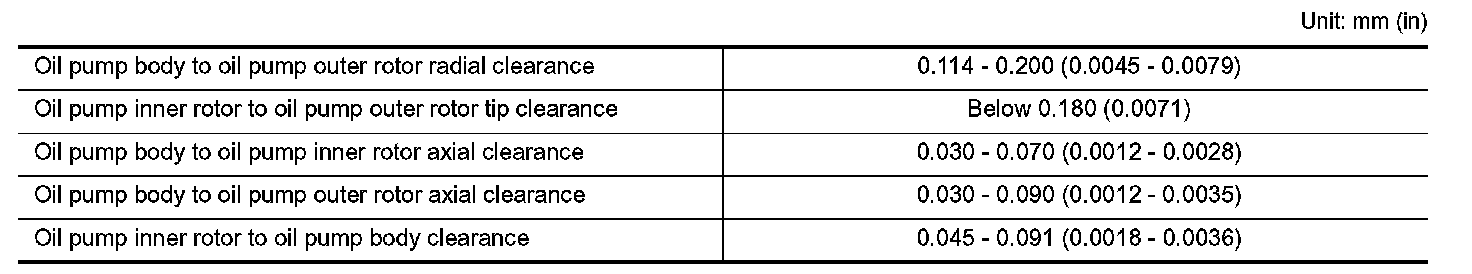

OIL PUMP






REGULATOR VALVE
