Intake Manifold

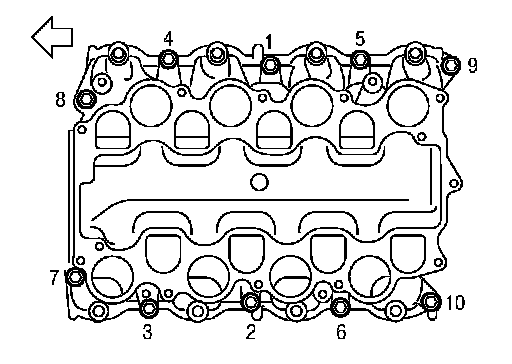

Intake Manifold (Lower)





M8 � 90 mm (3.54 in) : 7, 8
M8 � 35 mm (1.38 in) : Except the above

Lower bolts 27.9 (2.8 kg-m, 21 ft lb)

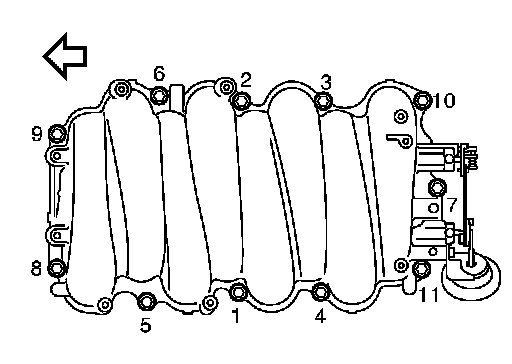

Intake Manifold (Upper)





Upper bolts 24.5 Nm (2.5 kg-m, 18 ft lb)
