Sunroof Motor Assembly
Sunroof Motor Assembly
SUNROOF MOTOR ASSEMBLY

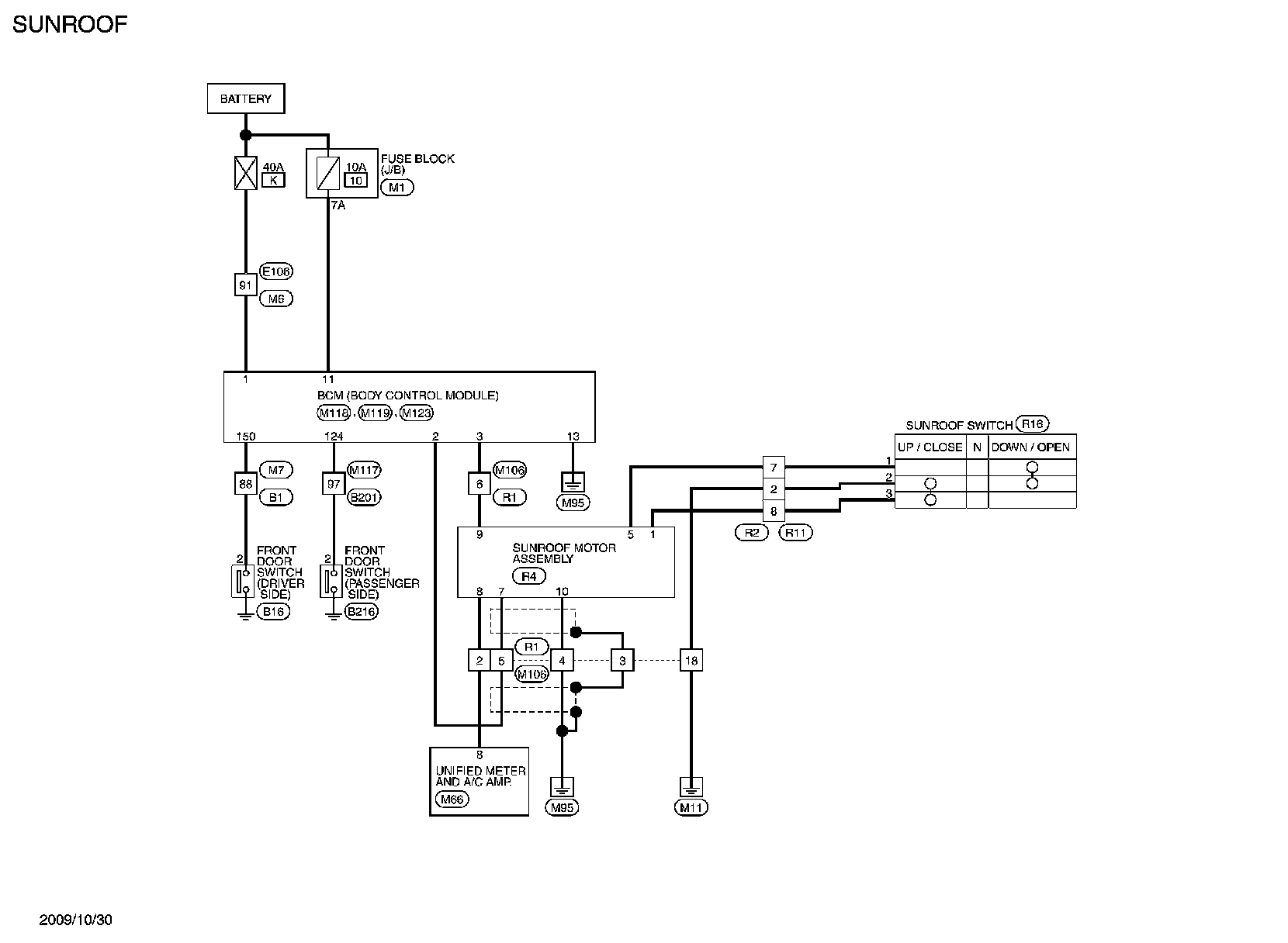

Wiring Diagram - SUNROOF CONTROL SYSTEM -
