Passenger Side Heated Seat System (With M/T)
Passenger Side Heated Seat System (With M/T)
HEATED SEAT CONTROL UNIT

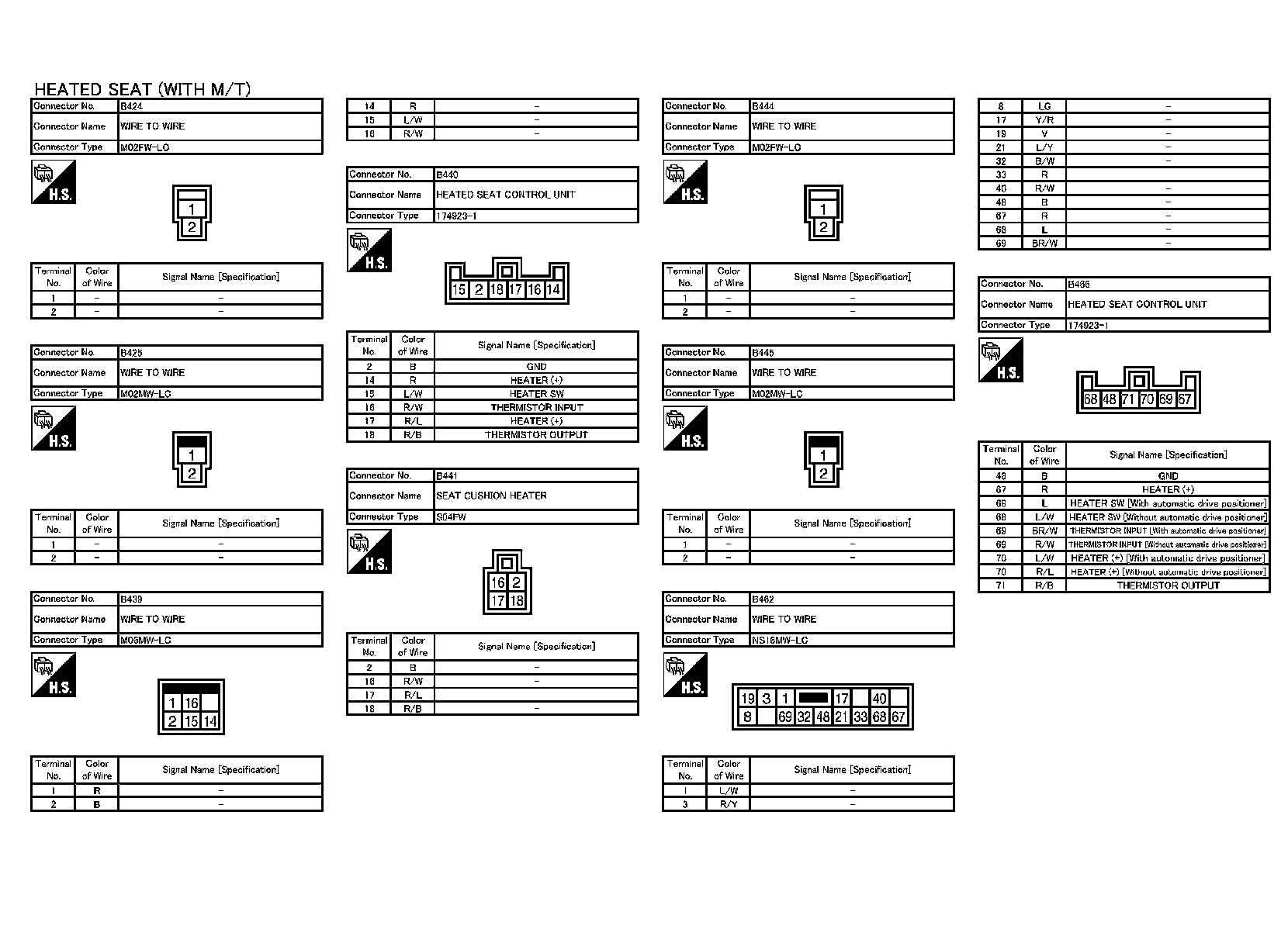

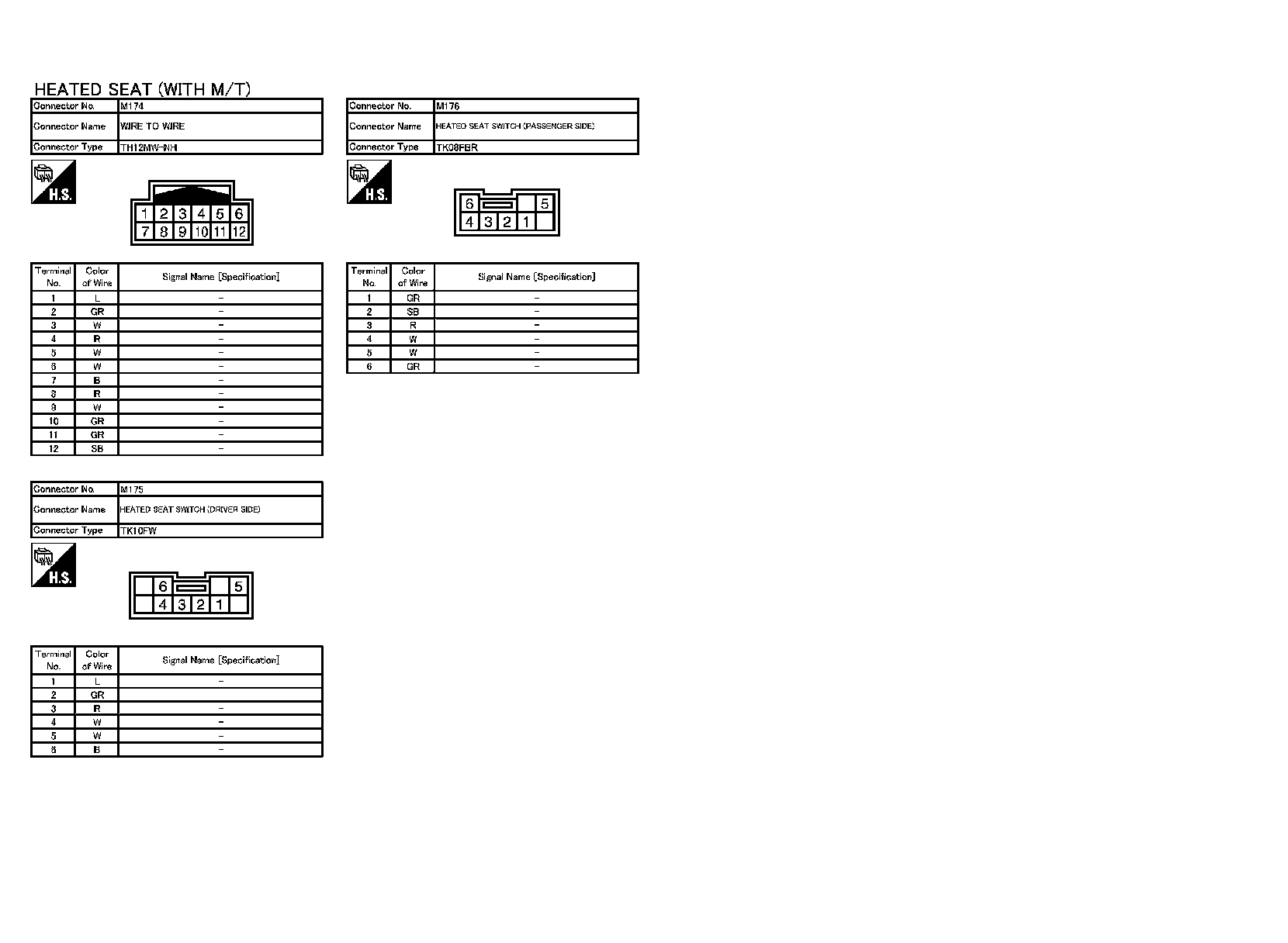

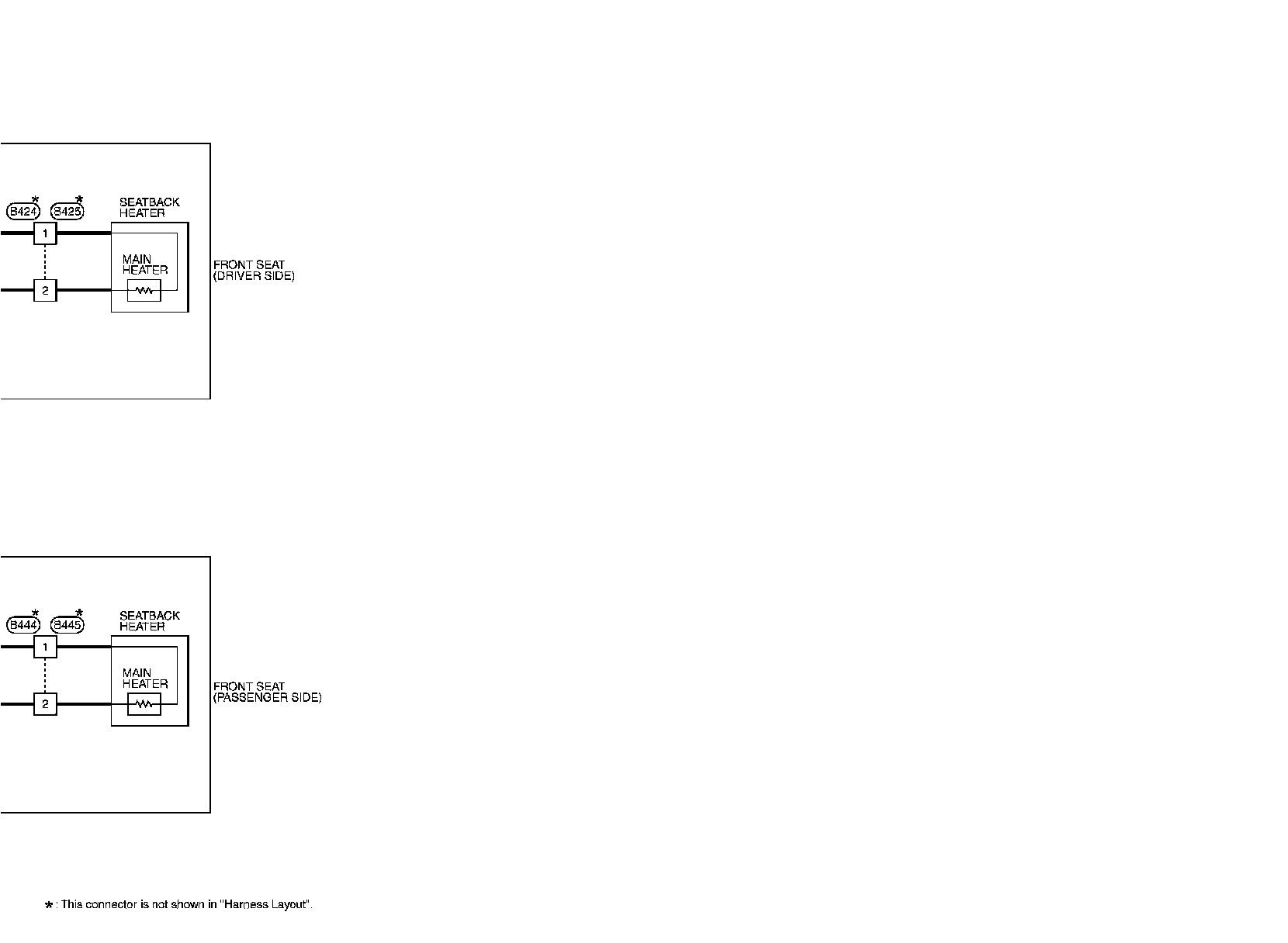

PASSENGER SIDE : Wiring Diagram - HEATED SEAT SYSTEM (WITH M/T) -
