Front Power Window Switch Front Window Anti-Pinch





FRONT POWER WINDOW SWITCH

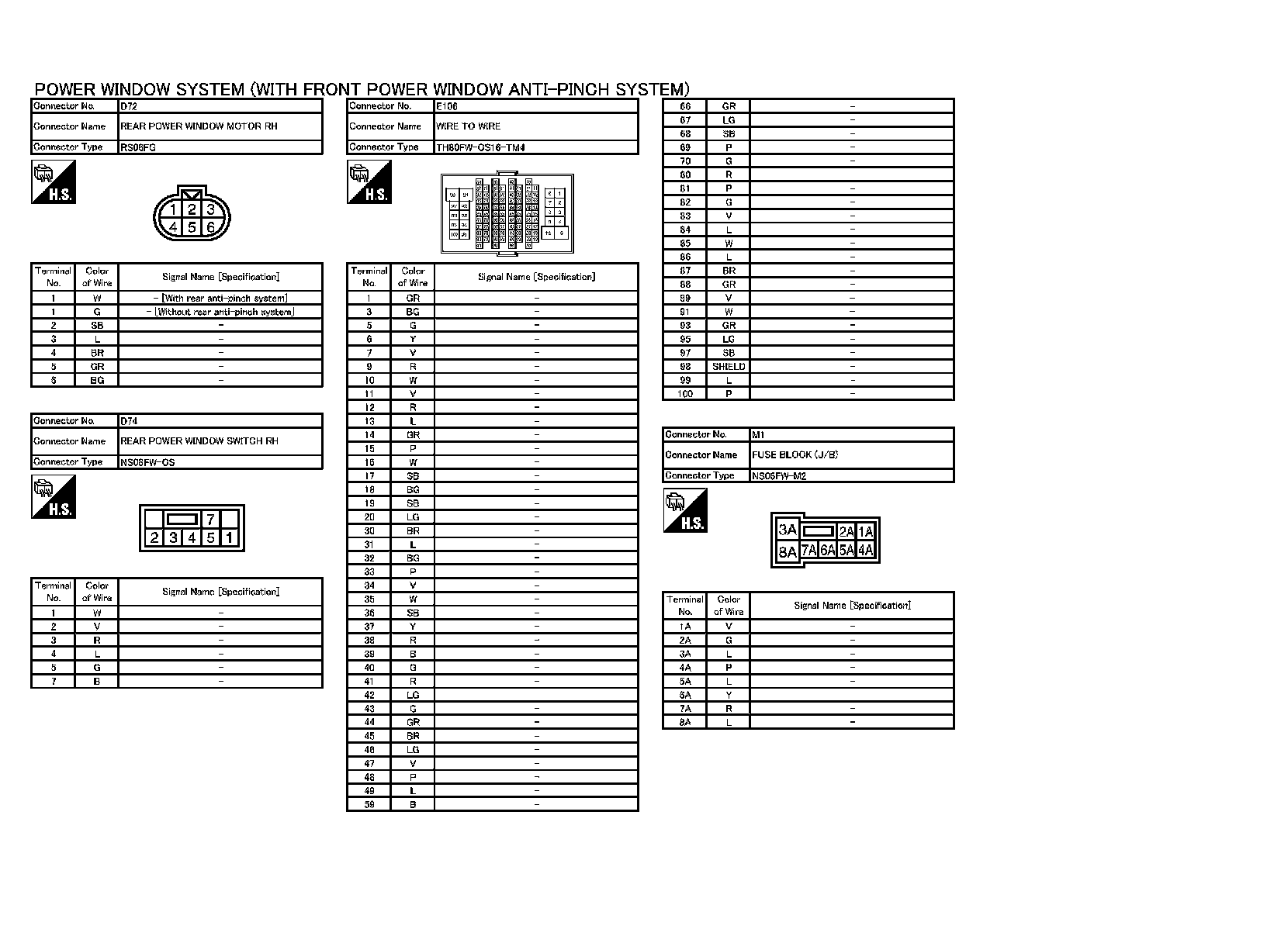

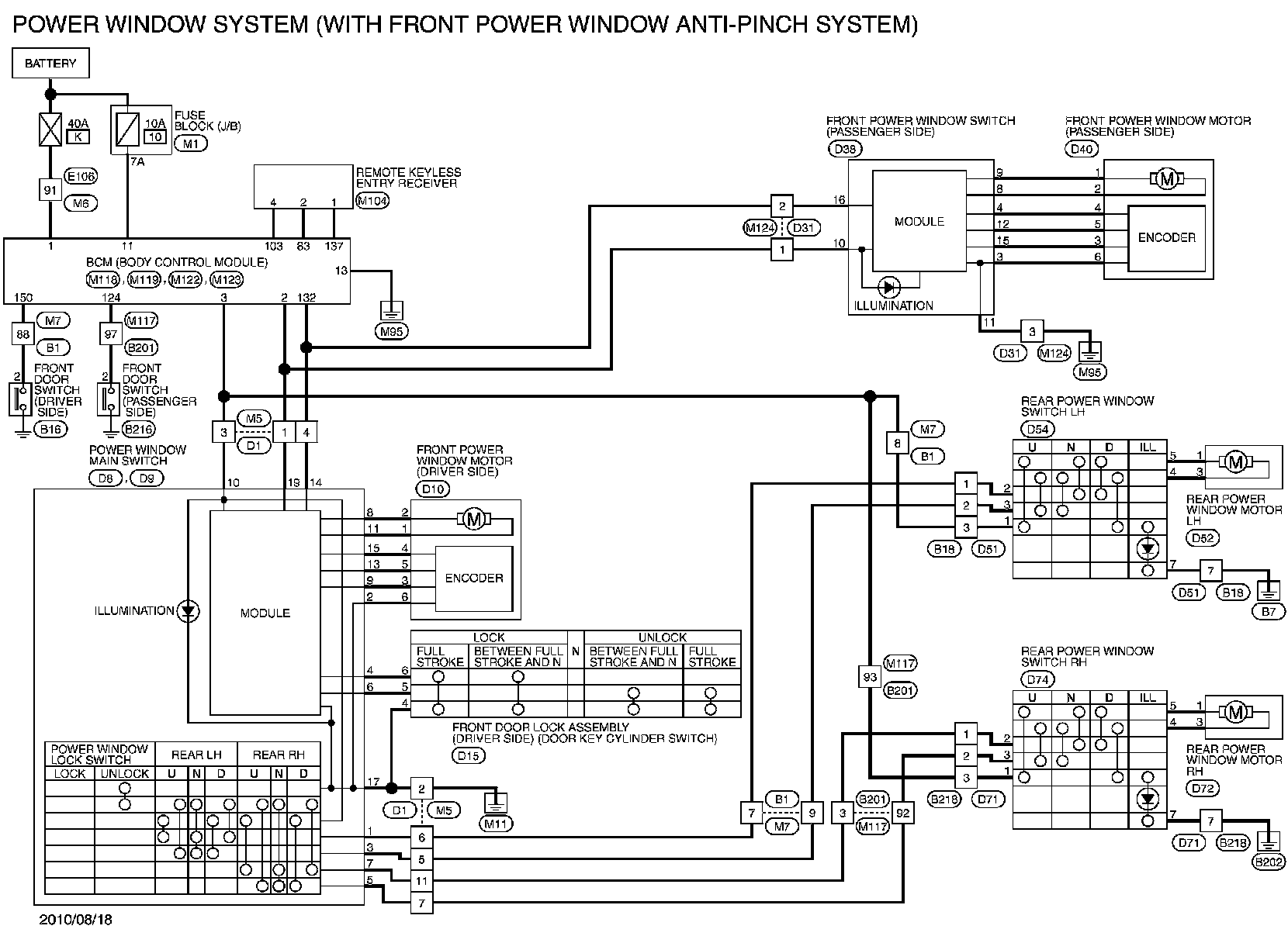

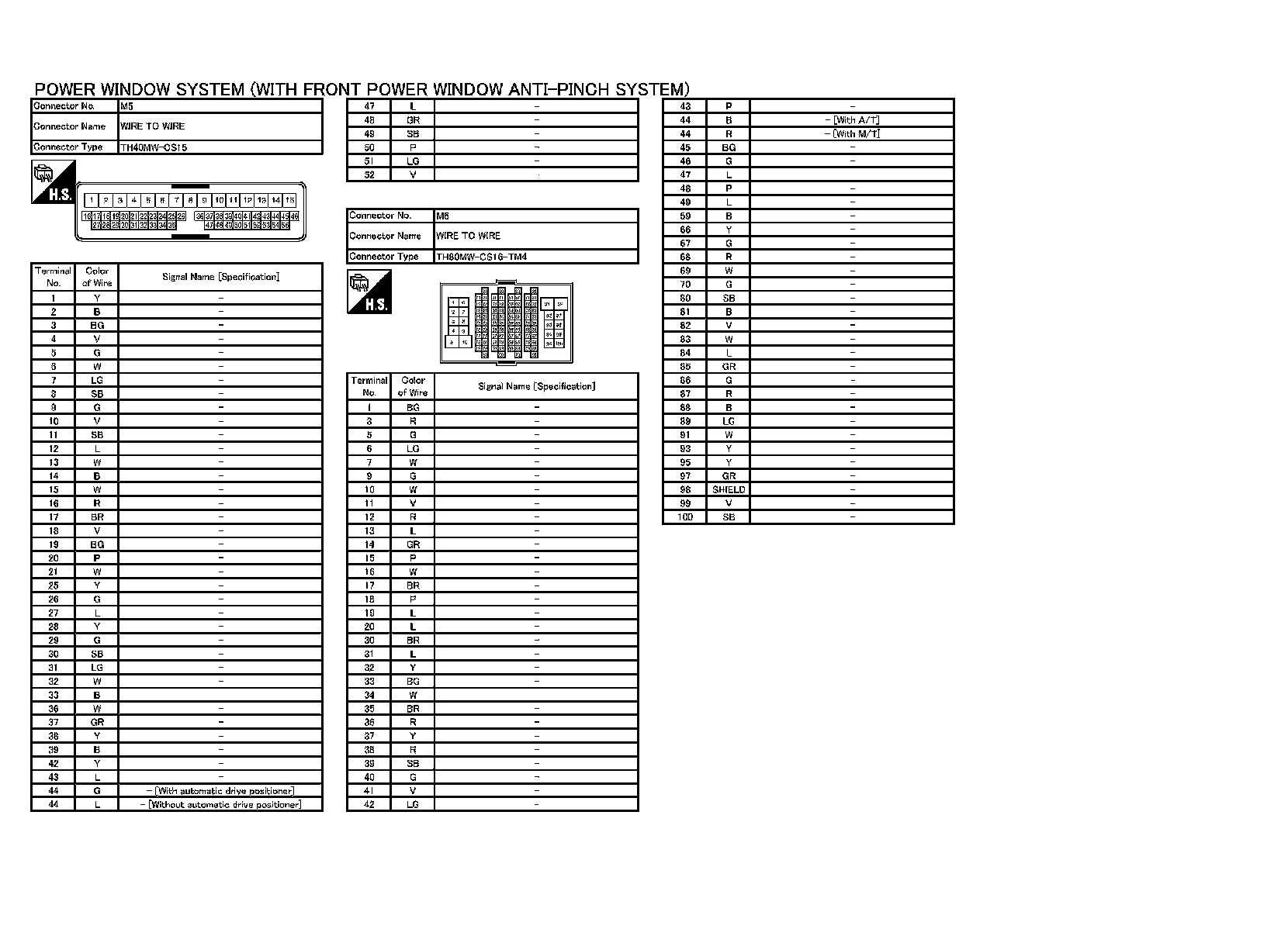

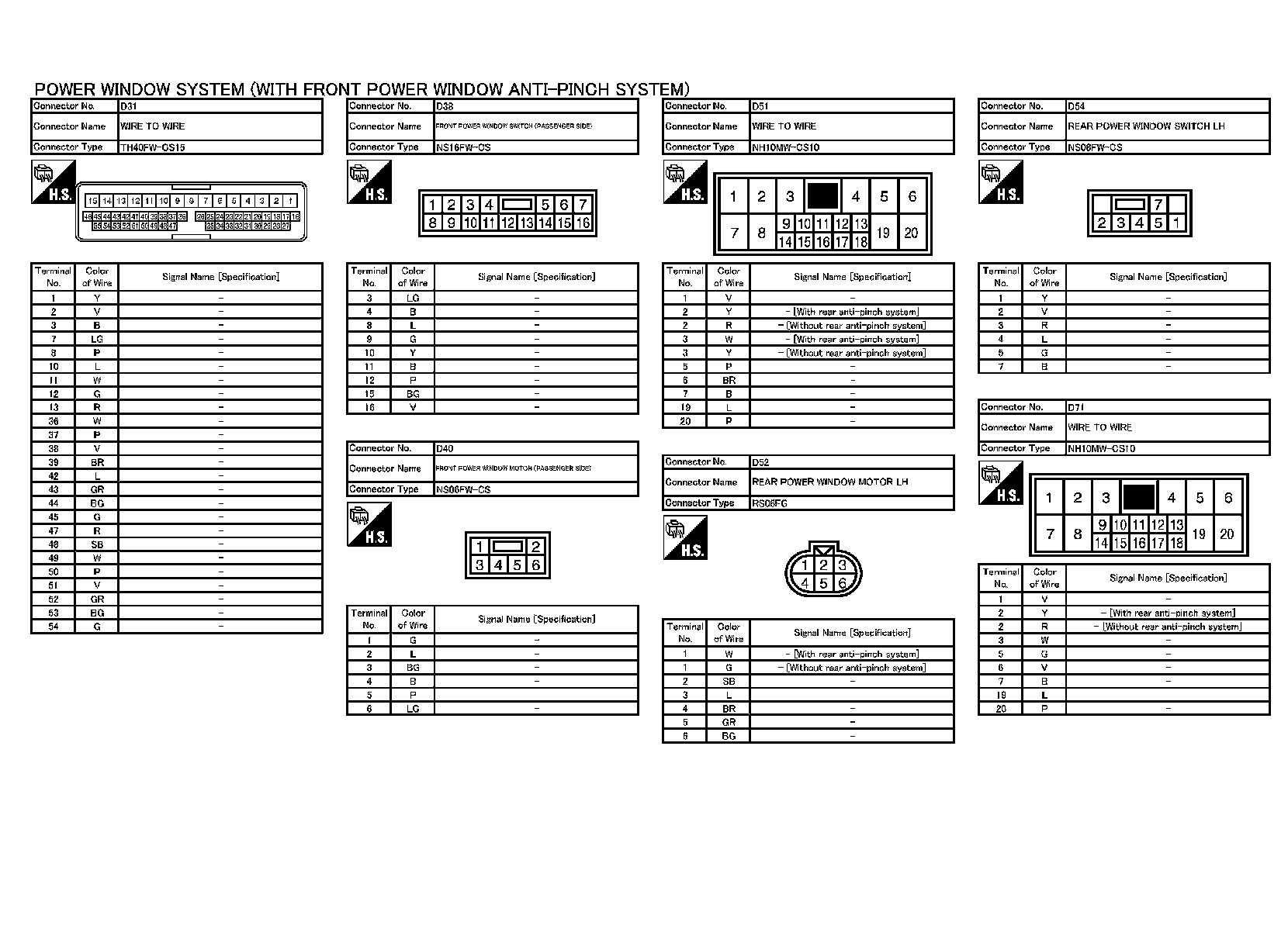

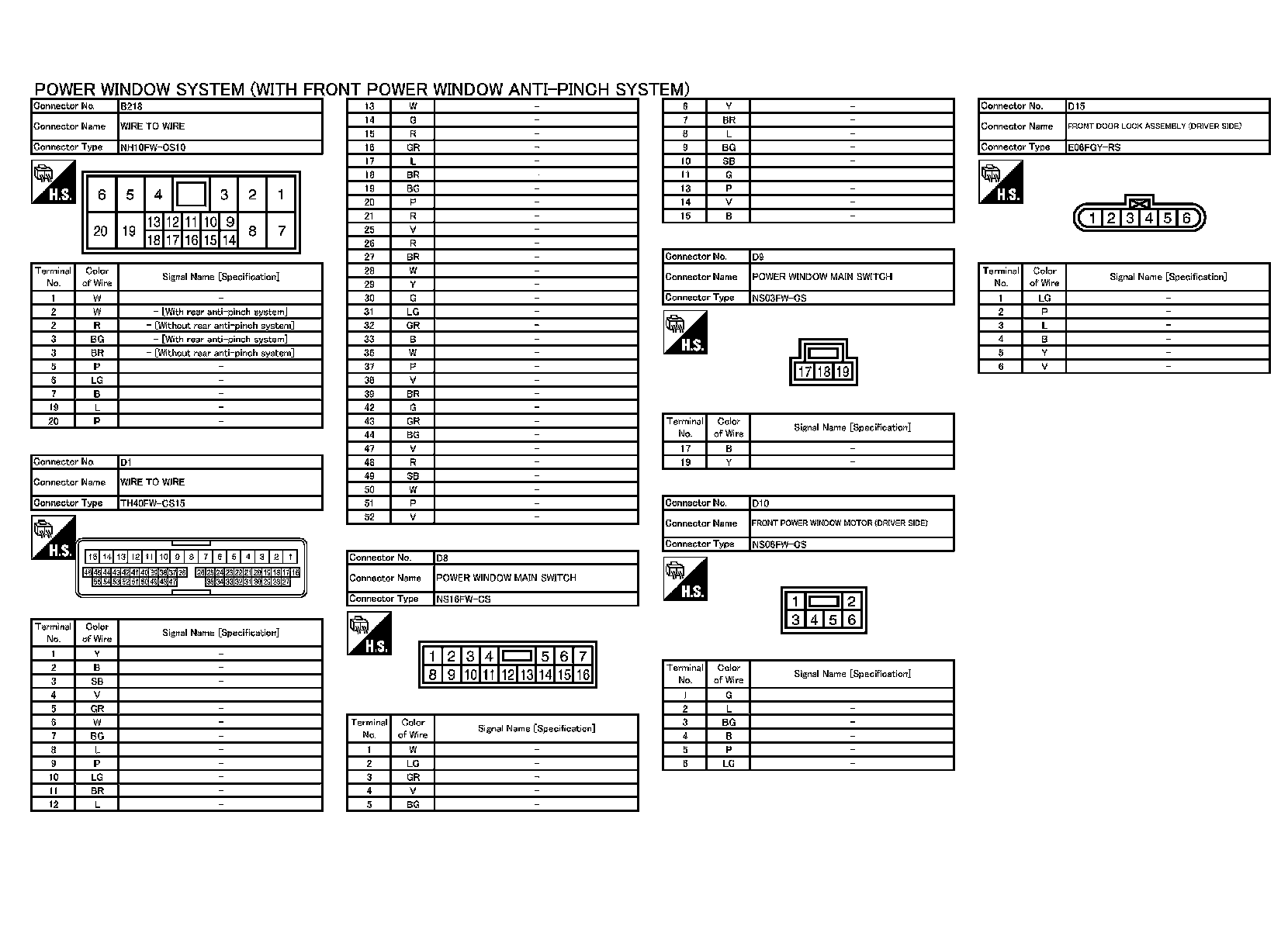

Wiring Diagram - POWER WINDOW CONTROL SYSTEM -
