Power Window Main Switch Front Window Anti-Pinch





POWER WINDOW MAIN SWITCH

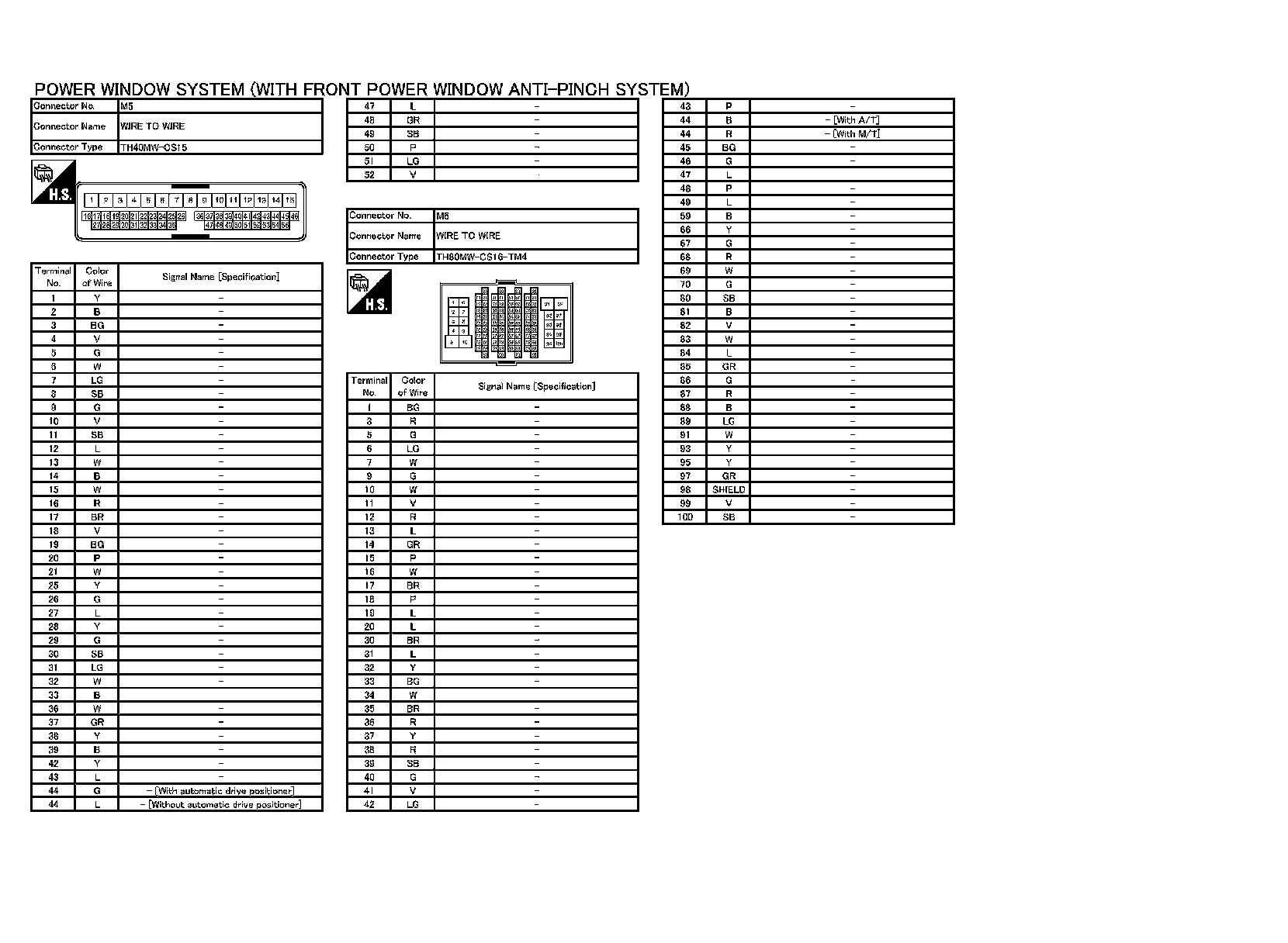

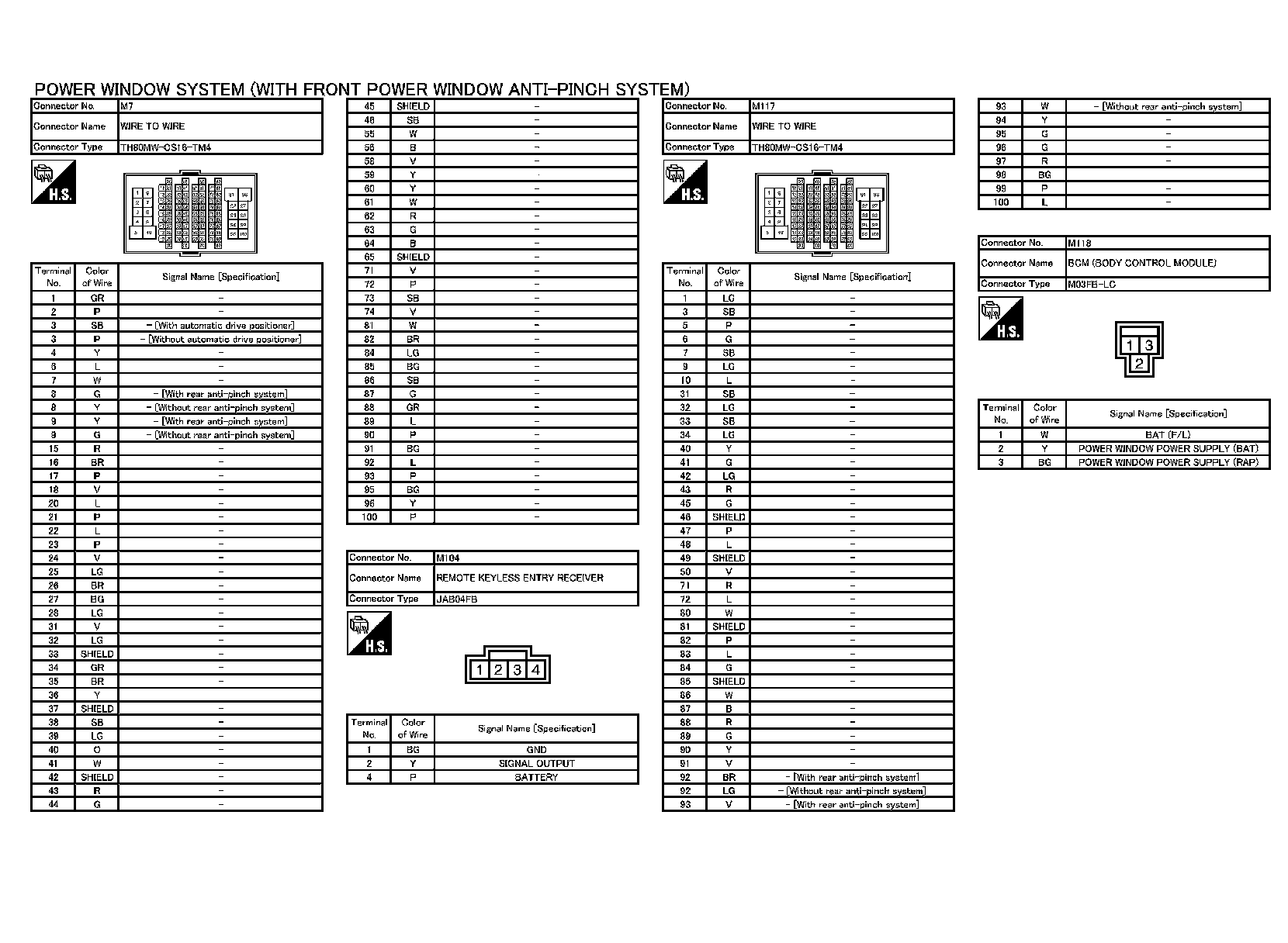

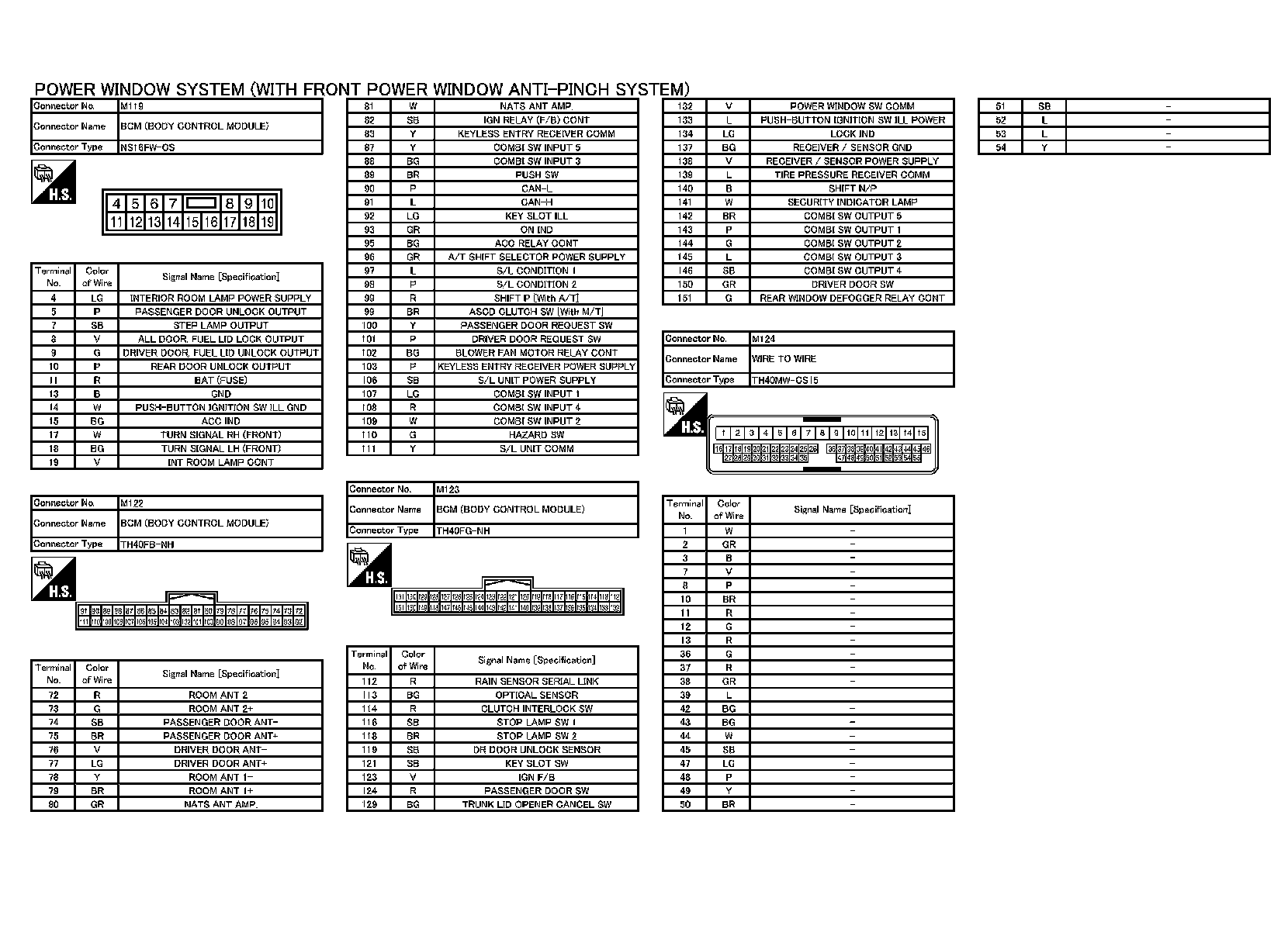

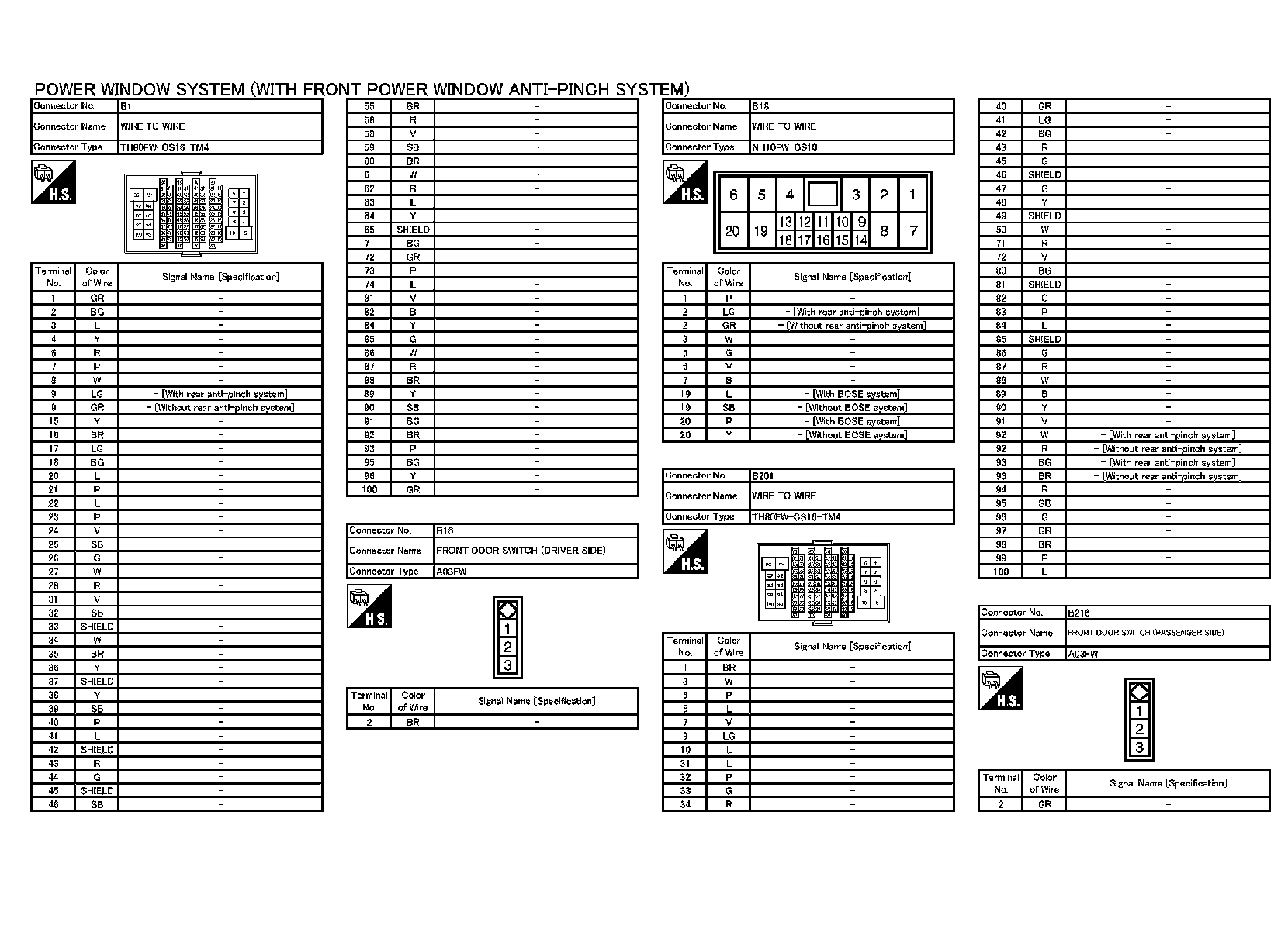

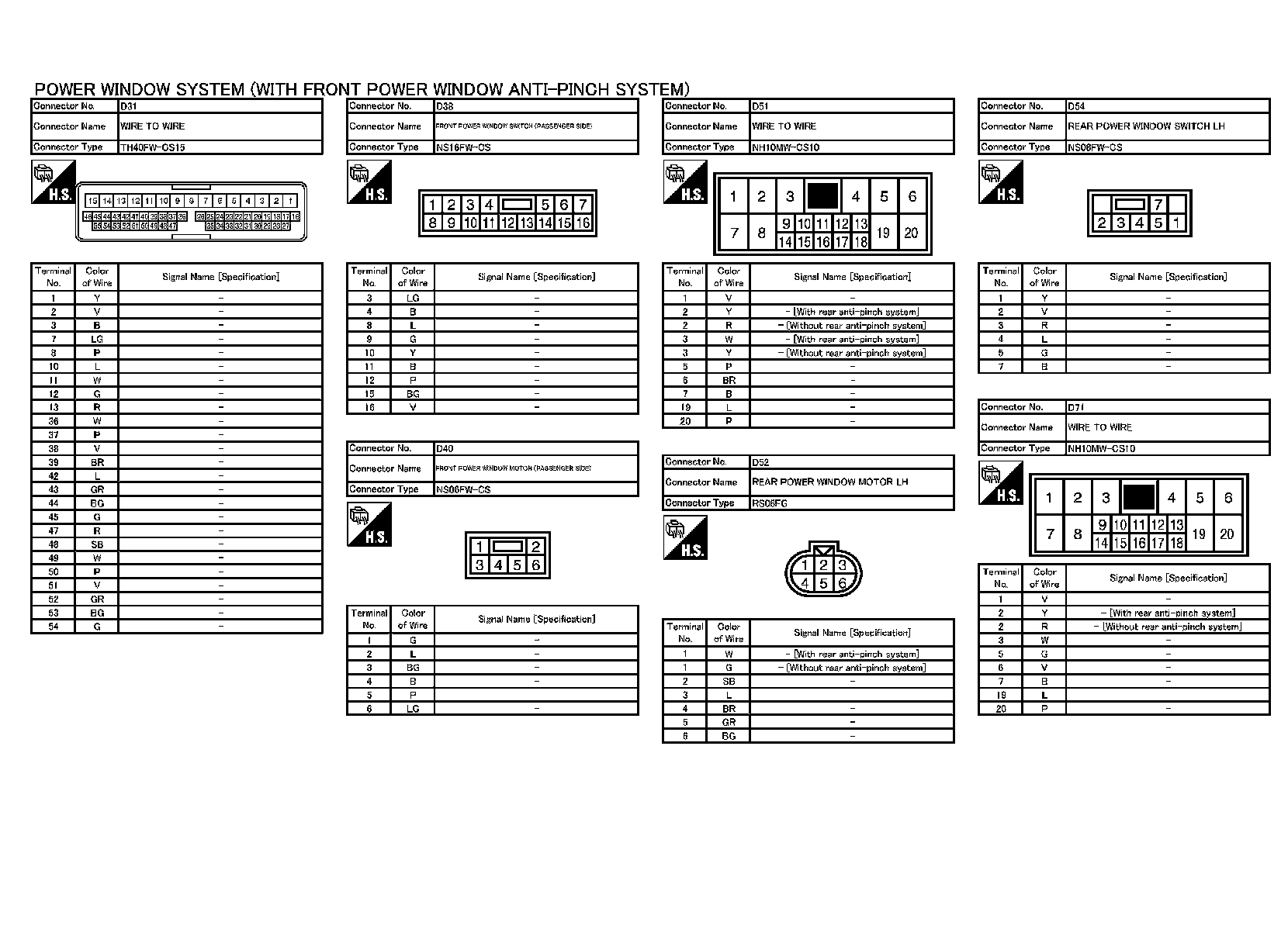

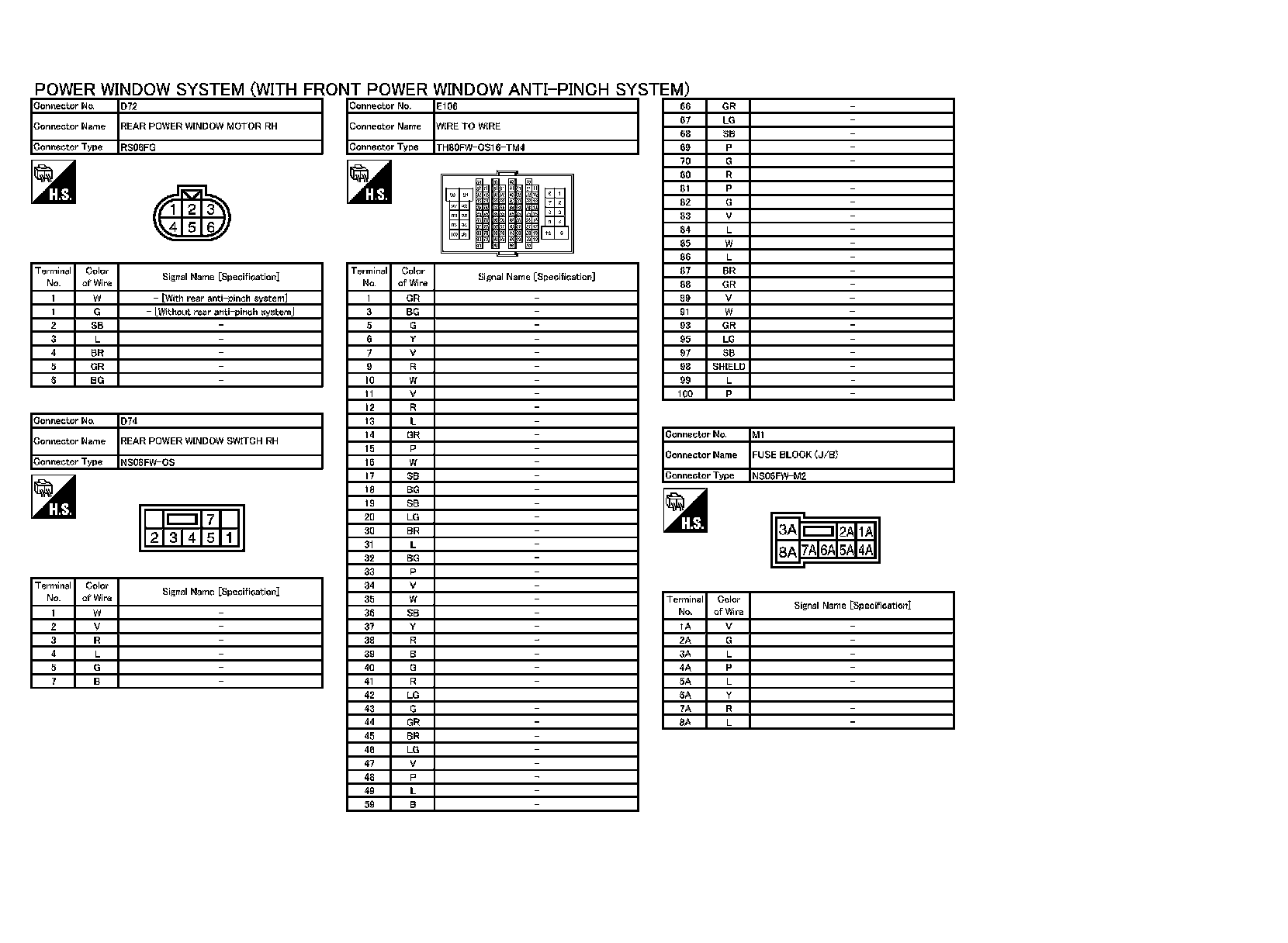

Wiring Diagram - POWER WINDOW CONTROL SYSTEM -
