Crankshaft Main Bearing

SERVICE DATA AND SPECIFICATIONS (SDS)

Main Bearing

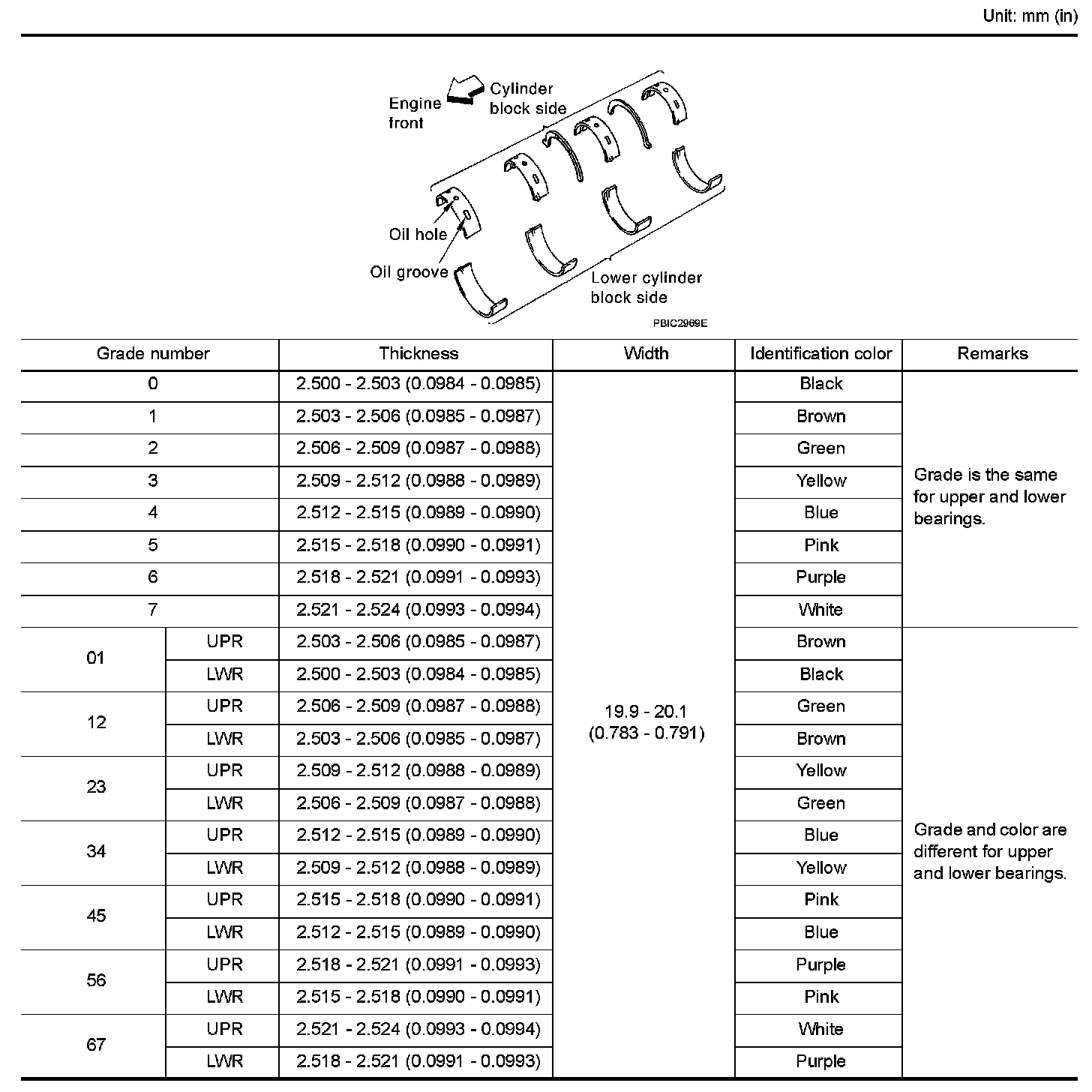

MAIN BEARING

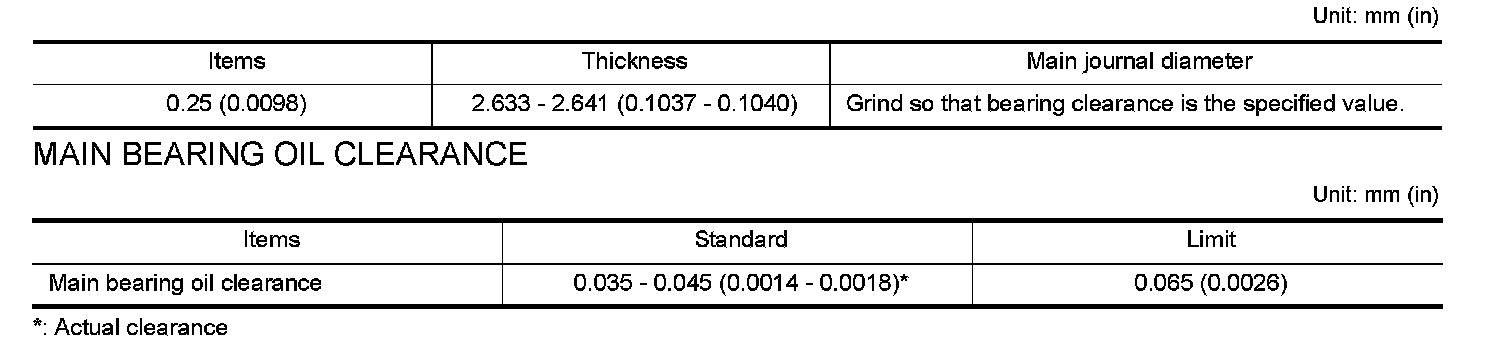

UNDERSIZE





MAIN BEARING OIL CLEARANCE

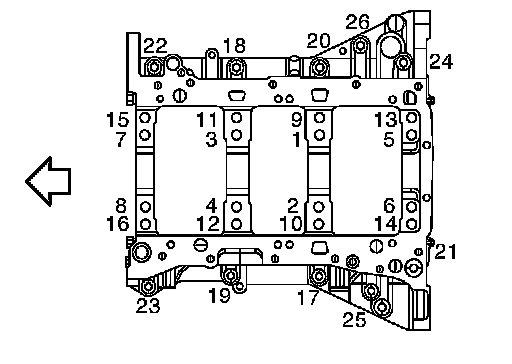

MAIN BEARING CAP





Bolts 17 to 26

1st 25.0 Nm (2.6 kg-m, 18 ft-lb)
2nd Repeat above step





Bolts 1 to 16

1st 35.3 Nm (3.6 kg-m, 26 ft-lb)
2nd 90°
