Automatic Air Conditioner Unified Meter And A/C Amp
Automatic Air Conditioner Unified Meter And A/C Amp
UNIFIED METER AND A/C AMP.
Reference Value
TERMINAL LAYOUT

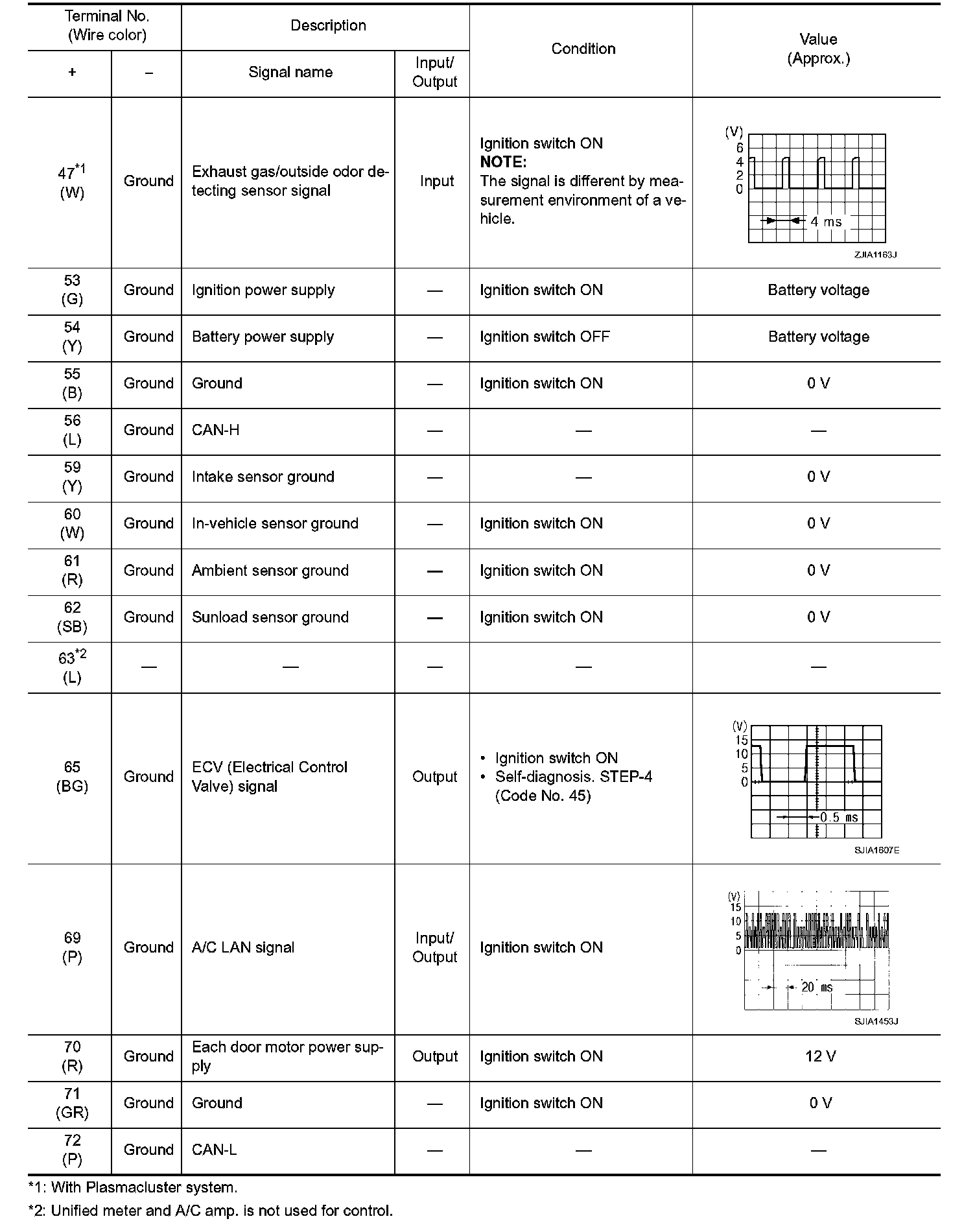

PHYSICAL VALUES
