Rear Final Drive R200V
Rear Final Drive R200V
REAR FINAL DRIVE ASSEMBLY
System Diagram

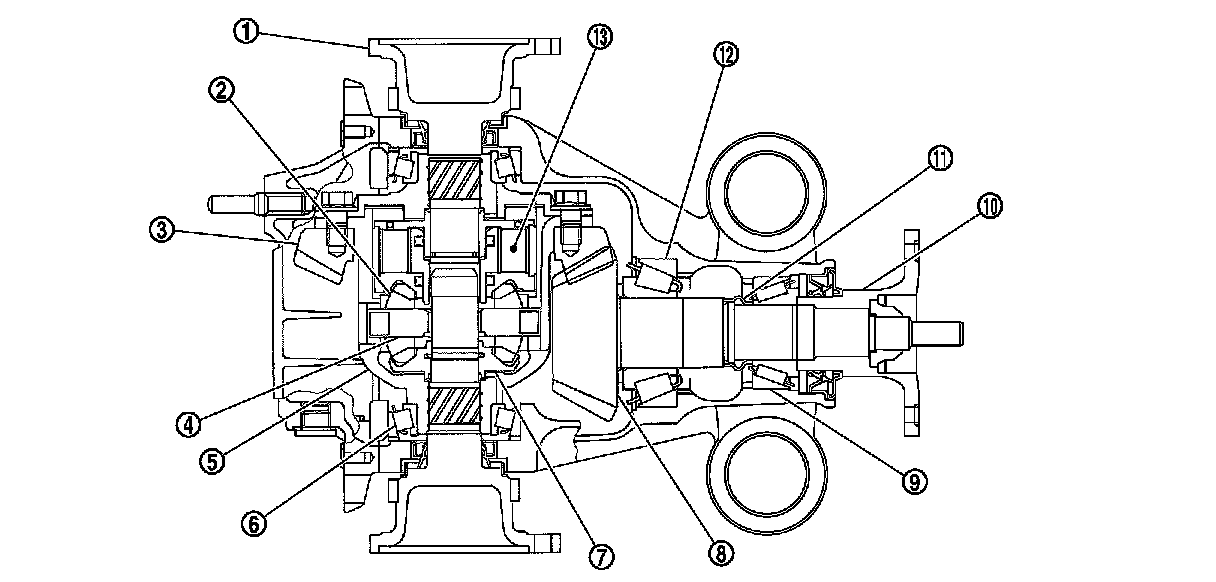

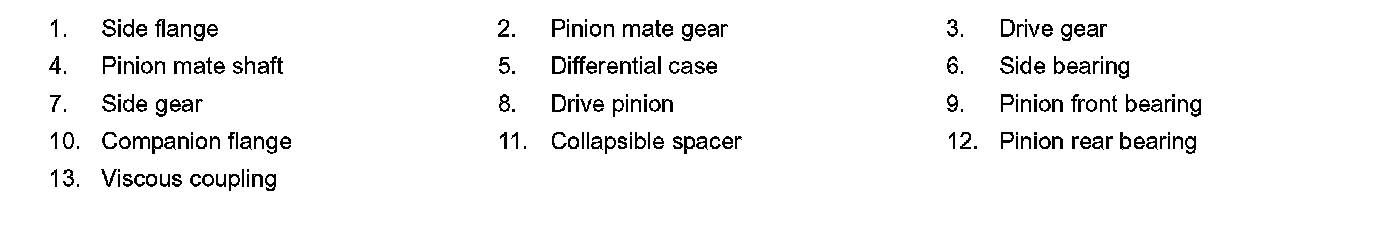

CROSS-SECTION VIEW
2WD (M/T)
2WD (A/T)
AWD
