Rear Final Drive R200

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

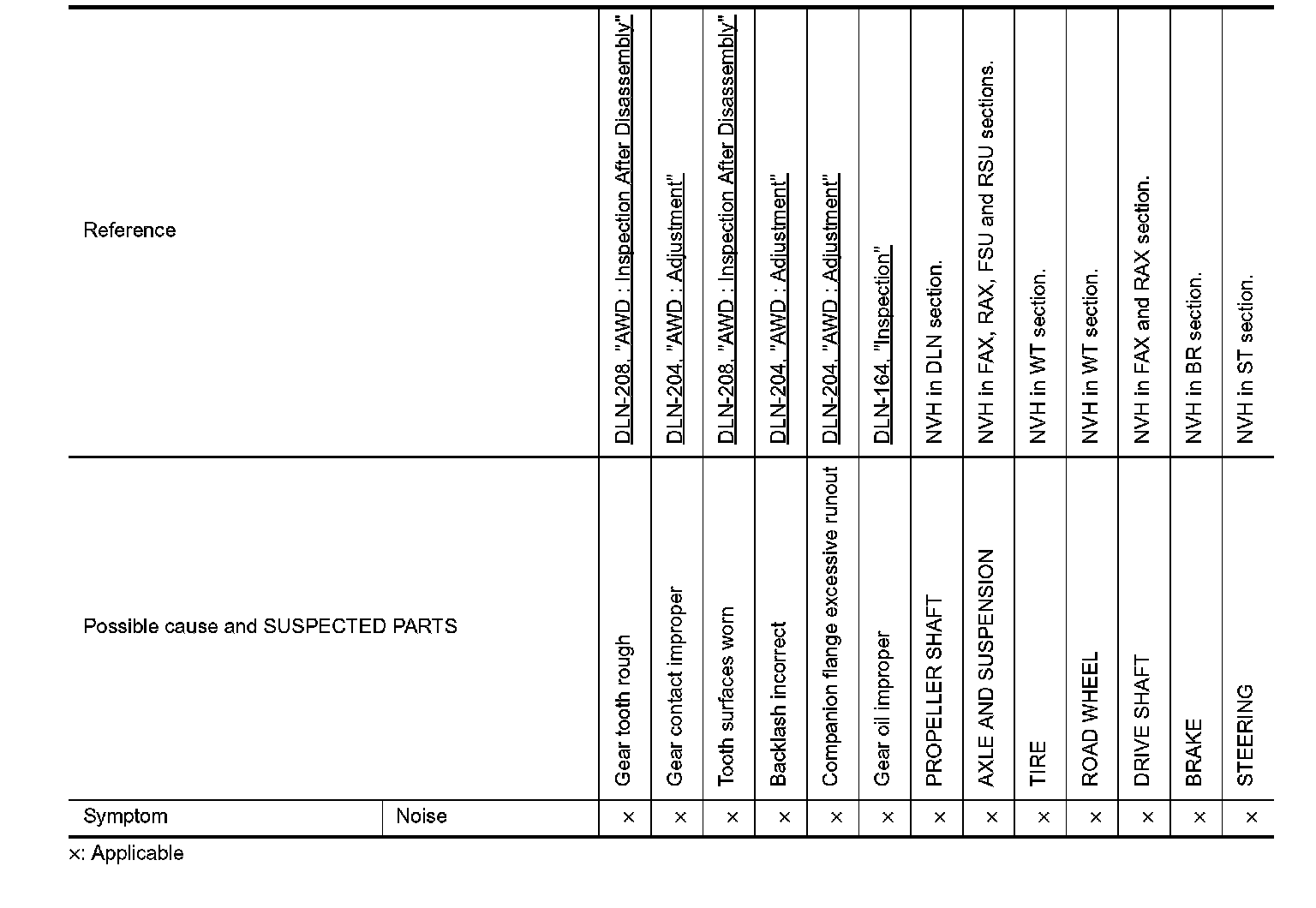

NVH Troubleshooting Chart


2WD
Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.






AWD
Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.
