Shift Indicator - A/T: Service and Repair

SELECTOR LEVER POSITION INDICATOR


Removal and Installation


REMOVAL
1. Remove console finisher assembly. Removal and Installation A/T Models.
2. Remove selector lever position indicator harness from hook of console pocket assembly.

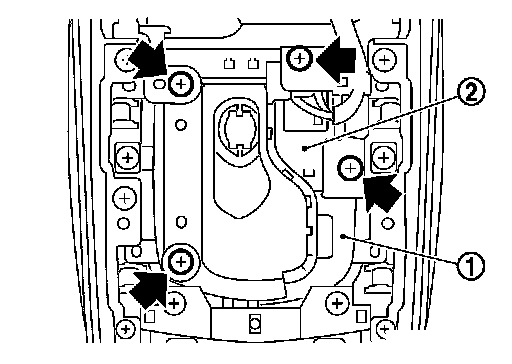

3. Remove insert finisher (1).

Black Arrow: Screw

4. Remove selector lever position indicator (2).

INSTALLATION
Install in the reverse order of removal.
